Product Details:
|
| Name: | 3 Axis CNC Drilling Milling Machine | Spindle Power: | 6kw |
|---|---|---|---|
| X Axis Speed: | 60M/min | Yand Z Axis Speed: | 40M/min |
| Highlight: | 30m/Min CNC Drilling Milling Machine,3+1 Axis CNC Drilling Milling Machine 6kw,6kw Cnc Milling Machine For Aluminium |
||

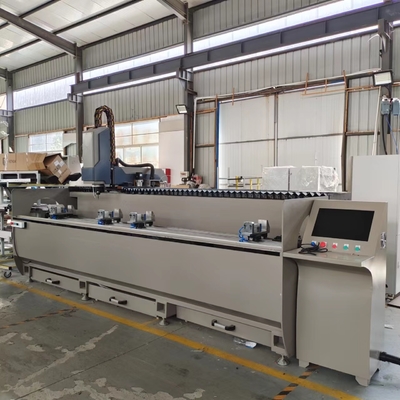

CNC 3 axis aluminum Drilling Milling machinery is used for Drilling and Milling Round holes, Square holes, Slots, Key-holes, different shape holes, Counterbore, double layer holes, Multi-layer holes. Cutting different angle profiles, Can chamfering, engraving plane surface and different shape aluminum profile.
1. Equipment Features
1. The system adopts CNC control system, which supports the import of CAD graphics.
2. Using high-precision electric spindle, high precision, good safety and high reliability.
3. The X axis adopts high-precision rack drive, and the Y and Z axis adopts high-precision screw drive, which has stable transmission and high precision.
4. Graphical programming, simple operation and high efficiency
5. The three-axis full servo motor truly realizes the high-efficiency and stable three-axis linkage.
| Product Parameter | |
| Power supply | 380V/50Hz |
| Spindle power | 6KW |
| Spindle speed | 0-18000r/min |
| Working pressure | 0.5～0.8MPa |
| X-axis running speed | 0-60 m/min |
| Y-axis running speed | 0-40 m/min |
| Z-axis running speed | 0-30 m/min |
| Processing range | 130(W)×150mm(H) |
| Dimensions | 4000×1800×2600mm |
| Weight | 1100Kg |
2.Other products

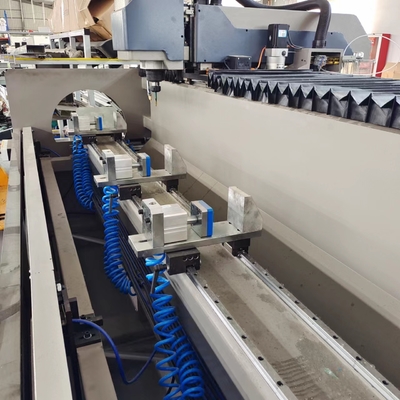

3.Mechanical details and after working samples
4. Our services
1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1.Are there training instructions?
2. How long is the warranty?
3. Why is it called 3 axes machining centre ? What are the functions?
4. What are the advantages of 3 axes?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
