Product Details:
|
| Input Power: | 4.4kw+0.75KW | Saw Blade Specification: | 500 |
|---|---|---|---|
| Cutting Angle: | 90°、 45° | Cutting Length: | 380-4200mm |
| Highlight: | 4000mm Aluminum Window And Door Making Machine,4000mm Automatic Double Head Cutting Saw,Aluminum Automatic Double Head Cutting Saw |
||

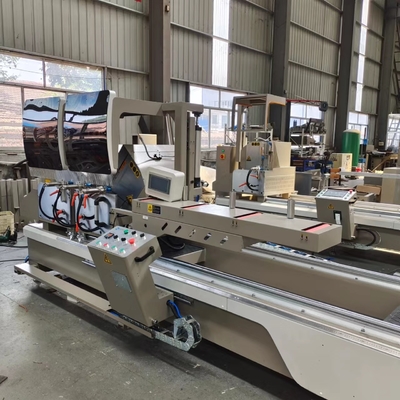

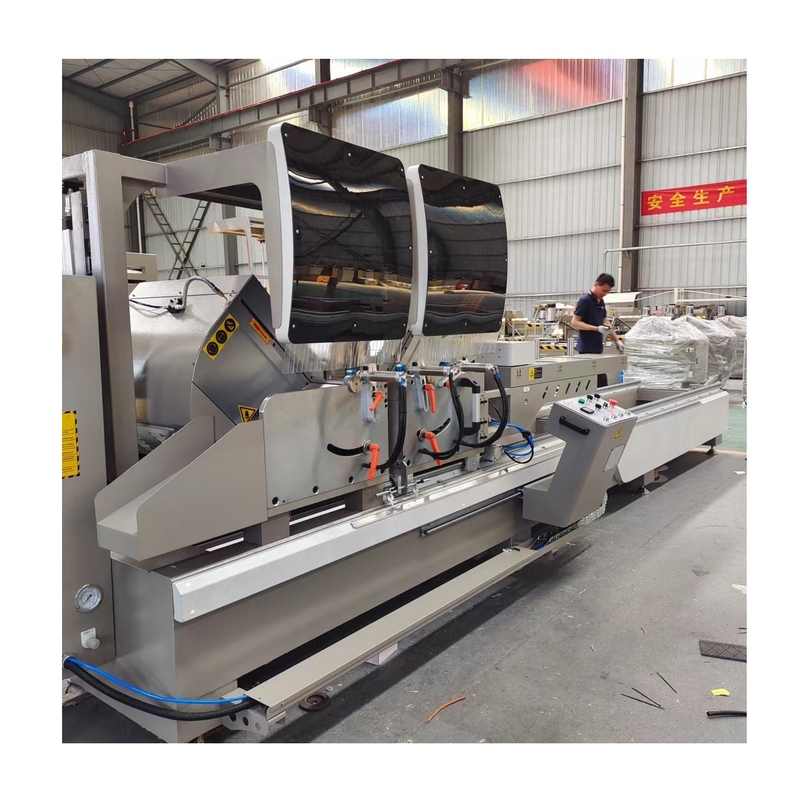

Double Mitre Cutting Saw With Digtial Display adopts 500mm diamond Saw blade. It is specially used for 45 and 90 degree cutting of aluminum alloy and UPVC profiles. Equipped with two independent cutting heads, one fixed, the other mobile, digital display can be concise and clear cutting length, with a counter to facilitate the calculation of the number of processing.
1. Feature
1. The feeding system adopts imported linear guide rail pair, which has high precision and long service life.
2. The ball screw with large pitch is used for lead motion, with high transmission and positioning accuracy and stable operation.
3. 45° and 90° cuts are available.
4.500mm diameter diamond saw blade, accurate processing and high durability.
6. Imported linear bearing motion pair, stable machining accuracy.
7. The spindle has high precision and the saw blade rotates smoothly.
8. Uniform feed, smooth movement
8. Automatically open the protective cover to ensure safe operation.
10. Bidirectional positioning and clamping, high precision and good stability.
WJM-500*4200
500mm Saw Blade Double Mitre Cutting Saw
| Product Parameter | ||
| Input power | 4.4kw+0.75KW (550,600 saw blade use 6KW+0.75KW) | |
| Power supply | 380V/50Hz (Can make according your voltage) | |
| Air pressure | 0.6~0.8MPa | |
| Motor rotary speed | 2800r/min | |
| Saw blade specification | φ500,Φ550,φ600 | |
| Cutting angle | 90°,45° | |
| Cutting length | 380~4200mm | |
| Cutting width*height |
φ500
|
150*180mm (45 degree) |
| 150*240mm (90 degree) | ||
|
Φ550 |
175*205mm (45 degree) | |
| 175*265mm (90 degree) | ||
2.Other products
3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust the angle?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
WEIKE provide machine
More important is provide
Solutions
