Product Details:
|
| Cutting Length: | 380-4200mm | Power Supply: | 380V/50Hz （Can Make According Your Voltage） |
|---|---|---|---|
| LOGO: | Standard Or Customized | Color: | Standard Or Customized |
Double Mitre Cutting Saw With Digtial Display uses a 500mm diameter diamond saw blade. Specially designed for 45 and 90 degree cutting of aluminum alloy and UPVC profiles for doors, windows and curtain walls. Equipped with two independent cutting heads, one fixed and the other mobile. Horizontal and vertical clamping cylinders ensure perfect clamping of any type of profile. Automatically open the protective cover to ensure safe operation.
1. Feature
1 Used for cutting aluminum alloy, suitable for different area, such as window door, curtain wall profiles.
2 Saw blade rotates smoothly due to high accurate main spindle
3 The feeding system adopts the imported linear guide pair,with high accuracy and stability
4 Two saw heads are adjustable and cut the profiles in 45°,90°freely.
WJM-500*4200
500mm Saw Blade Double Mitre Cutting Saw
| Product Parameter | ||
| Input power | 4.4kw+0.75KW (550,600 saw blade use 6KW+0.75KW) | |
| Power supply | 380V/50Hz (Can make according your voltage) | |
| Air pressure | 0.6~0.8MPa | |
| Motor rotary speed | 2800r/min | |
| Saw blade specification | φ500,Φ550,φ600 | |
| Cutting angle | 90°,45° | |
| Cutting length | 380~4200mm | |
| Cutting width*height |
φ500
|
150*180mm (45 degree) |
| 150*240mm (90 degree) | ||
|
Φ550 |
175*205mm (45 degree) | |
| 175*265mm (90 degree) | ||
2.Other products

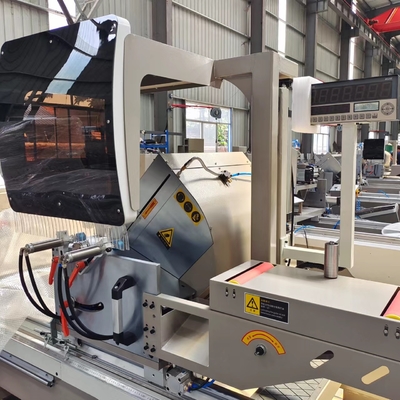

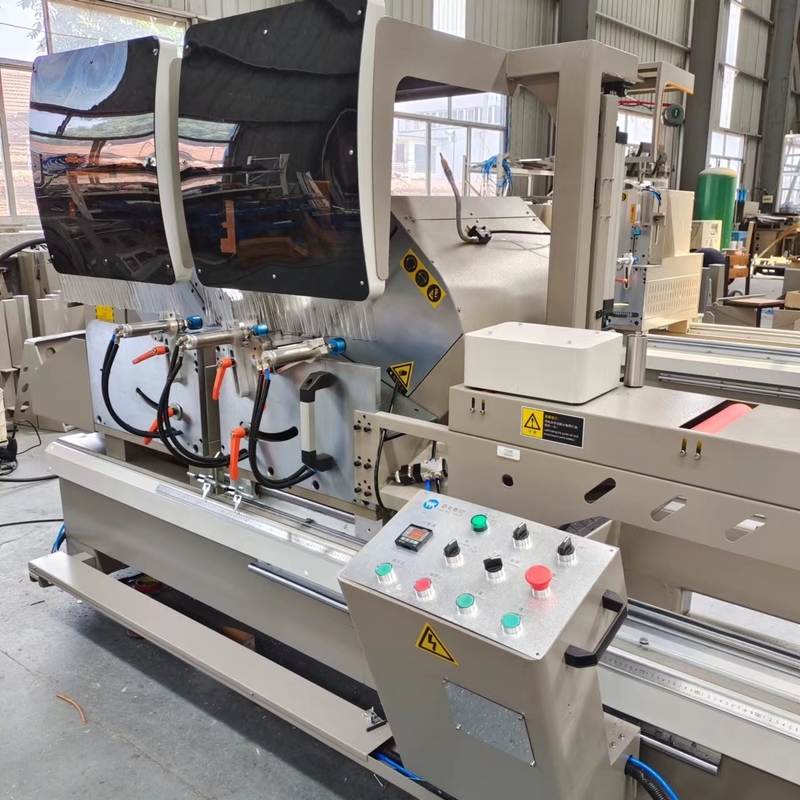

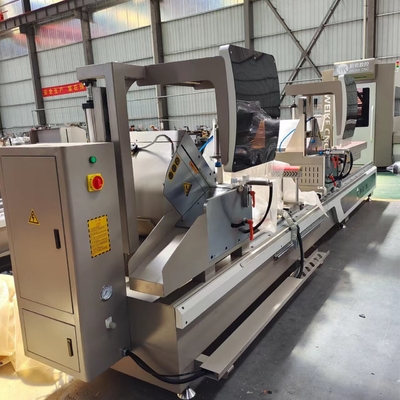

3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust the angle?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
