Product Details:
|
| Saw Blade Specification: | 500 ,550,600 | Blade Motor Power: | 2.2kw |
|---|---|---|---|
| Blades Speed: | 2800 Rpm | Maximum Cutting Capacity: | 6000mm |

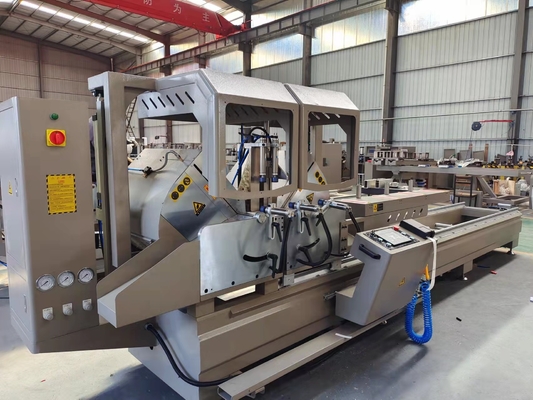

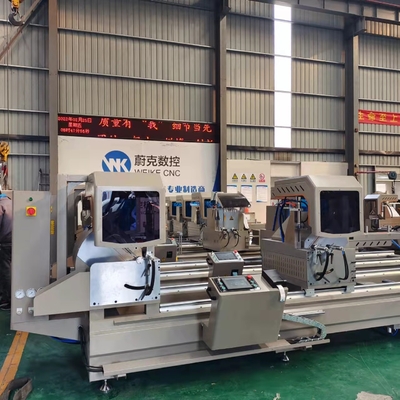

Automatic double head miter saw designed for straight and miter cuts of aluminum and UPVC. The saw operates automatically via PLC control, and cut lists can be generated by manual input on the touch screen. With label printing function, it can be used with our CNC drilling and milling center, and the processing efficiency is higher.
1. Feature
1.Mainly used for cutting industrial aluminum profiles, broken bridge aluminum doors and Windows, curtain wall materials, also can be used for PVC Cutting and blanking of profiles.
2.The machine adopts numerical control technology and can complete automatic positioning cutting of different sizes of profiles.
3. Selected high-quality diamond saw blade, outer diameter up to 500, high wire speed, high processing accuracy.
4. CNC transmission adopts high standard rack and pinion, high transmission accuracy, accurate positioning, stable work.
WJM-CNC-500*4200
500mm Saw Blade CNC Double Head Saw
| Product Parameter | ||
| Input power | 4.4kw+0.75KW (550,600 saw blade use 6KW+0.75KW) | |
| Power supply | 380V/50Hz (Can make according your voltage) | |
| Air pressure | 0.6~0.8MPa | |
| Motor rotary speed | 2800r/min | |
| Saw blade specification | φ500,Φ550,φ600 | |
| Cutting angle | 90°,45° | |
| Cutting length | 290~6000mm | |
| Cutting width*height |
φ500
|
150*180mm (45 degree) |
| 150*240mm (90 degree) | ||
|
Φ550 |
175*205mm (45 degree) | |
| 175*265mm (90 degree) | ||
2.Other products
3.Mechanical details
4. Our services
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
1. What are the functions?How to adjust the angle?
2. What are the advantages?
3. Are there training instructions?
4. How long is the warranty?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
