Aluminum Door And Window Machines Aluminum Door And Window Drilling Hole Machine For Sale

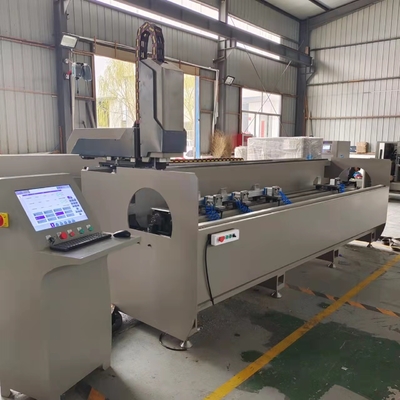

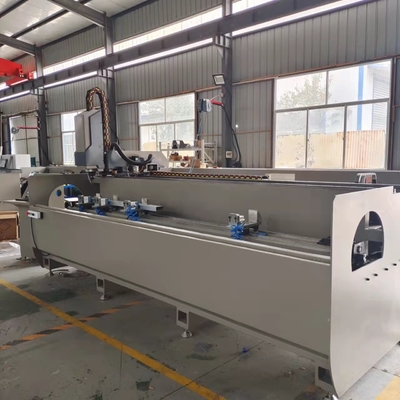

           Aluminum Profile 3 Axis CNC Drilling Milling Machine

                    Suitable Aluminum Length: within 3000mm

            Function: Drilling Milling Holes on Aluminum Material

WSZ-CNC Series is a fully automated processing center with 3 interpolating axes for the machining

of aluminium profiles with a cross section of 130×150 mm (If worktable no need turn, section will be large)

A 6kw, water-cooled electrospindle allows the production of custom machined and milled elements

Highlights
• Multi-piece pendulare ( 2 working areas, 4 pieces) machining
• Working area X axes up to 6000 mm (Optiom: Can choose 5500mm 3000mm 3200mm etc)

1. Main Feature

● It is suitable for the processing of round holes, slot holes, key holes, special-shaped holes of industrialaluminum alloy profiles, doors and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and other processes.

● The main shaft adopts an air-cooled electric main shaft with a power of 6KW and a rotation speed of 6000 to 18000 revolutions/min. It has high precision, good safety and high reliability.

● The control system is equipped with professional graphics library and profile library, which is easy to operate and efficient.

● The worktable is turned 180°, -90°~0°~+90°, the profile can be processed on three sides at one time. When processing deep through holes (shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality. .

2.  Samples Holes After Working:

Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped

holes for windows and doors, curtain wall alloy profiles

Milling all type holes on aluminium profile

3. Parameter

●X axis Journey: 3200mm

●Y axis Journey: 400mm

●Z Axis Journey: 300mm

● X axis Speed: 60M/min

● Y/Z axis Speed: 40M/min

● Overall Size: 4000*2000*2600mm

4. Machine Details

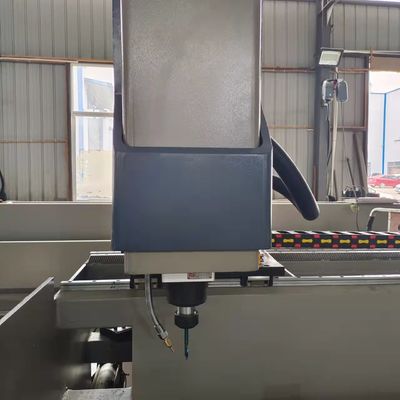

4.1 Main Spindle: 6KW electric spindle

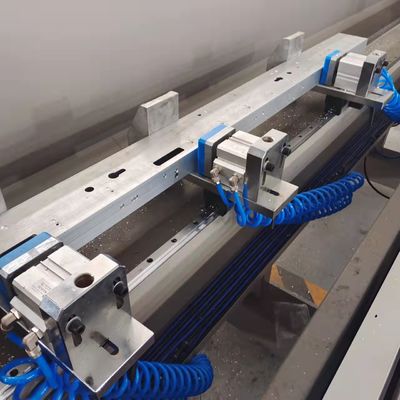

4.2Fixture (Clamps)

4.3 Control Panel

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
