Product Details:
|
| Spindle Power: | 6kw | Spindle Speed: | 0-18000r/min |
|---|---|---|---|
| Processing Range: | 130(W)×150mm(H) | Dimensions: | 4000×1800×2600mm |
| Highlight: | CNC Drilling Milling Machine 6kw,380V CNC Drilling Milling Machine,6kw Upvc Door Window Manufacturing Machine |
||
CNC 3 axis aluminum Drilling Milling machinery is used for Drilling and Milling Round holes, Square holes, Slots, Key-holes, different shape holes, Counterbore, double layer holes, Multi-layer holes. Cutting different angle profiles, Can chamfering, engraving plane surface and different shape aluminum profile.
1. Equipment Features
1. Adopts standard three axis CNC System, easy operation.
2. Adopts 6kw Electric spindle with high precision, good security, high stability.
3. X,Y and Z Axis Adopts high precision ball bearing conveyor, runs stable.
4. ISO International Standard G code programming, easy to operate.
5.Workbench turn 180°, 90°, 0° ~90°, profiles a clamping can realize three faces processing.
| Product Parameter | |
| Power supply | 380V/50Hz |
| Spindle power | 6KW |
| Spindle speed | 0-18000r/min |
| Working pressure | 0.5～0.8MPa |
| X-axis running speed | 0-60 m/min |
| Y-axis running speed | 0-40 m/min |
| Z-axis running speed | 0-30 m/min |
| Processing range | 130(W)×150mm(H) |
| Dimensions | 4000×1800×2600mm |
| Weight | 1100Kg |
2.Other products

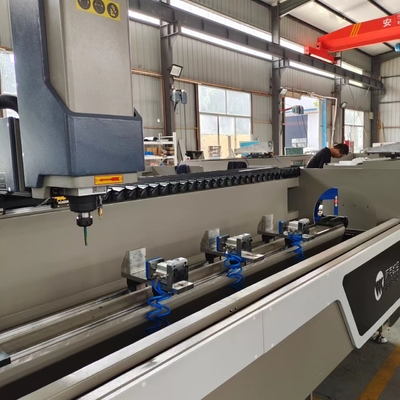

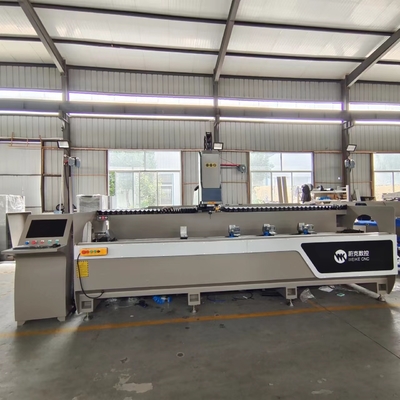

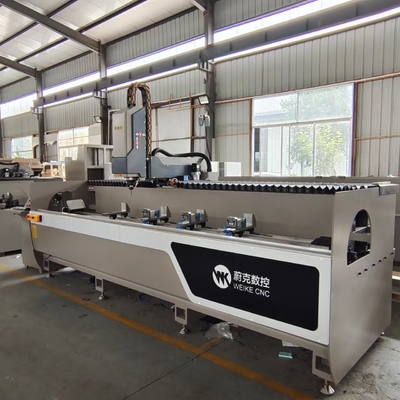

3.Mechanical details and after working samples
4. Our services
1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1.Are there training instructions?
2. How long is the warranty?
3. Why is it called 3 axes machining centre ? What are the functions?
4. What are the advantages of 3 axes?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
