Product Details:
|
| Spindle Power: | 6kw | Spindle Speed: | 0-18000r/min |
|---|---|---|---|
| X-axis Running Speed: | 0-60 M/min | Y-axis Running Speed: | 0-40 M/min |
| Highlight: | 0.5MPa 3 Axis UPVC Windows Machine,3 Axis UPVC Windows Machine 3200mm,3200mm Aluminium Cnc Drilling And Milling Machine |
||

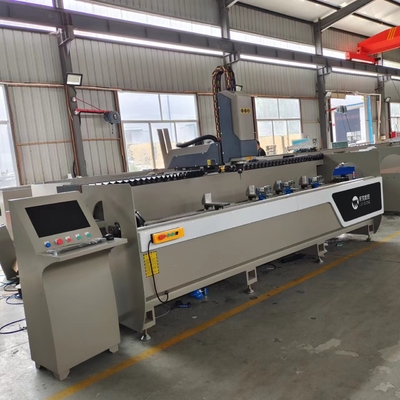

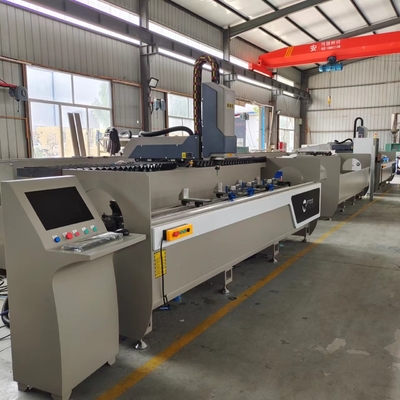

The high-speed drilling and milling center WSZH-CNC-3200 is suitable for aluminum doors and windows and curtain wall installation hole, water tank, and the keyhole shaped hole, tapping and end milling. Using the German PA control system, the intelligent CNC system and the simple and intuitive human-computer interface make the operation more convenient and quick. The rotary table can be converted between three positions at -90, 0 and +90 degrees, and the milling process can be accomplished by one Clamping.
1. Equipment Features
1.The CNC drilling machine is designed for processing round holes, slots, keyhole etc on aluminum profile, windowdoor and curtain wall industry, it is also suitable for processing milling, chamfering,engraving plane surface and other procedure.
2.Linear guide kinematic pair, ball screw, gear rack and servo motor be adopted in this machine, results high stable and accuracy for locating and processing.

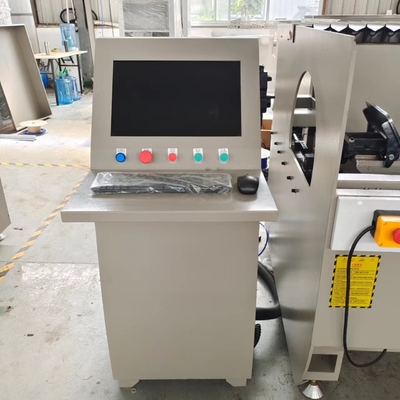

3. Adopts whole set of CNC system, Interface is simple and intuitive, makes the operation more convenient.
| Product Parameter | |
| Power supply | 380V/50Hz |
| Spindle power | 6KW |
| Spindle speed | 0-18000r/min |
| Working pressure | 0.5～0.8MPa |
| X-axis running speed | 0-60 m/min |
| Y-axis running speed | 0-40 m/min |
| Z-axis running speed | 0-30 m/min |
| Processing range | 130(W)×150mm(H) |
| Dimensions | 4000×1800×2600mm |
| Weight | 1100Kg |
2.Other products
3.Mechanical details and after working samples
4. Our services
1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1.Are there training instructions?
2. How long is the warranty?
3. Why is it called 3 axes machining centre ? What are the functions?
4. What are the advantages of 3 axes?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
