Product Details:
|
| Spindle Power: | 6kw | Work Table Position: | 90°, 0°, +90° |
|---|---|---|---|
| Cutter Size: | Φ5-φ8 | Cutter Cooling: | Auto Spraying And Cooling |
| Highlight: | 6kw Cnc Copy Router Machine,Cnc Copy Router Machine 2.6m,2.6m Aluminium Door Window Manufacturing Machine |
||

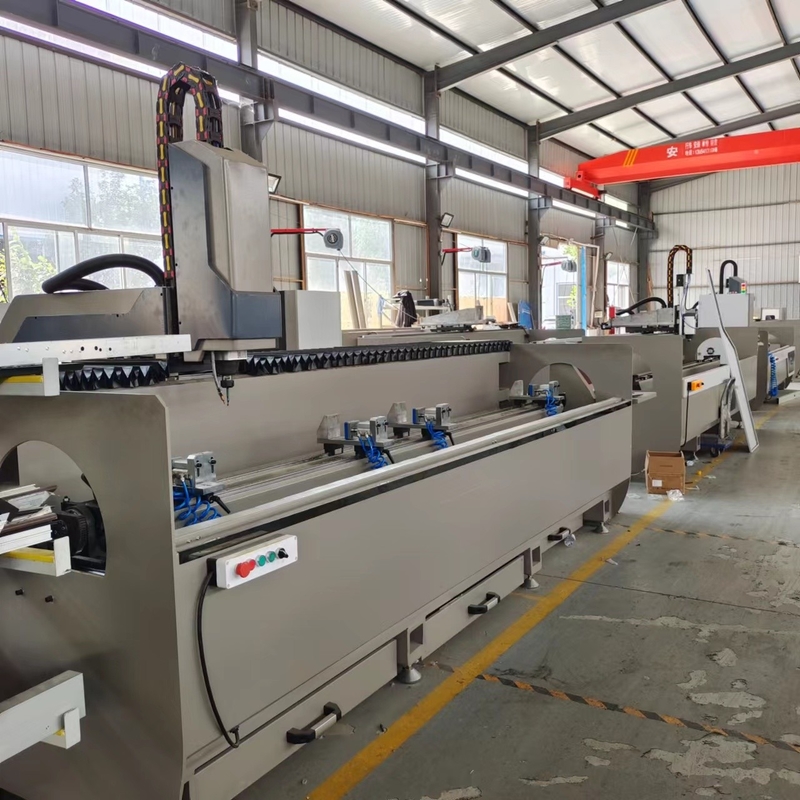

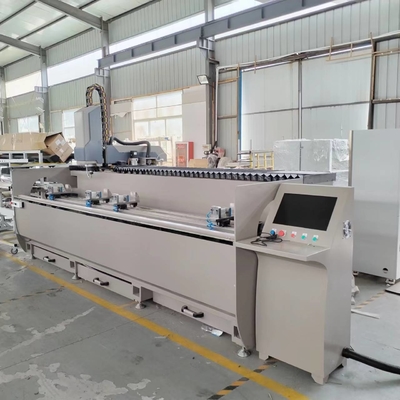

The high-speed drilling and milling center WSZH-CNC-3200 is suitable for aluminum doors and windows and curtain wall installation hole, water tank, and the keyhole shaped hole, tapping and end milling. Using the German PA control system, the intelligent CNC system and the simple and intuitive human-computer interface make the operation more convenient and quick. The rotary table can be converted between three positions at -90, 0 and +90 degrees, and the milling process can be accomplished by one Clamping.
1. Equipment Features
1.The CNC drilling machine is suitable for processing varieties of holes and slots for diversified aluminum doors and windows.
2. It adopts high-precision linear guide pair, ball screw, pinion and rack and imported servo motor to ensure the machine runs steadily with high precision.
3. It adopts high-speed motorized spindle to ensure the machine runs steadily with lower noise and better cutting ability.
4.It adopts vegetable oil microcrystalline cooling system to improve the tool life without poison and pollution.
5.The rotary workbench can change the position among -90°,0° and +90° arbitrarily, one time clamping can finish milling for three sides.
6.It adopts PA control system, intelligent CNC control system and straightforward human-computer interface make the operation much more convenient and efficient.
7.Application:Aluminum Architecture Material/PVC Window Door Profiles /Curtain Wall and Facade Lock Hardware etc.
| Product Parameter | |
| Power supply | 380V/50Hz |
| Spindle power | 6KW |
| Spindle speed | 0-18000r/min |
| Working pressure | 0.5～0.8MPa |
| X-axis running speed | 0-60 m/min |
| Y-axis running speed | 0-40 m/min |
| Z-axis running speed | 0-30 m/min |
| Processing range | 130(W)×150mm(H) |
| Dimensions | 4000×1800×2600mm |
| Weight | 1100Kg |
2.Other products

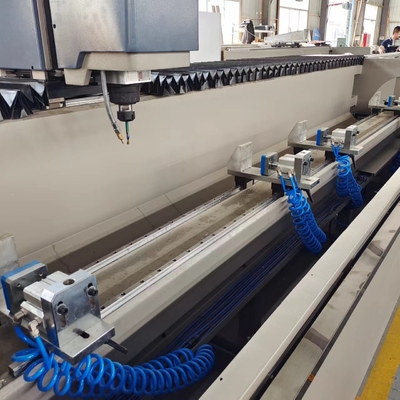

3.Mechanical details and after working samples
4. Our services
1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1.Are there training instructions?
2. How long is the warranty?
3. Why is it called 3 axes machining centre ? What are the functions?
4. What are the advantages of 3 axes?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
