Product Details:
|
| Work Table Position: | -90°, 0°, +90° | Applicable Material: | PVC, UPVC, Aluminum |
|---|---|---|---|
| Handle Type: | ER25*8mm | Power Supply: | 380V/50Hz （Can Make According Your Voltage） |

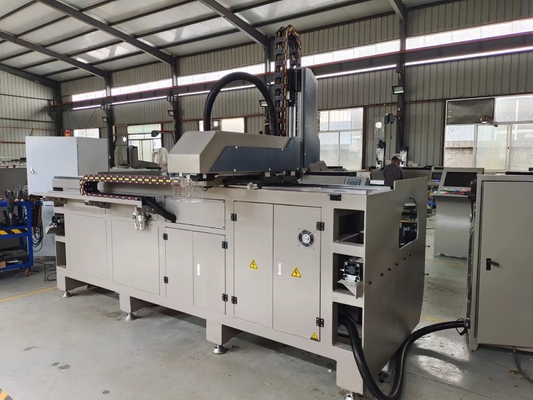

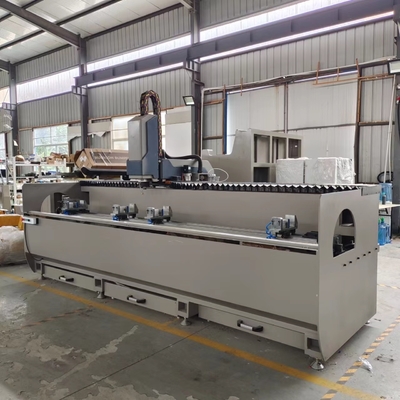

The high-speed drilling and milling center WSZH-CNC-2500 is is mainly used to process all kinds of holes and slots for aluminum curtain wall profiles, aluminum door window profiles, industrial aluminum profiles and upvc door window profiles.
1. Equipment Features
1. Standard three axis CNC system, easy to operate.
2. High precision motorized spindle, good safety, high stability.
3. X, Y, Z axis adopts high precision ball bearing conveying, running smoothly.
4. ISO international standard G code programming, simple operation.
| Product Parameter | |
| Power supply | 380V/50Hz |
| Spindle power | 6KW |
| Spindle speed | 0-18000r/min |
| Working pressure | 0.5～0.8MPa |
| X-axis running speed | 0-60 m/min |
| Y-axis running speed | 0-40 m/min |
| Z-axis running speed | 0-30 m/min |
| Processing range | 130(W)×150mm(H) |
| Dimensions | 3000×1600×2200mm |
| Weight | 1100Kg |
2.Other products

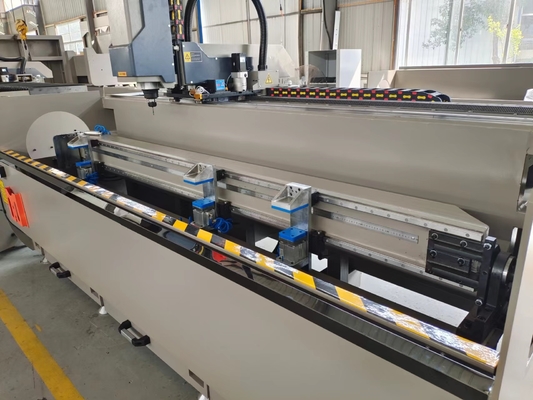

3.Mechanical details and after working samples
4. Our services
1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1.Are there training instructions?
2. How long is the warranty?
3. Why is it called 3 axes machining centre ? What are the functions?
4. What are the advantages of 3 axes?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
