Product Details:
|
| Main Moter Power: | 2.2KW | Saw Blade Diameter: | 600mm |
|---|---|---|---|
| Cutting Angle: | 45 Degree And 90 Degree | English Manual: | Provid |
| Video Training: | Provid | Online Training: | Provid |
| Highlight: | ISO Computerized Double Head Mitre Saw,iso Double Head Mitre Saw Aluminum,2.2KW Aluminum Double Head Cutting Saw |
||

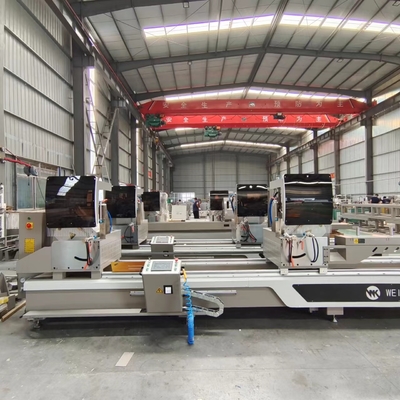

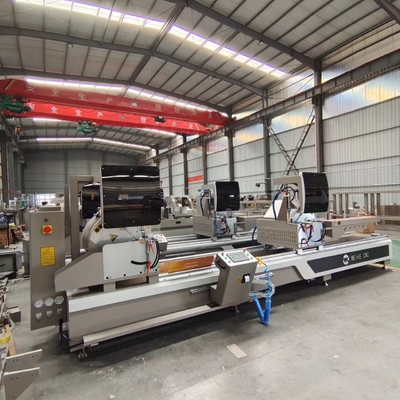

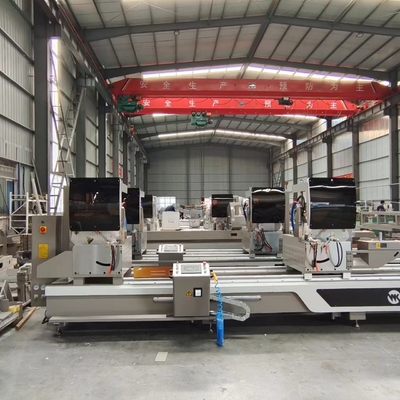

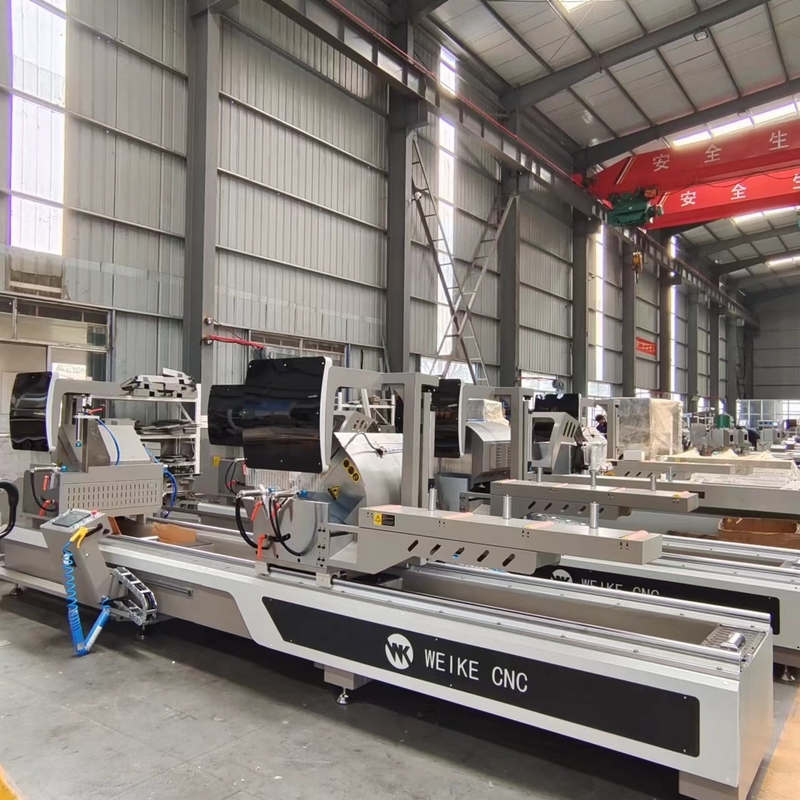

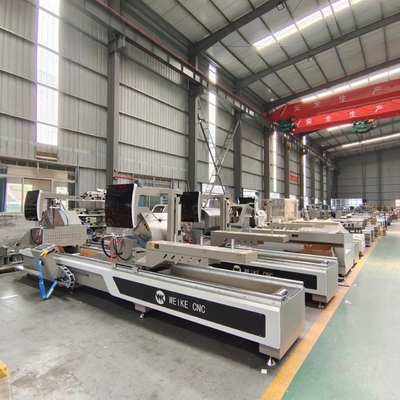

Front blade sawing machine
● Used for reducing aluminum alloy doorways and windows, curtain wall profiles.
● It adopts numerical manipulate tool to appropriately show the duration of the reduce profile.
● The excessive-precision spindle makes the noticed blade rotate stably.
● The gas-liquid damping cylinder realizes uniform feed pace law and solid movement.
● The computerized lifting protecting cowl makes paintings secure and convenient.
● The feed device adopts imported linear manual pair, which has excessive precision and lengthy life.
2. Technical Parameter
● Air pressure: 0.6~0.8MPa
● Motor rotary speed: 2800r/min
● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)
● Power supply: 380V/50Hz (Can make according your voltage)
● Saw blade specification: φ500 / φ600
● Cutting angle: 90°45°
● Cutting length: 290~6000mm
● Overall dimension: 5800 x 1500 x 1700mm
● Weight about: 1650kg
Option:
| 1 | Saw Blade: 500/550/600mm |
| 2 | Printer |
| 3 | Connect with windows design software |
| 4 | Main Spindle and Motor Option |
| 5 | Cutting length Option |
| 6 | Have different machine frame |
CNC Control, cutting length, cutting angle control are all automatic.
Have printing function, so can print clients info and profile info.
1. Use planer to ensure the flatness of the mounting guild rails
2. Guild is 40mm diameter, two guild distance is 700mm, More stable
The machine inside design to slope, more easy for chips clean
Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity,
so precision more high
Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast.
Saw blade come out and come back are the same speed
Right head and left head have own lubrication, so oil can be more average
