Product Details:
|
| Cutter Size: | Φ5-φ8 | Processing Range: | 110(W)×150mm(H) |
|---|---|---|---|
| Dimensions: | 1600×1500×2000mm | Weight: | 600kg |
1. Feartures
1.1 Suitable for drilling, milling groove, round hole, special-shaped hole, plane engraving and other processing of aluminum alloy profiles.
1.2 The system adopts CNC system.
1.3 Electric spindle, high precision, good safety, high reliability.
1.4 X axis, Y axis and Z axis are driven by servo motor and high density ball screw
drive, smooth transmission, high precision.
1.5 Graphic programming, simple operation, high efficiency, low labor intensity.
1.6 The table turns 180º, -90º ~ 0º ~ +90º, the profile can be processed on three sides
at one time. When processing deep hole (special-shaped hole), the deep hole can be
processed through the table turning, with high efficiency and high precision.
| Product Parameter | |
| Power supply | 380V/50Hz |
| Spindle power | 3.5KW |
| Spindle speed | 18000r/min |
| Working pressure | 0.5～0.8MPa |
| X-axis travel | 1200mm |
| Y-axis travel | 300mm |
| Z-axis travel | 280mm |
| Processing range | 110(W)×150mm(H) |
| Holder type | ER25×Φ8 |
| Dimensions | 1600×1500×2000mm |
| Weight | 600Kg |

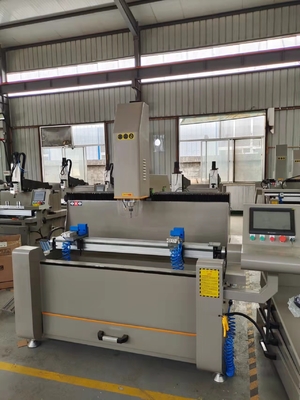

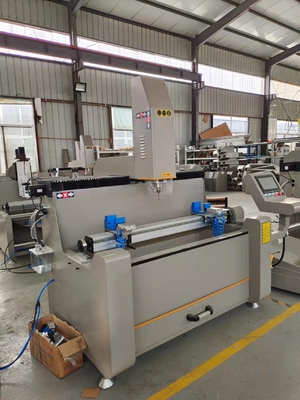

WSZ-CNC-1200
3 Axis Aluminum CNC Drilling milling machine
2.Other products

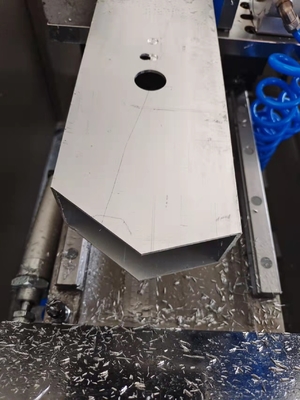

3.Mechanical details and after working samples
4. Our services
1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1.Are there training instructions?
2. How long is the warranty?
3. Why is it called 3 axes drilling milling machine ? What are the functions?
4. What are the advantages of 3 axes?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
