Product Details:
|
| Holder Type: | ER25×Φ8 | Processing Range: | 110(W)×150mm(H) |
|---|---|---|---|
| X-axis Travel: | 1200mm | Y-axis Travel: | 300mm |
1. Feartures

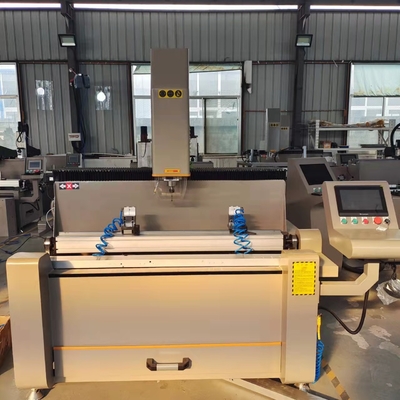

WSZ-CNC-1200 3 axis CNC drilling and milling machine is specially for drilling holes ,milling groove ,circular hole,irregular-shaped and keyhole and plane engraving of aluminum profile.The rotary worktable can change the position among -90,0°and +90°arbitrarily. One time clamping can finish milling for three sides.
| Product Parameter | |
| Power supply | 380V/50Hz |
| Spindle power | 3.5KW |
| Spindle speed | 18000r/min |
| Working pressure | 0.5～0.8MPa |
| X-axis travel | 1200mm |
| Y-axis travel | 300mm |
| Z-axis travel | 280mm |
| Processing range | 110(W)×150mm(H) |
| Holder type | ER25×Φ8 |
| Dimensions | 1600×1500×2000mm |
| Weight | 600Kg |
2.Other products

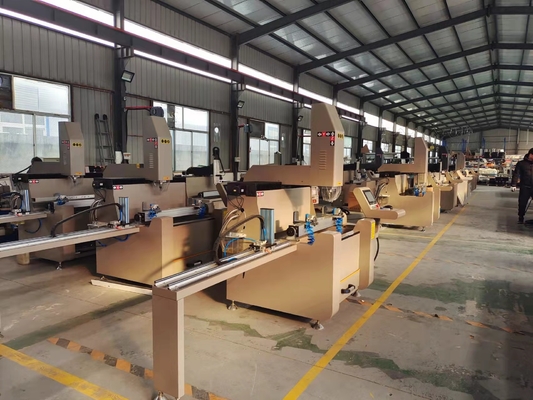

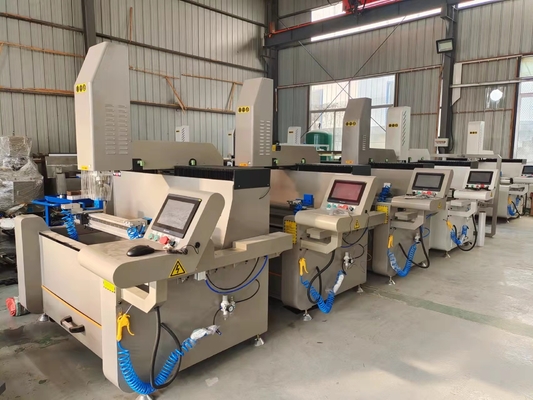

3.Mechanical details and after working samples
4. Our services
1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1.Are there training instructions?
2. How long is the warranty?
3. Why is it called 3 axes drilling milling machine ? What are the functions?
4. What are the advantages of 3 axes?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
WEIKE provide machine
More important is provide
Solutions
