Product Details:
|
| Holder Type: | ER25×Φ8 | Processing Range: | 110(W)×150mm(H) |
|---|---|---|---|
| Warranty: | 24 Months | Length: | Standard Or Customized |
1. Feartures
The small 3 axis CNC drilling and milling machine WSZ-CNC-1200 is suitable for drilling, milling, round holes, special-shaped holes, plane engraving and other processing of aluminum alloy and UPVC profiles. Lengthening the material support bracket is convenient for the processing of long profiles. It is mainly used in the door and window industry to improve processing efficiency and save labor costs.
| Product Parameter | |
| Power supply | 380V/50Hz |
| Spindle power | 3.5KW |
| Spindle speed | 18000r/min |
| Working pressure | 0.5～0.8MPa |
| X-axis travel | 1200mm |
| Y-axis travel | 300mm |
| Z-axis travel | 280mm |
| Processing range | 110(W)×150mm(H) |
| Holder type | ER25×Φ8 |
| Dimensions | 1600×1500×2000mm |
| Weight | 600Kg |
2.Other products
3.Mechanical details and after working samples

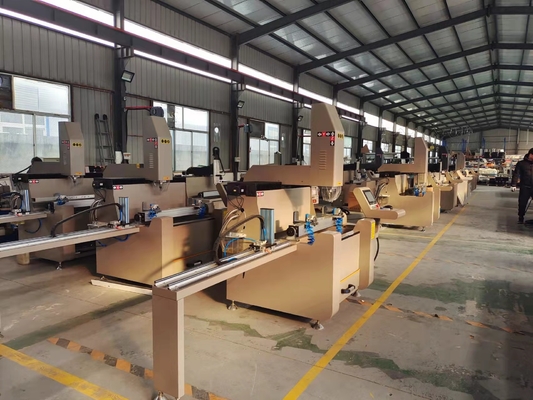

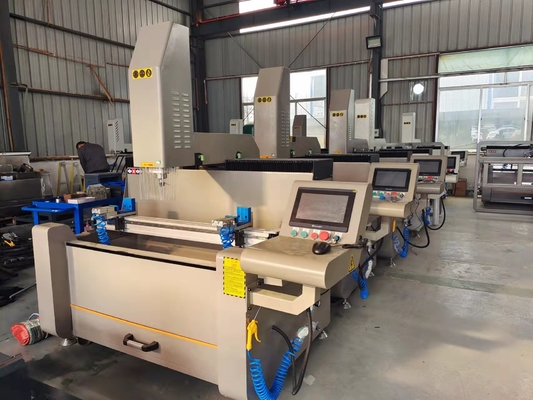

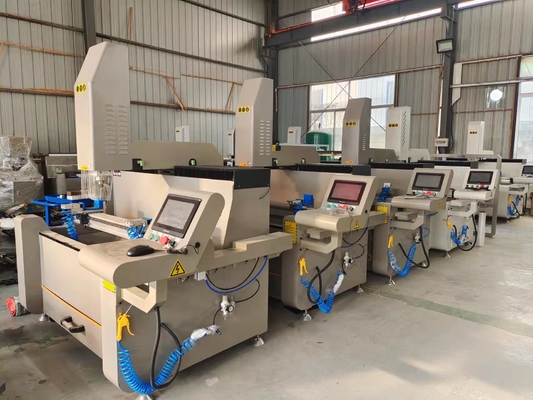

4. Workshop showing
5. Our services
1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
6.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
7. Any Questions?
1.Are there training instructions?
2. How long is the warranty?
3. Why is it called 3 axes drilling milling machine ? What are the functions?
4. What are the advantages of 3 axes?
5. Can be customized according to my needs?
6. What brand are the accessories?
If you also have these questions, you can contact me for more details.
