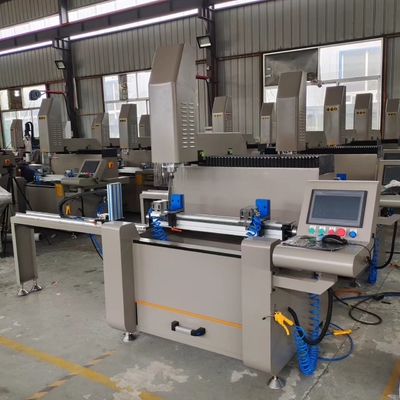

Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling

Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling
Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling

Large Image :  Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WSZ-CNC-800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 6900
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20 Sets / Month

Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling

Description
PcMersuppt/: 380V/50Hz Power: 3.5KW
Air Pressure: 0.6~0.8/MPa Rotating Speed: 18000/mh
Condition: New Cnc Or Not: CNC
After-sales Service Provided: Video Technical Support,Online Support Voltage: 380V

Suitable for drilling and milling different shapes holes, grooves, round holes, special-shaped holes and other processing of aluminum alloy profiles.



Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling 0



Main Feature




The system adopts CNC numerical control system.
Using electric spindle, high precision, good safety and high reliability.
The x-axis, Y-axis and Z-axis are driven by high-precision ball screws with stable transmission and high
precision.
Graphic programming, simple operation, high efficiency and low labor intensity.
The worktable is turned over 180°, -90°~0°~+90°, the profile can be processed on three sides in one clamping.
When processing deep through holes (shaped holes), deep hole processing can be realized by turning the
worktable, with high efficiency and high precision. .




Main Specification and Technical Paramete

     Power             suppty

  Power

    Rotating        speed

     Air  pressure

  X-axis      speed

     Y-axis           speed      Z-axis         speed    Processing        range       Dimensitxi
380V/50HZ 3.5KW 18000r/min 0.6-0.8MPA 800mm 300mm 280mm 110x150ntn 1650x1500x2000mm

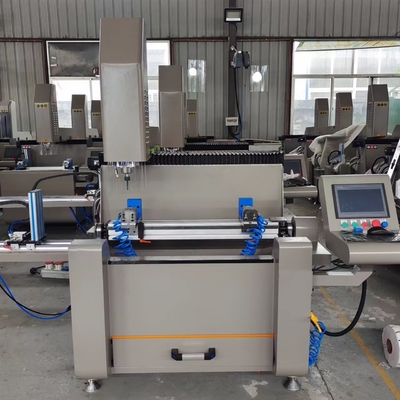

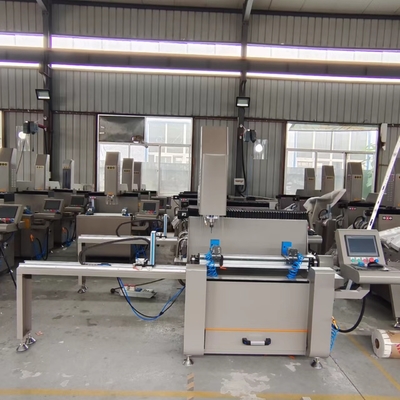

Machine Details

Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling 1Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling 2Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling 3

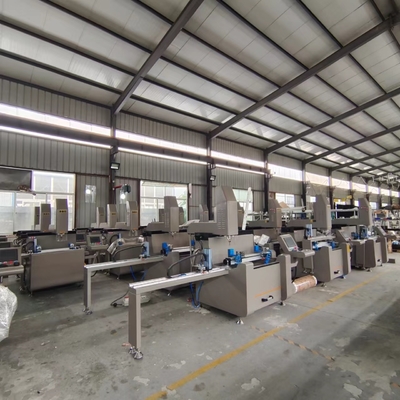

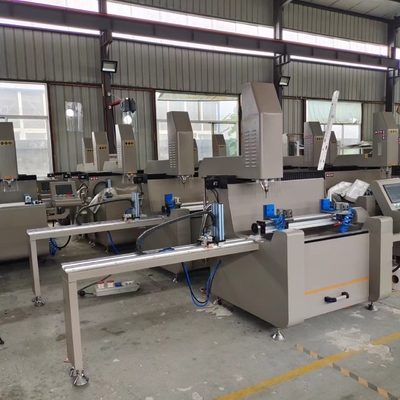

Company Introduction



Company Introduction Shandong Weike CNC Machinery Co., Ltd. is a well-known domestic manufacturer specializing in the development, production and sale of aluminum windows and doors and curtain wall equipment.

It is the largest and most industrialized manufacturing company in the sector. The company has large production workshops and strong mechanical processing capacity, a high-quality scientific research team and high-tech production equipment.

The company has strong RandD force, a complete productand insists on independent innovation to continuously improve the technology and practicability of products.

The company has several branches in China, forming a unique integrated service system that integrates product research and development, production, sales and service.

The company adheres to the development concept of "pursuing progress, pursuing excellence", continuously strengthening the industry's core competitiveness and striving to achieve itleap forward and committed to building a world-class professional supplier to the energy-saving window and door industry.

To adapt to standards, adapt to competition, adapt to needs, serve the industry, serve customers and serve the future, the company will welcome you with a new concept.
Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling 4Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling 5

Machine Delivery

Small Aluminum Window Machines CNC Copy Router Machine For Aluminum Window Profile Drilling Milling 6
Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford transportation and accommodation.
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
