Product Details:
|
| PcMersuppt/: | 380V/50Hz | Power: | 3.5KW |
|---|---|---|---|
| Air Pressure: | 0.6~0.8/MPa | Rotating Speed: | 18000/mh |
| Condition: | New | Cnc Or Not: | CNC |
| After-sales Service Provided: | Video Technical Support,Online Support | Voltage: | 380V |
Equipment Features
1.1 Suitable for aluminum alloy profile drilling, milling groove, round hole, special-shaped hole, keyhole, counterbore hole,
1.2 Narrow side door hinge hole, heaven and earth hinge, Wei fa series, bononi series, etc. Slotting, digging and other processing.
1.3 The system adopts CNC control, support CAD graphics import.

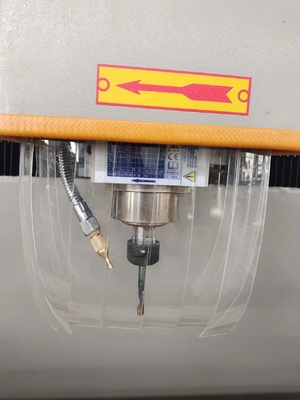

1.4 Electric spindle, high precision, high power, good safety, high reliability.
1.5 X axis, Y axis, Z axis adopts rack screw drive, smooth transmission, high precision.
1.6 Graphic programming is simple in operation, high in efficiency and low in labor intensity.
1.7 The three sides of the worktable turn over, one clamping to achieve three sides of high processing efficiency.
1.8 Three axis full servo motor, truly achieve three axis linkage high efficiency and stability.
| Product Parameter | |
| Power supply | 380V/50Hz |
| Spindle power | 3.5KW*2 |
| Spindle speed | 18000r/min |
| Working pressure | 0.5~0.8MPa |
| X-axis travel | 1500mm |
| Y-axis travel | 300mm |
| Z-axis travel | 280mm |
| Processing range | 100(W)×100mm(H) |
| Dimensions | 2300×1800×2300mm |
| Weight | 800Kg |
1. You can choose different working area machine from 500mm to 7000mm length
2.Other products

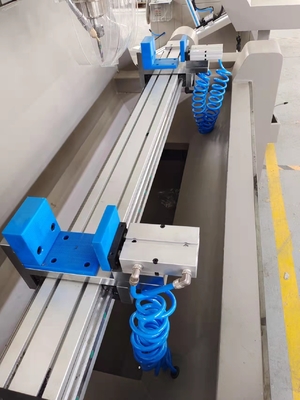

3.Mechanical details and after working samples
Drilling and Milling Round holes, Square holes, Slots, Key-holes, different shape holes, Counterbore, double layer holes, Multi-layer holes. Cutting different angle profiles, Can chamfering, engraving plane surface and different shape aluminum profile.
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
1. What's the delivery time for machines?
Our delivery time is 15 days after getting deposit, customized machines should confirm with our sales persons.
2.What we can do if your machines have problems?
1).24 hours on line service each day, free technical support.
2) We can send you free components to you if your machines are in guarantee time.
3) We can send our engineers to repair your machines
3.Can you provide machine operation training?
1) Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
2)Machine Operate Manual Will Be Provided .Machine Operate Video Will Be Provided
