Product Details:
|
| Working Pressure: | 0.5～0.8MPa | Processing Range: | 130(W)×150mm(H) |
|---|---|---|---|
| Dimensions: | 4000×1800×2600mm | Weight: | 1100Kg |

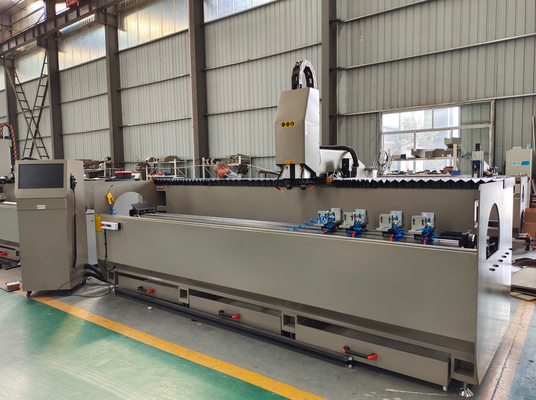

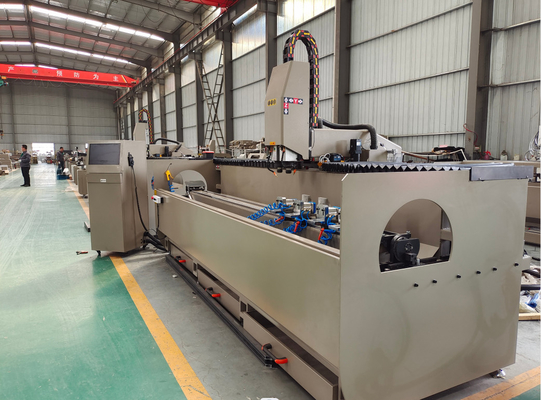

◎ Double head CNC Aliminium Copy Router is suitable for the processing of industrial aluminum alloy profiles, round holes, slot holes, key holes, special-shaped holes, etc.
◎The main shaft adopts air-cooled electric main shaft, the power is 2×6KW, the speed is 6000～18000 rpm, with high precision, good safety and high reliability.
◎ Shenzhen Kunlun Tongtai CNC system is equipped with professional graphics library, profile library, simple operation and high efficiency.
◎The worktable can be turned over 180°, -90°～0°～+90°, and the profile can be processed on three sides at one time. When processing deep through holes (special-shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and quality. it is good.
| Product Parameter | |
| Power supply | 380V/50Hz |
| Spindle power | 2* 3.5KW |
| Spindle speed | 0-18000r/min |
| Working pressure | 0.5～0.8MPa |
| X-axis running speed | 0-60 m/min |
| Y-axis running speed | 0-40 m/min |
| Z-axis running speed | 0-30 m/min |
| Processing range | 130(W)×150mm(H) |
| Dimensions | 4000×1800×2600mm |
| Weight | 1100Kg |
1. Feartures
1.Spindle
Air-cooled electric spindle, power 2×6KW, speed 6000～18000 rpm, high precision and good safety.
2. Controller:
HANS PA industrial CNC system Match CAM software for programming but don’t have automatic tool changer function
3.Worktable
The worktable is turned 180°, -90°～0°～+90°, and the profile can be processed on three sides by one clamping.
4. Electric Components:
French Schneider AC contactor
5. After working samples
2.Other products

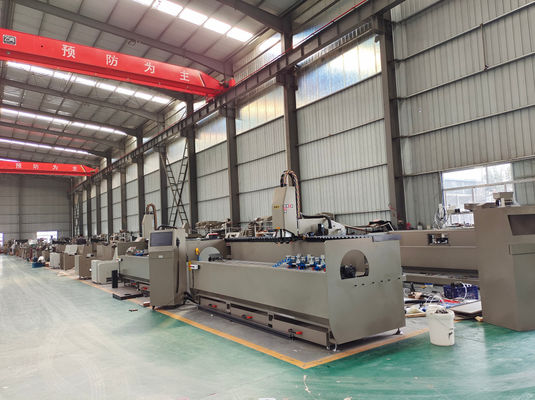

3. Workshop showing
5. Our services
1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
6.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
7. Any Questions?
1.Are there training instructions?
2. How long is the warranty?
3. Why is it called CNC Aluminum copy router? What are the functions?
4. Can be customized according to my needs?
5. What brand are the accessories?
If you also have these questions, you can contact me for more details.
