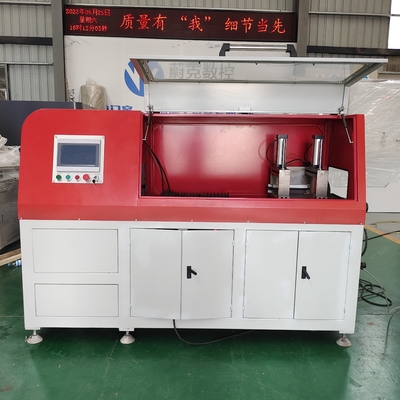

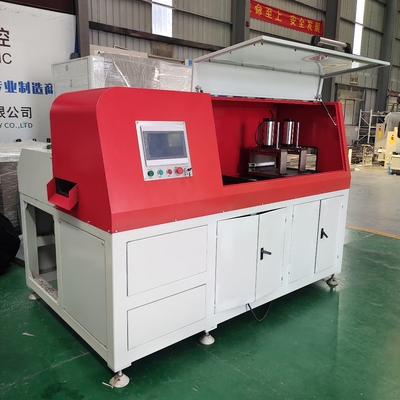

CNC Solid Aluminum Profile Cutting Saw Servo Feeding Cutter Machine With 90 Degree Cutting Anlge

1. Feartures

1. The single-head cutting saw adopts the numerical control programming control system. Simple operation is mainly used for automatic cutting of aluminum profiles, and can be used for automatic cutting of thicker and longer curtain wall profiles and plastic profiles.

2. The tool adopts diamond saw blade, which has high cutting speed, high productivity and high machining accuracy.

3. The feeding motion pair of this machine adopts linear motion bearing, which has small motion resistance and high precision.

4. The feeding mechanism adopts servo motor automatic feeding system, which is stable, reliable and efficient.

5. The degree of automation is high, and the advance and retreat of the saw blade is controlled by motor, which is easy to operate, safe and reliable, and has high productivity.

◎Power supply: 380V 50Hz
◎Power: 5.5KW
◎Working air pressure: 0.6-0.8MPa
◎Motor speed: 3000r/min
◎Sawing specification: Φ500×Φ30mm×4.4mm Z=120
◎Maximum cutting range: 300mm wide × 100mm high
◎Sawing angle: 90°
◎Dimensions: 2450(L)×1400(W)×1550(H)mm (Bracket 5000mm)

2.Details

1.  NC Control

Support Chinese and English input

Unlimited storage

One-click program call

2.Φ500 saw blade

3.Electric: Schneider

4.  Adopts linear guide,the kinematic pair of automatic feeding adopts ball screw.

Stable operation and high precision

3. Other products




4. Workshop showing

5. Our services

1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

2. Provide free training when come to factory study.

Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

6.Packaging Details

1.  Inside is plastic film.

2.  Under the equipment is the iron tray fixed, or choose wooden box packing

3.  Can also be based on customer needs for packaging QingDao Port


7. Any Questions?

1.Are there training instructions?
2. How long is the warranty?
3.  What are the functions?
4. Can be customized according to my needs?
5. What brand are the accessories?
If you also have these questions, you can contact me for more details.
