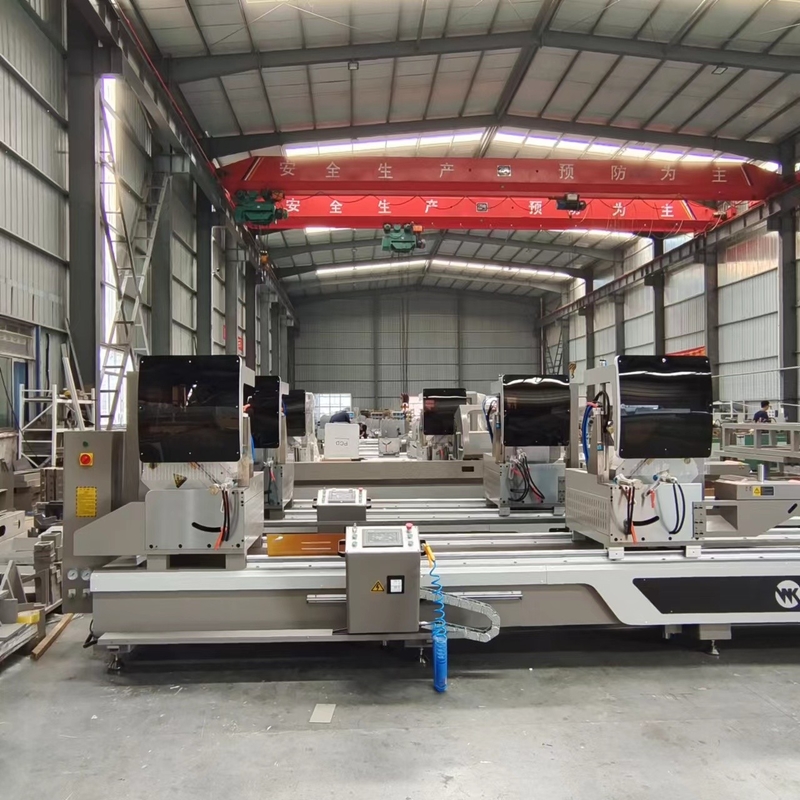

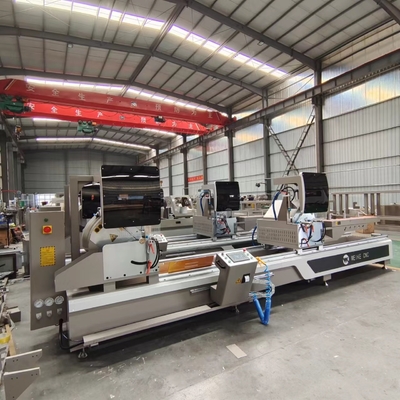

CNC Double Head Mitre Cutting Saw CNC Aluminium UPVC Cutting Machine

High precision double head cutting saw, CNC system control. Cutting angle 45 and 90 degrees, standard version with printing function.

1. Feartures

1. High precision cutting of PVC and Aluminium profiles.

2. Strong construction, lineer rail and sliding-bearing system for precise length and angle.

3. The saw heads tilt automatically for 45° and 90° cutting and easy manual fixation for Intermediate angles.

4. Easily adjustable blade cutting speed.

5. With label printing function.

6. Self-closing protective hoods for work safety.

7. Vertical and horizontal pneumatic profile clamping system for the best fixation.

8. The left head of the machine is fixed and the right head moves on the chassis.

9. Cooling system to cut Aluminium profiles.

10. Hydro-pneumatic system to cut Aluminium profiles.

Technical Parameters

1. Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)

2. Power supply: 380V/50Hz (Can make according your voltage)

3. Air pressure: 0.6~0.8MPa

4. Motor rotary speed: 2800r/min

5. Saw blade specification: φ500 φ600

6. Cutting angle: 90°45°

7. Cutting length: 290~6000mm

8. Cutting width*height

Φ500   150*180mm (45 degree)

            150*240mm (90 degree)

Φ550   175*205mm (45 degree)

            175*265mm (90 degree)

Φ600    200*230mm (45 degree)

            200*290mm (90 degree)

9. Overall dimension: 5800 x 1500 x 1700mm

10. Weight about: 1650kg / 2100kg

2.Details

1. CNC Control

CNC Control, cutting length, cutting angle control are all automatic.

Transparent protective cover, dustproof.  Have printing function, so can print clients info and profile info.

2.Guild rails

1. Use planer to ensure the flatness of the mounting guild rails

2. Guild is 40mm diameter, two guild distance is 700mm, More stable

The machine inside design to slope, more easy for chips clean

3.Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast. Saw blade come out and come back are the same speed

4. Most supplier the angle fix is point to point, may easy broken, we upgrade to point to face, so enlarge use time.

5. After working samples


3. Other products

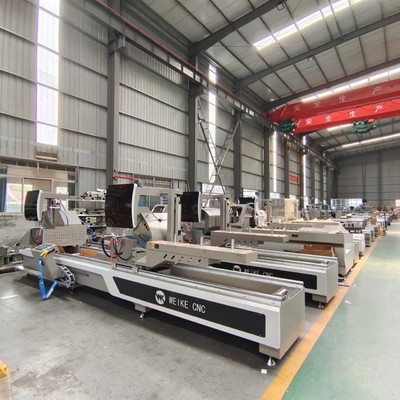

4. Workshop showing

5. Our services

1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

2. Provide free training when come to factory study.

Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

6.Packaging Details

1.  Inside is plastic film.

2.  Under the equipment is the iron tray fixed, or choose wooden box packing

3.  Can also be based on customer needs for packaging QingDao Port


7. Any Questions?

1.Are there training instructions?
2. How long is the warranty?
3. What are the functions?
4. Can be customized according to my needs?
5. What brand are the accessories?
If you also have these questions, you can contact me for more details.
