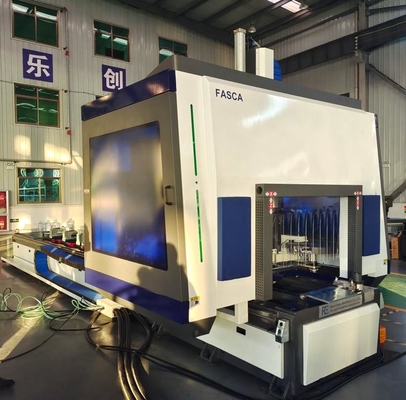

5-Axis CNC Machining Center For Industrial Aluminum Profiles With 12 Tool Magazines for drilling milling and cutting

5-axis CNC machining centre with moving gantry structure. Designed for milling, drilling, thread cutting and cutting on bars or large workpieces of aluminium, PVC, light alloys in general . The high power electrically-driven spindle with HSK-63F tool holder allows machining operations, including heavy-duty work, with optimum results in terms of speed and accuracy.

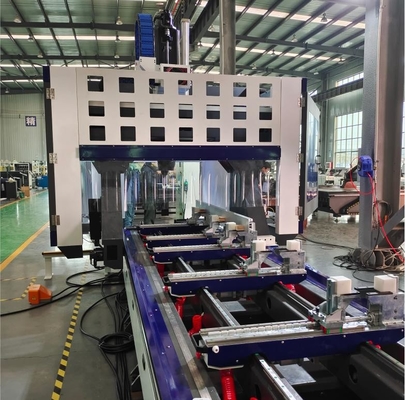

The 12-place tool magazine is installed behind the moving gantry structure, the 300 mm blade is housed separately in a specific blade magazine. The machine can be used in double mode so as to minimize machine downtime, as it is possible to change the workpiece (load/unload) in “concealed” time. The dynamic double operation version can improve further on this feature, positioning the vices independently from the portal movements. It is also possible to machine different workpieces between the two work areas. The gantry is provided with a guard which, besides protecting the operator, also reduces the noise impact on the environment.

1. Feartures

1.Adopt Italinan OSAI axis CNC control system with RTCP function,imported servo motor and driver,so can make sure the function of fast position and stable working.

2. The CNC system have file storage unit, can store more than ten thousands different program files. The operators is convenience to use them during production The CNC system have the functions of fault detection,break point recovery, power failure recovery etc. The control system adopts a modular
structure which facilitates the service and maintenance at the production site.

3. Adopt advanced CNC control system, the machine can meet various processing requirements,such as dilling, milling, nigid tapping and sawing.

4.Five Axis spindle adopts Italy 12KW automatic tool change and tool aligning function.Realizing multi-faceted and multiangle process on kinds of aluminium profile. With cutting function can realize precisely cutting at multfaceted and multi-angle.

5. Tools magazine, disc 12 tools and a saw blade,meeting the requirement of quick tool changing in different hole positions of profile processing.

6. It can achieve dual-zone working model,means one zone is working, at the same time another zone is load/upload parts. Machine can achieve alternating working.

Technical Parameters

1. Control System: Italy OSAI OPEN smart 5 Axis Controller with RTCP function

2. Spindle: Italy HITECO KPX150 5 Axis spindle

3. XYZ axis traveling speed : L*W*H > 6500*400*300mm

4. XYZ axis traveling speed :XYZ:70/55/30m/min

5. Lubrication system :Auto lubrication pump

6. Tool collet :HSK E63

7. Max blade diameter :300mm

8. Tools magazine : 12 Milling drilling bits

2.Details

1. Controller:

Italy OSAI Open Smart 5 Axis Controller+ LCD screen  With RTCP Function

2. Spindle:

Italy HITECO KPX120 12KW Electric Spindle   HSK-63F tool shank

3. Tool magazine

4. 300mm saw blade

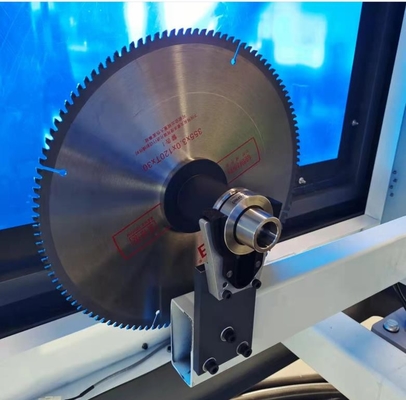

5. Servo motor and drive
