5 Axis Aliminium Machining Center With RTCP Function Industrial Aluminium Curtain Wall Sun Room Machine

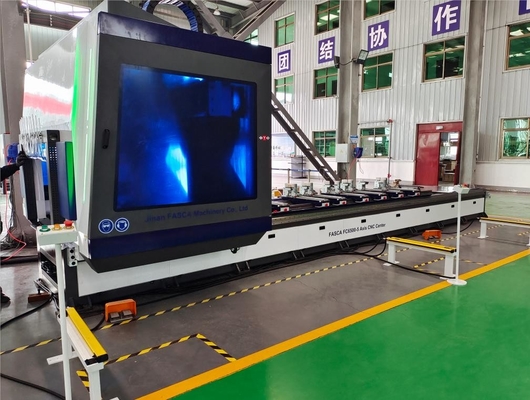

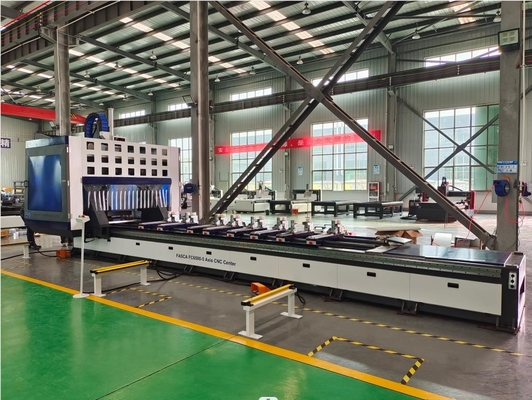

5-axis CNC machining centre with moving gantry structure. Designed for milling, drilling, thread cutting and cutting on bars or large workpieces of aluminium, PVC, light alloys in general . The high power electrically-driven spindle with HSK-63F tool holder allows machining operations, including heavy-duty work, with optimum results in terms of speed and accuracy.

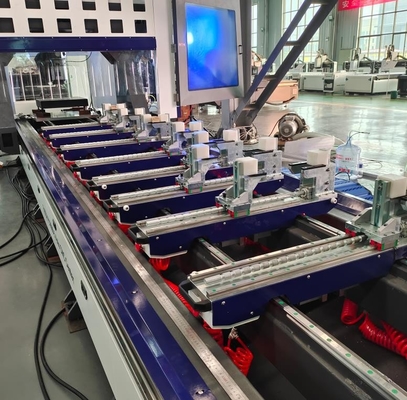

The 12-place tool magazine is installed behind the moving gantry structure, the 300 mm blade is housed separately in a specific blade magazine. The machine can be used in double mode so as to minimize machine downtime, as it is possible to change the workpiece (load/unload) in “concealed” time. The dynamic double operation version can improve further on this feature, positioning the vices independently from the portal movements. It is also possible to machine different workpieces between the two work areas. The gantry is provided with a guard which, besides protecting the operator, also reduces the noise impact on the environment.

1. Feartures

1.Adopt Italinan OSAI axis CNC control system with RTCP function,imported servo motor and driver,so can make sure the function of fast position and stable working.

2. All operations, such as routing, drilling, tapping, thread milling, notching and sawing, are performed while the profile bar is stationary to protect the profile surface.

3. The on-board tool magazines ensure that tool changing times are kept short, thereby optimizing machining cycles.

4. One magazine can be equipped with 12 standard tools .An additional magazine for the saw blade,diameter 300mm.

5. Two separate working zones enable machining in shuttle operation. Secure access with safety fences and light barriers.

Technical Parameters

1. Control System: Italy OSAI OPEN smart 5 Axis Controller with RTCP function

2. Spindle: Italy HITECO KPX150 5 Axis spindle

3. XYZ axis traveling speed : L*W*H > 6500*400*300mm

4. XYZ axis traveling speed :XYZ:70/55/30m/min

5. Lubrication system :Auto lubrication pump

6. Tool collet :HSK E63

7. Max blade diameter :300mm

8. Tools magazine : 12 Milling drilling bits

2.Details

1. Controller:

Italy OSAI Open Smart 5 Axis Controller+ LCD screen  With RTCP Function

2. Spindle:

Italy HITECO KPX120 12KW Electric Spindle   HSK-63F tool shank

3. Tool magazine

4. 300mm saw blade

5. Servo motor and drive


3. Other products



4. Workshop showing

5. Our services

1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

2. Provide free training when come to factory study.

Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

6.Packaging Details

1.  Inside is plastic film.

2.  Under the equipment is the iron tray fixed, or choose wooden box packing

3.  Can also be based on customer needs for packaging QingDao Port


7. Any Questions?

1.Are there training instructions?
2. How long is the warranty?
3. What are the functions?
4. Can be customized according to my needs?
5. What brand are the accessories?

6. What is 5 axis aluminium machining center?

If you also have these questions, you can contact me for more details.
