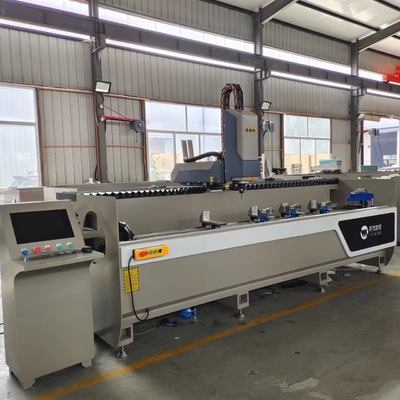

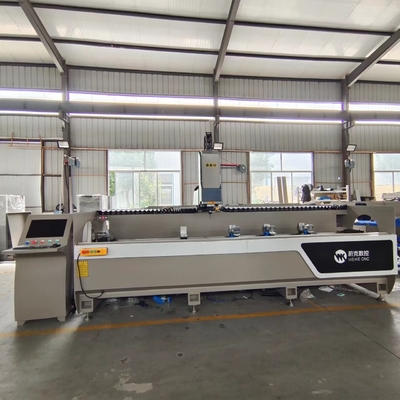

3000mm 3200mm CNC 3 Axes Aluminium Copy Router Aluminium Milling Center With Table Flip

CNC 3 axes aluminum copy router machine is specially designed for manufacturing various aluminum and PVC profiles. is used for Drilling and Milling Round holes, Square holes, Slots, Key-holes, different shape holes, Counterbore, double layer holes, Multi-layer holes. Cutting different angle profiles, Can chamfering, engraving plane surface and different shape aluminum profile. Special sound insulation baffle automatically rises around the processing, isolation baffle reduces machine noise, prevent the processing of aluminum chips flying, to ensure the safety of operators.

1. Equipment Features

1. Main spindle adopt aircooling electric spindle, 6KW power, 0~18000/min , have the function of high precision, high safety and high reliable.

2. The CNC system is equipped with professional graphics library, profile library, simple operation and high efficiency.

3. Imported guide rail, sliding block, X axis adopt high precision oblique gear and rack driving. Y and Z axis adopts high precision ball screw drive. The drive is stable, so can improve the precision of whole machine.

4. The worktable can overturn 180°.-90°~0°~+90°,Clamping one time profile can realize three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.

5. Adopt manual pump oil supply system, blades adopt system control spray cooling device.

2.Mechanical details and after working samples

1.Controller:

Germany HANS PA industrial ,

CNC system but don’t have automatic tool changer function

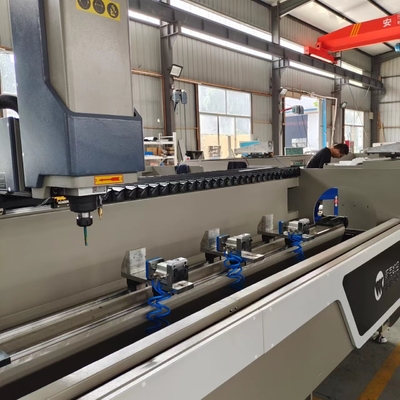

2.Worktable

Can overturn 180°.-90°~0°~+90°,Clamping one time profile can realize three faces processing

3.6Kw high-precision electric spindle

4.Holes after working samples

2.Other products

4. Our services

1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

2. Provide free training when come to factory study.

Because of Covid-19, we provide:

1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

5.Packaging Details

1.  Inside is plastic film.

2.  Under the equipment is the iron tray fixed, or choose wooden box packing

3.  Can also be based on customer needs for packaging QingDao Port

6. Any Questions?

1.Are there training instructions?

2. How long is the warranty?

3. Why is it called 3 axes machining centre ? What are the functions?

4. What are the advantages of 3 axes?

5. Can be customized according to my needs?

6. What brand are the accessories?

If you also have these questions, you can contact me for more details.
