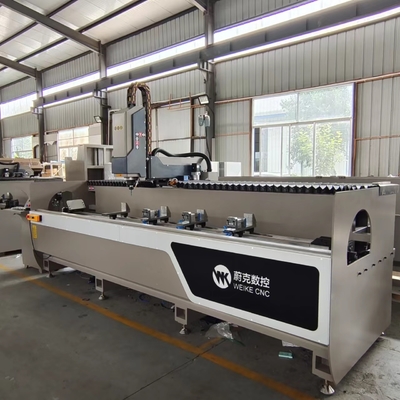

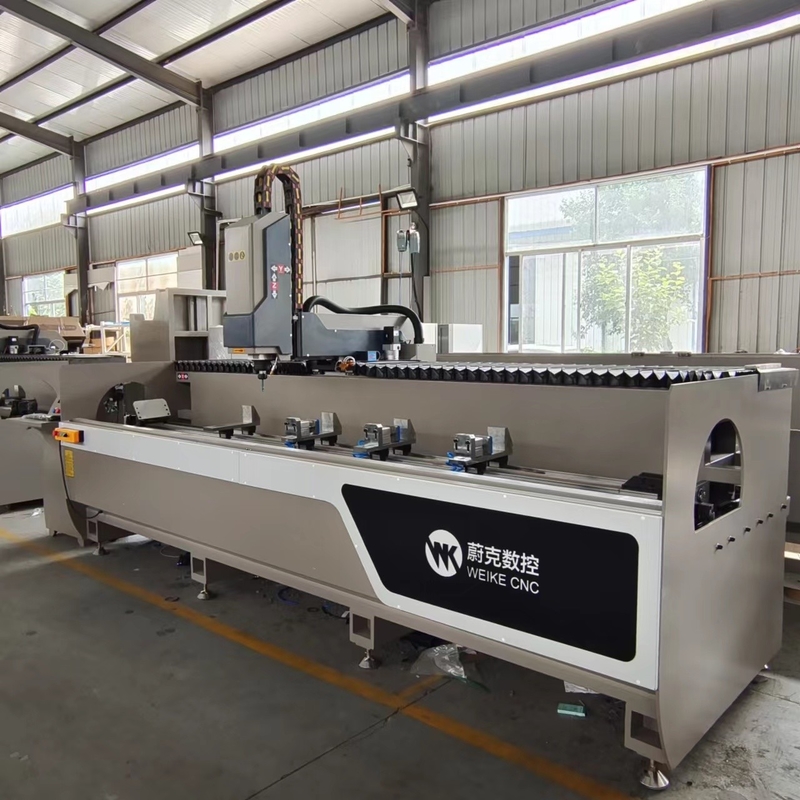

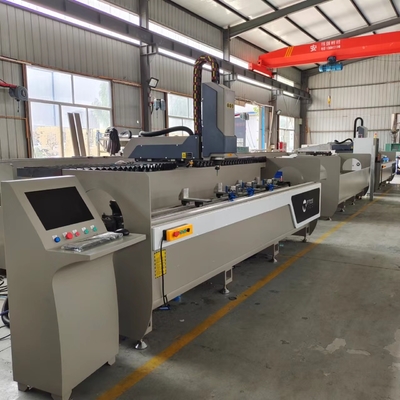

Upvc 3 Axis Cnc Drilling Milling Machine With Single Spindle

CNC 3 axes aluminum copy router machine is specially designed for manufacturing various aluminum and PVC profiles. is used for Drilling and Milling Round holes, Square holes, Slots, Key-holes, different shape holes, Counterbore, double layer holes, Multi-layer holes. Cutting different angle profiles, Can chamfering, engraving plane surface and different shape aluminum profile. Special sound insulation baffle automatically rises around the processing, isolation baffle reduces machine noise, prevent the processing of aluminum chips flying, to ensure the safety of operators.

1. Equipment Features

1. The 3-axis CNC drilling and milling machine for aluminum profiles is mainly suitable for drilling, slotting, round holes, holes, and plane engraving processing of aluminum profiles. Different lengths can be customized according to customer needs, and the standard length is 3200mm.

2. The system adopts numerical control system, which is easy to operate and can control the machine remotely.

3. The X-axis adopts high-precision helical rack and pinion transmission. The Y and Z axes are driven by high-precision ball screws, which are stable and have high precision.

4. The worktable rotates 180°, 90°, 0°~90°, and the profile can be processed on three sides at one time. higher processing efficiency.

2.Mechanical details and after working samples

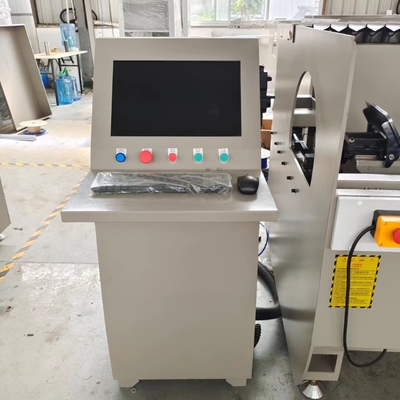

1.Controller:

Germany HANS PA industrial ,

CNC system but don’t have automatic tool changer function

2.Worktable

Can overturn 180°.-90°~0°~+90°,Clamping one time profile can realize three faces processing

3.6Kw high-precision electric spindle

4.Holes after working samples

2.Other products

4. Our services

1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.

2. Provide free training when come to factory study.

Because of Covid-19, we provide:

1. Before delivery: Machine operate manual, program software user manual and English videos.

2. Before delivery: Face to face video training online between your operator and our engineer.

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Machine Operate Manual Will Be Provided

Machine Operate Video Will Be Provided

5.Packaging Details

1.  Inside is plastic film.

2.  Under the equipment is the iron tray fixed, or choose wooden box packing

3.  Can also be based on customer needs for packaging QingDao Port

6. Any Questions?

1.Are there training instructions?

2. How long is the warranty?

3. Why is it called 3 axes machining centre ? What are the functions?

4. What are the advantages of 3 axes?

5. Can be customized according to my needs?

6. What brand are the accessories?

If you also have these questions, you can contact me for more details.
