Product Details:
|
| Main Moter Power: | 2.2KW | Saw Blade Diameter: | 600mm |
|---|---|---|---|
| Cutting Angle: | 45 Degree And 90 Degree | English Manual: | Provid |
| Video Training: | Provid | Online Training: | Provid |
| Highlight: | cnc cutting double head mitre saw,90 degree double head mitre saw,double head mitre saw for aluminum |
||

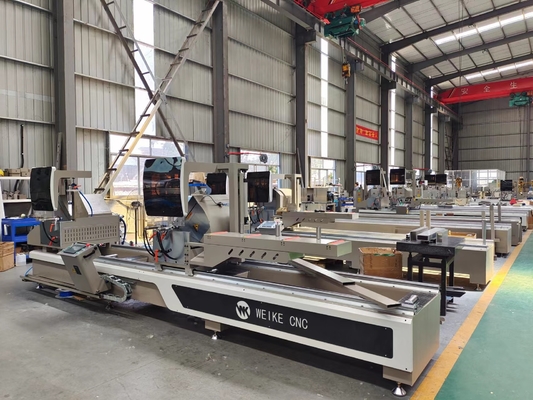

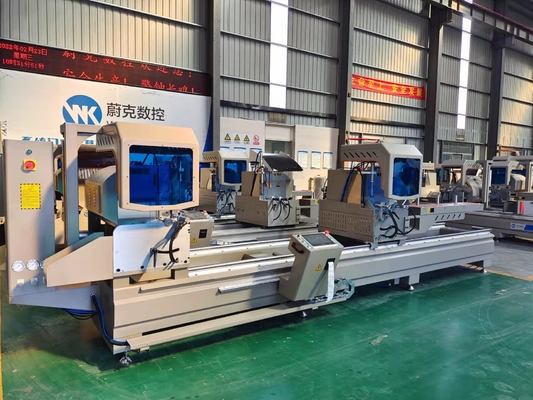

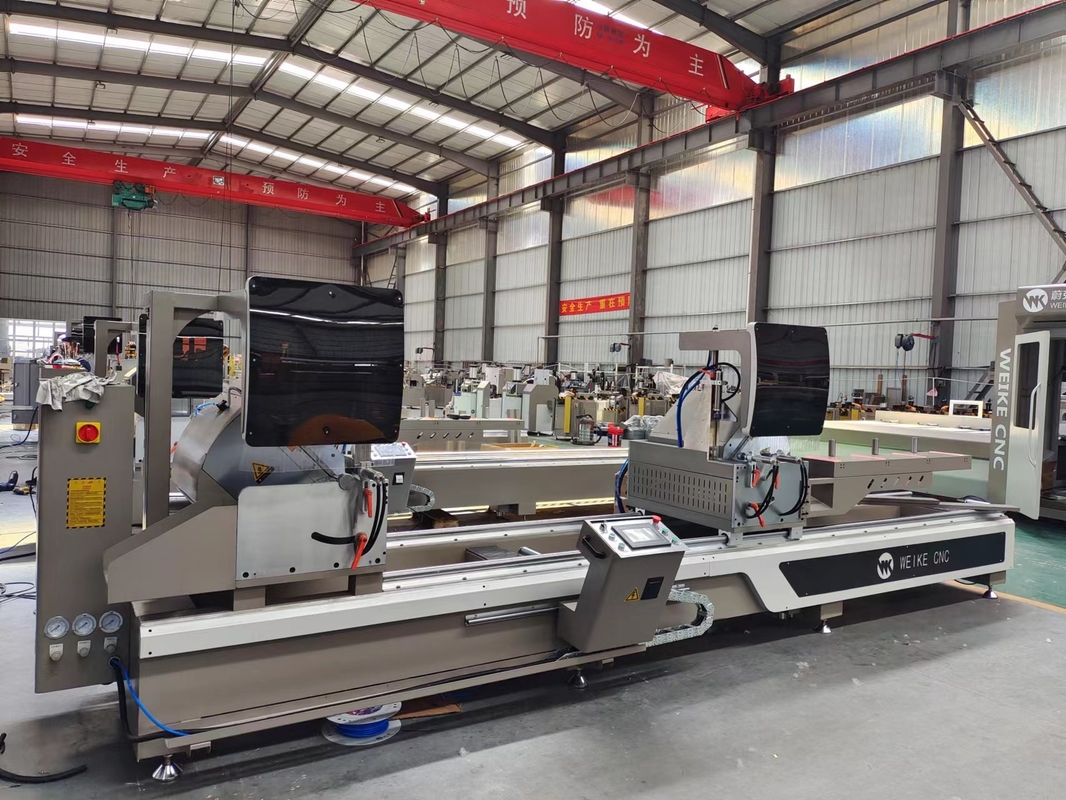

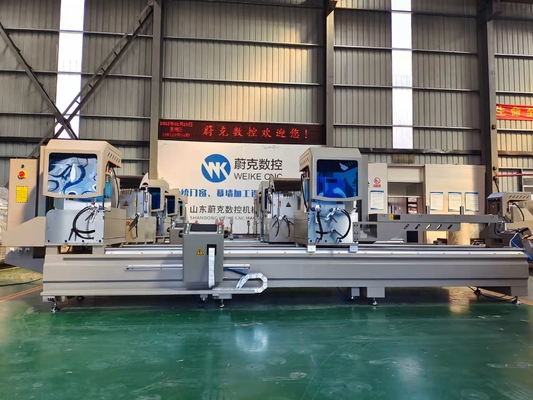

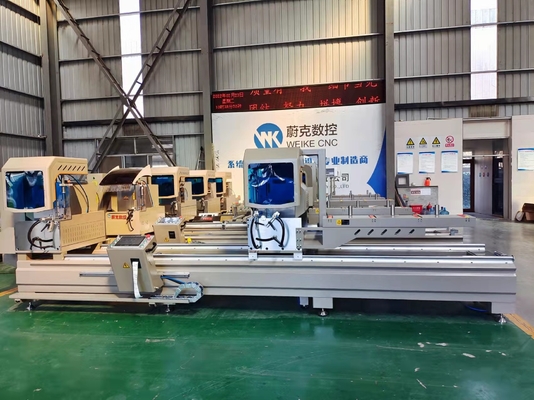

Front blade sawing machine
● Used for reducing aluminum alloy doorways and windows, curtain wall profiles.
● It adopts numerical manipulate tool to appropriately show the duration of the reduce profile.
● The excessive-precision spindle makes the noticed blade rotate stably.
● The gas-liquid damping cylinder realizes uniform feed pace law and solid movement.
● The computerized lifting protecting cowl makes paintings secure and convenient.
● The feed device adopts imported linear manual pair, which has excessive precision and lengthy life.
2. Technical Parameter
● Air pressure: 0.6~0.8MPa
● Motor rotary speed: 2800r/min
● Input power: 4.4kw+0.75KW (600 saw blade use 6KW+0.75KW)
● Power supply: 380V/50Hz (Can make according your voltage)
● Saw blade specification: φ500 / φ600
● Cutting angle: 90°45°
● Cutting length: 290~6000mm
● Overall dimension: 5800 x 1500 x 1700mm
● Weight about: 1650kg
Option:
| 1 | Saw Blade: 500/550/600mm |
| 2 | Printer |
| 3 | Connect with windows design software |
| 4 | Main Spindle and Motor Option |
| 5 | Cutting length Option |
| 6 | Have different machine frame |
CNC Control, cutting length, cutting angle control are all automatic.
Have printing function, so can print clients info and profile info.
1. Use planer to ensure the flatness of the mounting guild rails
2. Guild is 40mm diameter, two guild distance is 700mm, More stable
The machine inside design to slope, more easy for chips clean
Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity,
so precision more high
Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast.
Saw blade come out and come back are the same speed
Right head and left head have own lubrication, so oil can be more average
1.Provide free training when come to factory study.
2. If need engineer go to oversea training: Client afford transportation and accommodation,
Engineer salary is 100USD/Day.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control
your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
