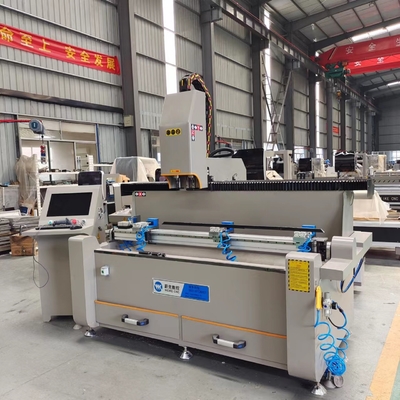

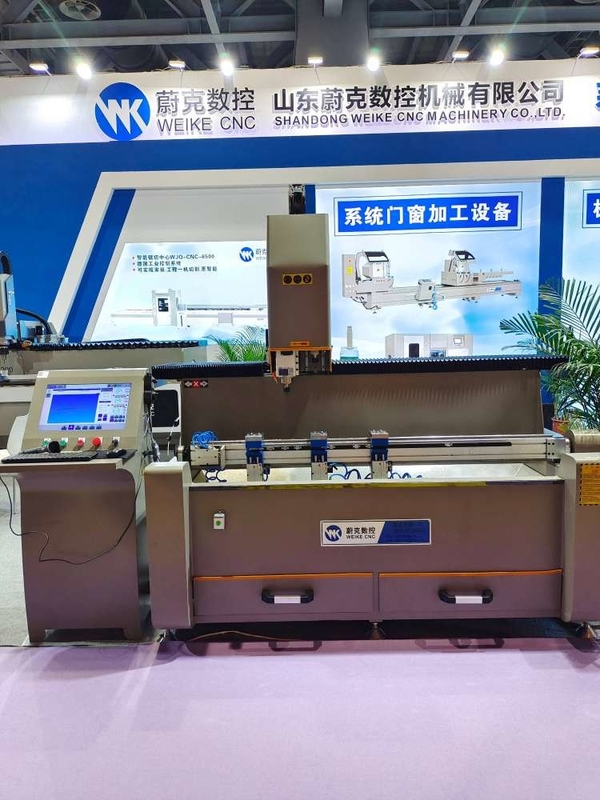

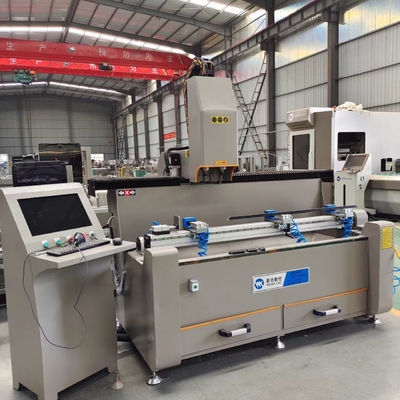

3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm

3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm
3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm

Large Image :  3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WSZ2-CNC-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 7350 USD
Packaging Details: Plywood Box
Delivery Time: 3-7 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 50 Sets / Month
Contact Now

3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm

Description
Power: 9.5KW Air Pressure: 0.6~0.8MPa
Rotating Speed: 18000/min X Axis Journey: 1500mm
Y Axis Journey: 300mm Z Axis Journey: 280mm
Overall Dimension: 2000*1800*2300mm
Highlight:

1500mm cnc drilling and milling machine

,

3axis cnc drilling and milling machine

,

cnc drilling milling aluminium door machine

 Double Head Aluminum Profile 3+1 Axes CNC Drilling Milling Machine

Working Area: 1500mm/ 3200mm Option (According your needed, select appropriate running area)

Two Spindle: One is for drilling Milling Common holes, every other is unique for counterbore Holes

three managed axis machining centre with pneumatic rotation of the paintings desk to 0°/90°/180°

3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 0

The WSZ2 machining centre with three managed axes and pneumatic rotation of the desk has

been designed to perform drilling and milling operations on aluminium or metallic profiles.

Equipped as preferred with minimal lubrication, double stop, guide 6 place device mag and spindle

with quick-launch device coupling. WSZ2 is the answer that mixes compact operating dimensions

and excessive machining performance.



Numerous configuration alternatives are available (automated device change, inflexible tapping,

adjustable rotation of the paintings desk to intermediate angles, lubri-cooling), making WSZ2 an

answer that may be scaled to many distinct needs.

3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 1

                                          (Still have 3200mm type, you can choose)

1. Main Feature
● appropriate for drilling, edge grooves, spherical holes, special-shaped holes, key holes,
countersinks, and slim door hinge holes, heaven and earth hinges, Wifa series, Bononi series,
and so on Slotting, excavation and different processing.
● The system adopts CNC management and supports the import of CAD graphics.
● exploitation electrical spindle, high precision, high power, sensible safety and high reliability.
● The X-axis, Y-axis, and coordinate axis are driven by rack and screw, with stable transmission and high precision.
● Graphic programming is straightforward to operate, high in efficiency, and low aborning intensity.
● The work table is flipped on 3 sides and clamped at just the once to attain high process potency on three sides.
● The three-axis full servo motor will really realize the high efficiency and stability of the three-axis linkage.
2.  Samples Holes After Working:
3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 23 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 33 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 43 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 5
3.  Parameter
Power Supply 220V, 380V, 415V, 440V...
Working pressure 0.6-0.8MPA
Total power 14.5KW
Option Scanner
Control System SYNTEC, LNC, Hans PA (Option)
Fixture Option

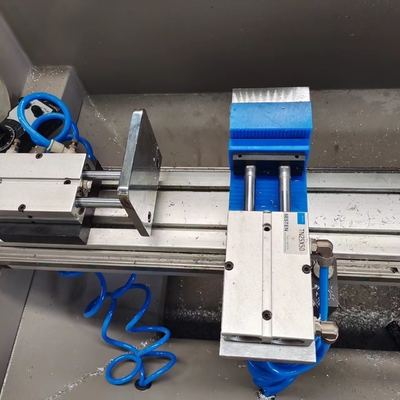

4. Alloy Milling Machine Detailed Photos

3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 6



3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 7



3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 8

4.  Certification

3 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 93 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 103 Axis Cnc Drilling And Milling Machine Max Processing Length 1500mm 11

5. Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford transportation and accommodation,
Engineer salary is 100USD/Day
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine
to show you how to work.
