Two Spindle Aluminum Machines Profile Drilling And Milling For Minimalist Home

 Double Head Aluminum Profile 3+1 Axes CNC Drilling Milling Machine

Working Area: 1500mm/ 3200mm Option (According your needed, select appropriate running area)

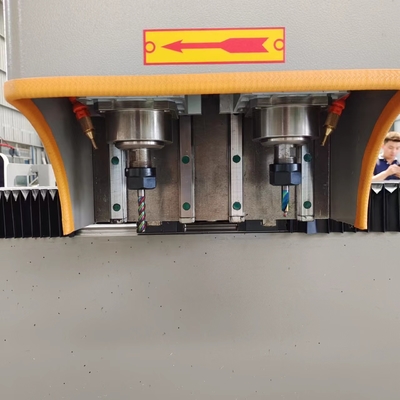

Two Spindle: One is for drilling Milling Common holes, every other is unique for counterbore Holes

three managed axis machining centre with pneumatic rotation of the paintings desk to 0°/90°/180°

                                          (Still have 3200mm type, you can choose)

1. Main Feature

● appropriate for drilling, edge grooves, spherical holes, special-shaped holes, key holes,

countersinks, and slim door hinge holes, heaven and earth hinges, Wifa series, Bononi series,

and so on Slotting, excavation and different processing.

● The system adopts CNC management and supports the import of CAD graphics.

● exploitation electrical spindle, high precision, high power, sensible safety and high reliability.

● The X-axis, Y-axis, and coordinate axis are driven by rack and screw, with stable transmission and high precision.

● Graphic programming is straightforward to operate, high in efficiency, and low aborning intensity.

● The work table is flipped on 3 sides and clamped at just the once to attain high process potency on three sides.

● The three-axis full servo motor will really realize the high efficiency and stability of the three-axis linkage.

2.  Samples Holes After Working:

3.  Parameter

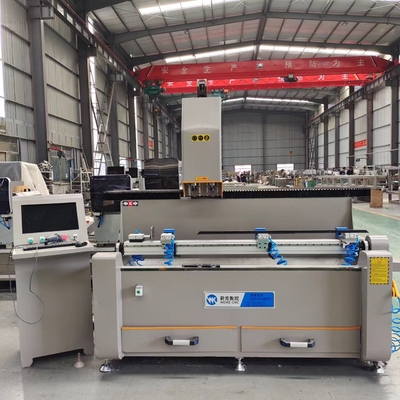

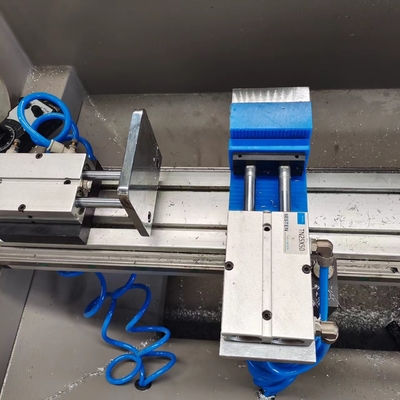

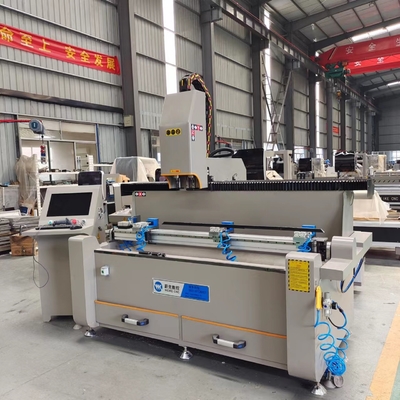

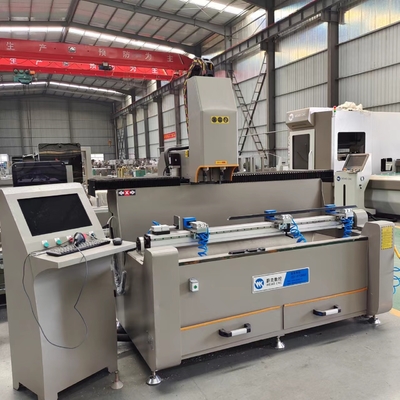

4. Alloy Milling Machine Detailed Photos

4.  Certification

5. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation,

Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine

to show you how to work.
