Product Details:
|
| Total Power: | 5.5kw | Motor Power: | 3kw |
|---|---|---|---|
| Saw Blade Specification: | 500 | Cutting Angle: | 90 |
| Highlight: | cnc aluminium door window manufacturing machine,cnc single head miter saw,corner connector single head miter saw |
||

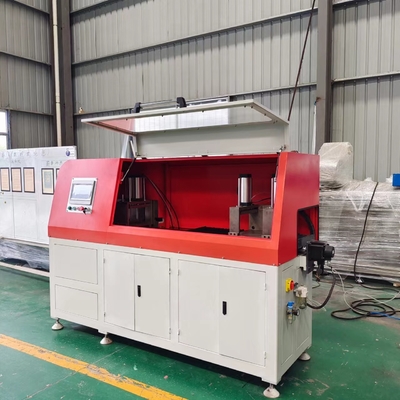

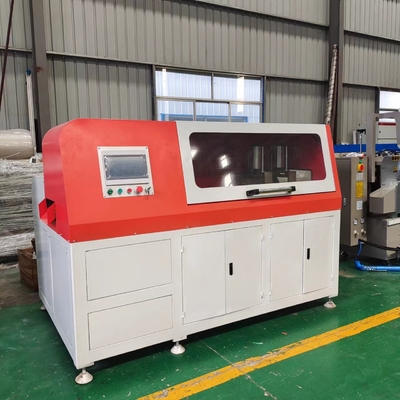

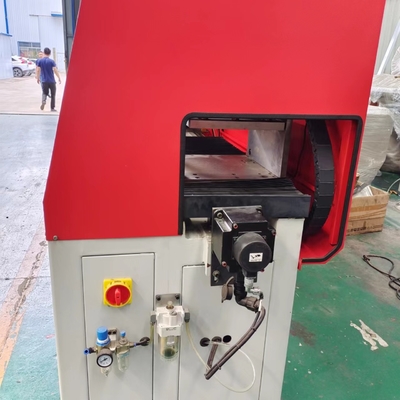

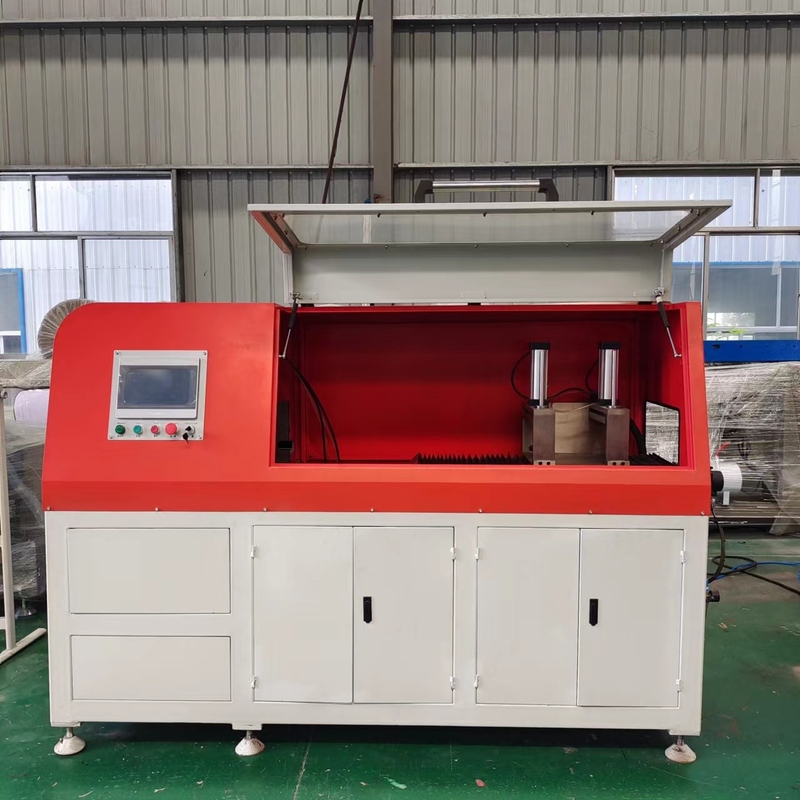

CNC Single Head Miter Saw UPVC Single Head Miter Saw Hot Sale
1. Feartures
1. The single-head cutting saw adopts the numerical control programming control system. Simple operation is mainly used for automatic cutting of aluminum profiles, and can be used for automatic cutting of thicker and longer curtain wall profiles and plastic profiles.
2. The tool adopts diamond saw blade, which has high cutting speed, high productivity and high machining accuracy.
3. The feeding motion pair of this machine adopts linear motion bearing, which has small motion resistance and high precision.
| Product Parameter | |
| Motor power | 3 kw |
| Power supply | 380V/50Hz (Can make according your voltage ) |
| Air pressure | 0.5~0.8MPa |
| Motor rotary speed | 2800r/min |
| Saw blade specification | Φ500 |
| Processing width*height | 300mm*100mm |
| Overall dimension | 2200*1400*1550mm |
| Weight about | 750kg |
2. Details

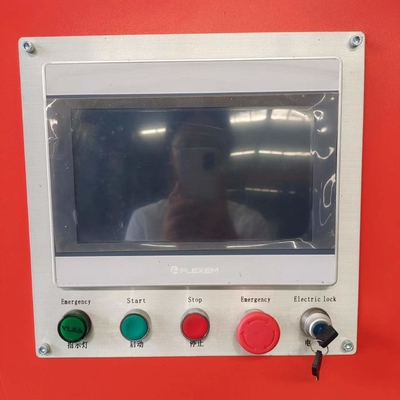

1. NC Control
Support Chinese and English input
Unlimited storage
One-click program call

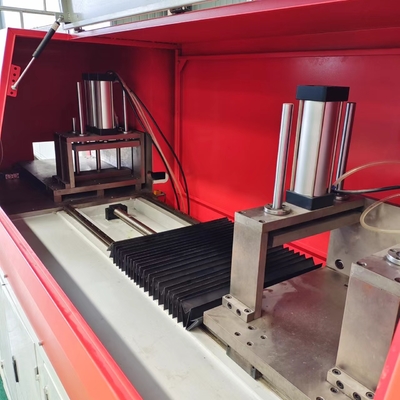

2. Φ500 saw blade
3. Adopts linear guide,the kinematic pair of automatic feeding adopts ball screw.
Stable operation and high precision
3. Workshop showing
4. Our services
1. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
5. Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
6. Any Questions?
1. Are there training instructions?
2. How long is the warranty?
3. What are the functions?
4. Can be customized according to my needs?
5. What brand are the accessories?
If you also have these questions, you can contact me for more details.
