Drilling And Milling Holes Aluminium Door And Window Making Machine CNC

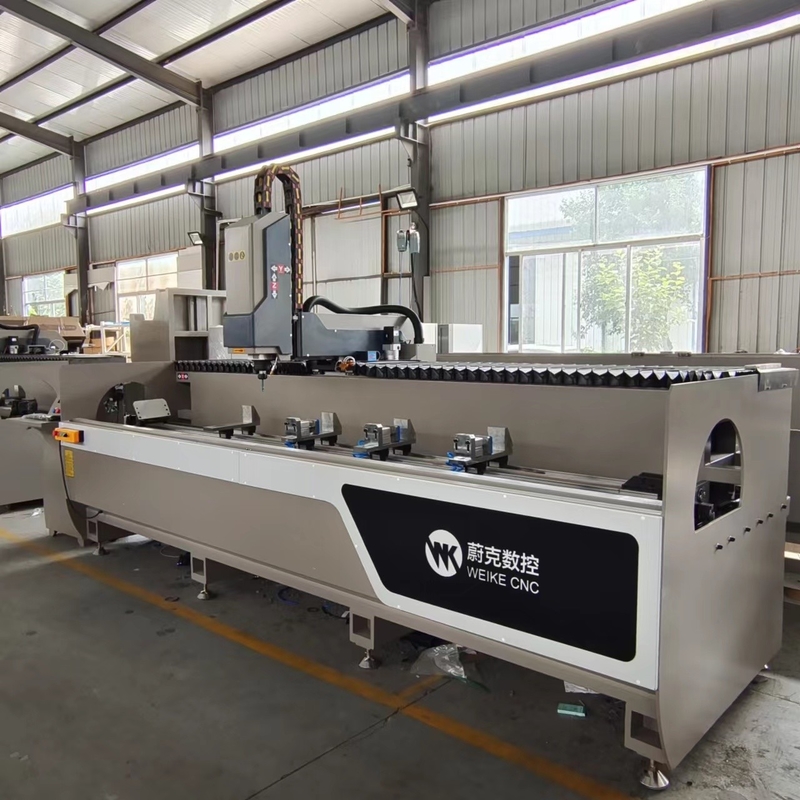

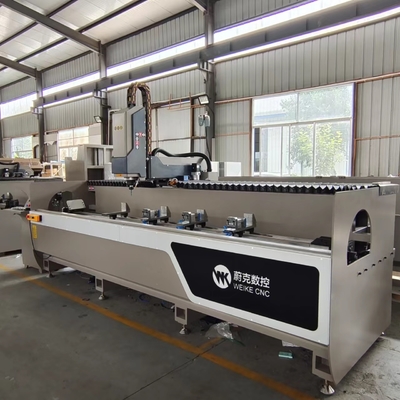

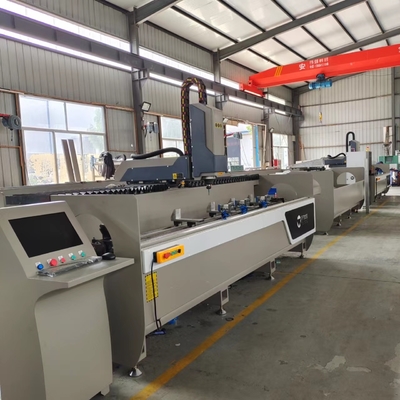

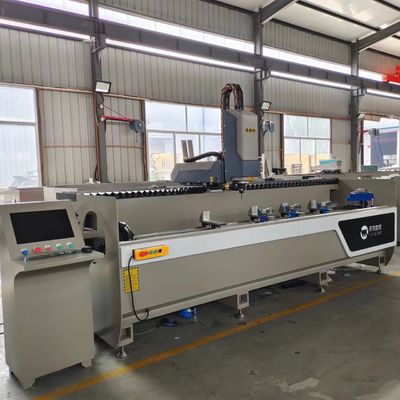

           Aluminum Profile 3 Axis CNC Drilling Milling Machine

1 Specifications

1.1 It is suitable for drilling, slot milling, round hole, special-shaped hole, lock hole, hinge

hole of narrow side door, hinge of heaven and earth, slotting and digging of aluminum alloy profiles.

1.2 The system adopts CNC control system, which supports the import of CAD graphics.

1.3 Using high-precision electric spindle, high precision, good safety and high reliability.

1.4 The X axis adopts high-precision rack drive, and the Y and Z axis adopts high-precision

screw drive, which has stable transmission and high precision.

1.5 Graphical programming, simple operation and high efficiency

1.6 The three-axis full servo motor truly realizes the high-efficiency and stable three-axis linkage.

2.  Samples Holes After Working:

Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped

holes for windows and doors, curtain wall alloy profiles

Milling all type holes on aluminium profile

3. Machine Details

3.1 Main Spindle: 6KW electric spindle

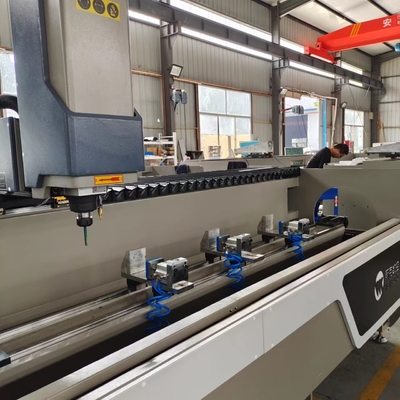

3.2Fixture (Clamps)

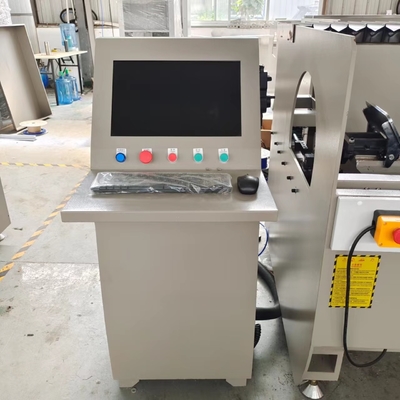

3.3 Control Panel

Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
