Product Details:
|
| Power Supply: | Customized | Air Pressure: | 0.6~0.8MPa |
|---|---|---|---|
| Rotating Speed: | 18000/min | Weight: | 1460KG |

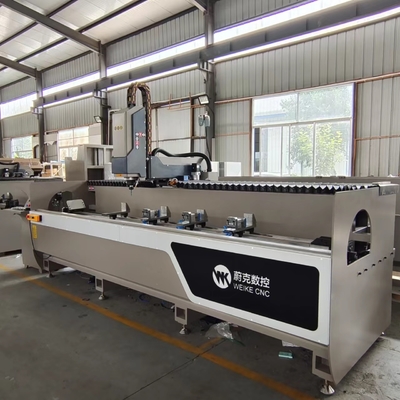

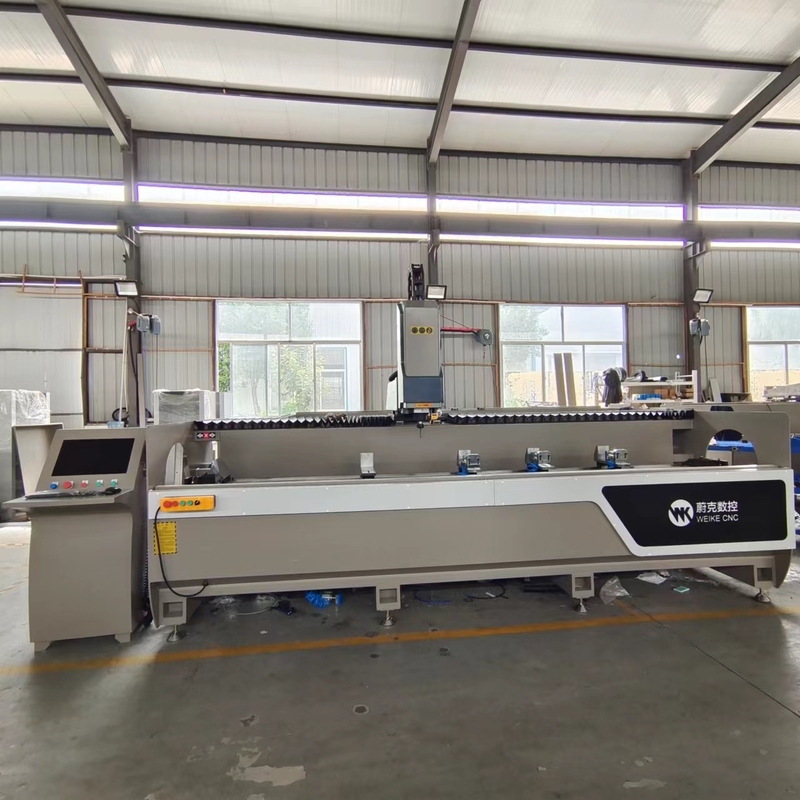

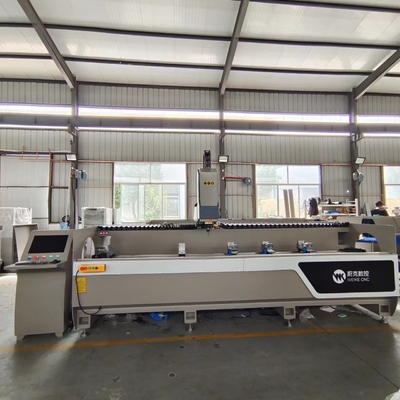

| Product Name: | CNC Drilling Milling Machine | Name: | Drilling And Milling Holes Aluminium Door And Window Making Machine |
| Highlight: | customized cnc drilling and milling machine,aluminum cnc drilling and milling machine,window profile cnc drilling milling machine |
||
1 Specifications
1.1 It is suitable for drilling, slot milling, round hole, special-shaped hole, lock hole, hinge
hole of narrow side door, hinge of heaven and earth, slotting and digging of aluminum alloy profiles.
1.2 The system adopts CNC control system, which supports the import of CAD graphics.
1.3 Using high-precision electric spindle, high precision, good safety and high reliability.
1.4 The X axis adopts high-precision rack drive, and the Y and Z axis adopts high-precision
screw drive, which has stable transmission and high precision.
1.5 Graphical programming, simple operation and high efficiency
1.6 The three-axis full servo motor truly realizes the high-efficiency and stable three-axis linkage.
| Product Parameter | |
| Power supply | 380V/50Hz |
| Spindle power | 6KW |
| Spindle speed | 0-18000r/min |
| Working pressure | 0.5~0.8MPa |
| X-axis running speed | 0-60 m/min |
| Y-axis running speed | 0-40 m/min |
| Z-axis running speed | 0-30 m/min |
| Processing range | 130(W)×150mm(H) |
| Dimensions | 4000×2000×2600mm |
| Weight | 1100Kg |
Round Holes, Slot holes, Key holes, Water slots, Square Holes, special-shaped
holes for windows and doors, curtain wall alloy profiles
Milling all type holes on aluminium profile
3.1 Main Spindle: 6KW electric spindle

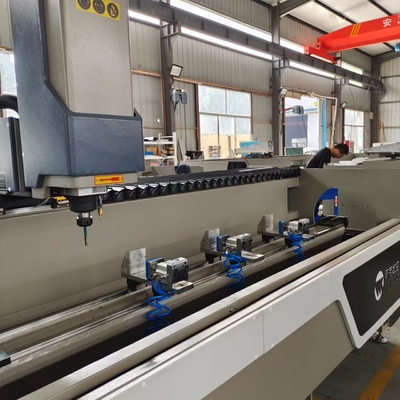

3.2Fixture (Clamps)

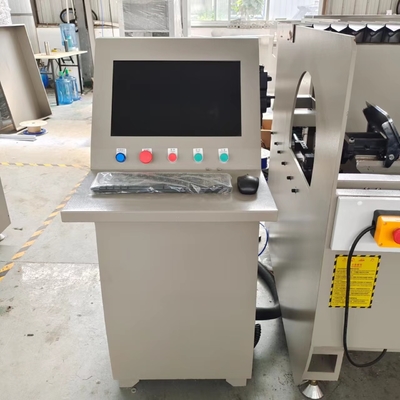

3.3 Control Panel
