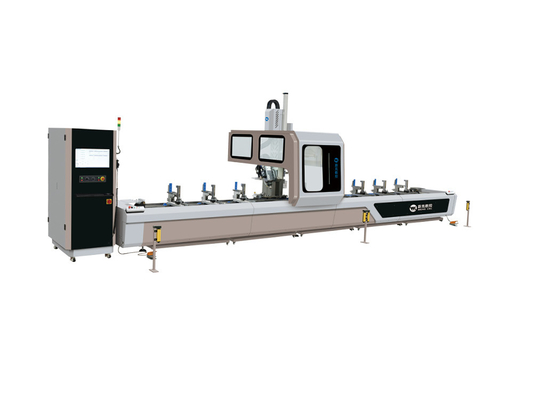

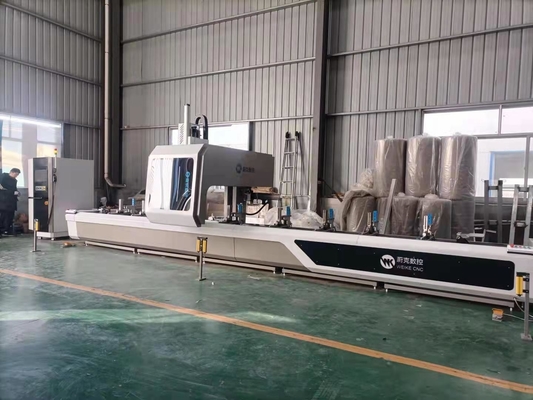

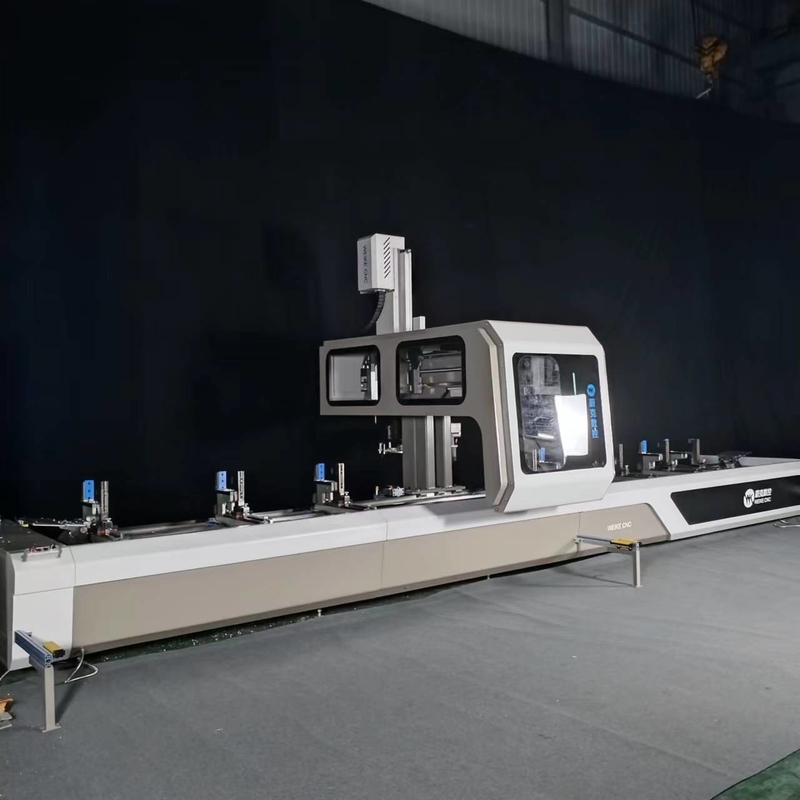

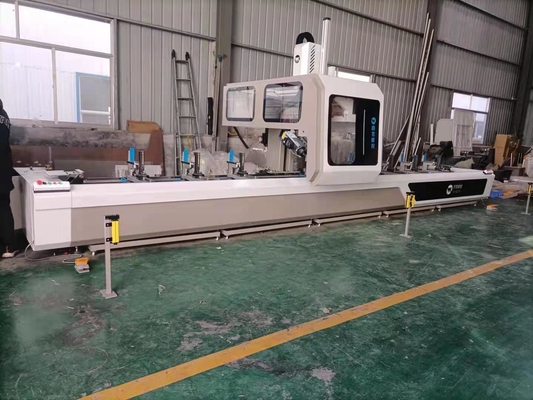

6500mm Curtain Wall Machine Aluminum 4 Axis CNC Machining Center

                               6500mm 4 Axis CNC Machining Center For Aluminum Profile

This 4 Axes CNC Maching Cente is designed special for working with aluminum material. Can drilling Milling tapping cutting on alloy material. Can working with 6500mm length profile, and have 12 sets disc tool shank with automatic tool changer.

1. Main Feature

● The machine can realize the clamping of raw materials at one time, and according to the processing needs, it can complete the cutting, milling end face tenon, milling key hole slot, running trough, air pressure balance hole, installation hole and other multi-process processing to meet customers' requirements for doors, windows, curtain walls, and sun rooms. , Personalized customization of industrial aluminum profiles.For a variety of aluminum, copper, PVC, industrial profiles and other complex parts processing.

● The machine is equipped with an industrial numerical control system, dedicated CAD-CAM editing software for three-dimensional modeling display, automatic tool setting, which can optimize the travel path. It can complete continuous automatic milling of different specifications and sizes of profiles, with powerful functions. CAD drawings can be imported into the system for convenient and simple, and can be equivalent to domestic and foreign doors, windows, and curtain wall system software.

●It is suitable for the processing of complex parts such as various aluminum, copper, PVC, industrial profiles, building curtain walls, and sun rooms.

● high-satisfactory bus servo motors, ball screws, linear courses and bearings are used to make certain that the gadget has excessive processing accuracy, excessive balance and reliability. The feed motion is pre-stretched to make certain the steadiness of the machining accuracy.

●Fixture automated optimization function, automated avoidance or early caution processing whilst the clamping function interferes with the processing function.

● The left and proper partitioned layout, with positioning plates at the left and proper, can entire interactive feeding with out preventing the device and enhance processing efficiency.  This device adopts excessive-pace electric powered spindle imported from Italy, that could entire the processing of any perspective on the alternative 3 facets besides the bottom. Vertical disc kind device magazine (12 positions).

● The centralized automatic feed lubrication method with quantitative timing ensures the stability of the machine tool accuracy and automatic micro atomization cooling.

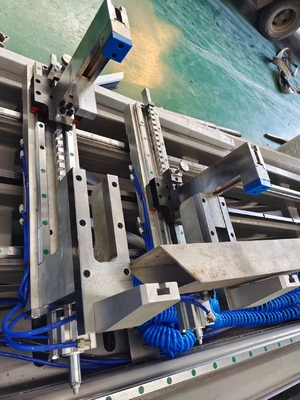

● The pneumatic clamping workbench is adopted to increase the loading and unloading speed.

● The fuselage adopts grating safety protection function to ensure safe operation.

2.  Samples Holes After Working:

3. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
