Aluminum Notching Saw Machine 150mm Aluminum Window Making Machine

Aluminum Notching Saw Machine 150mm Aluminum Window Making Machine
Aluminum Notching Saw Machine 150mm Aluminum Window Making Machine

Large Image :  Aluminum Notching Saw Machine 150mm Aluminum Window Making Machine

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WJK-500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10500 USD
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 20 Sets / Month
Contact Now

Aluminum Notching Saw Machine 150mm Aluminum Window Making Machine

Description
Power: 2.2KW×2 Operation Air Pressure: 0.5~0.8MPa
Sawing Range: 150mm Saw Blade Diameter: 500mm
Highlight:

0.8MPa Aluminum Notching Saw Machine

,

Aluminum Notching Saw Machine 150mm

,

150mm Aluminum Window Making Machine

                  aLUMINUM PROFILE NOTCHING SAW

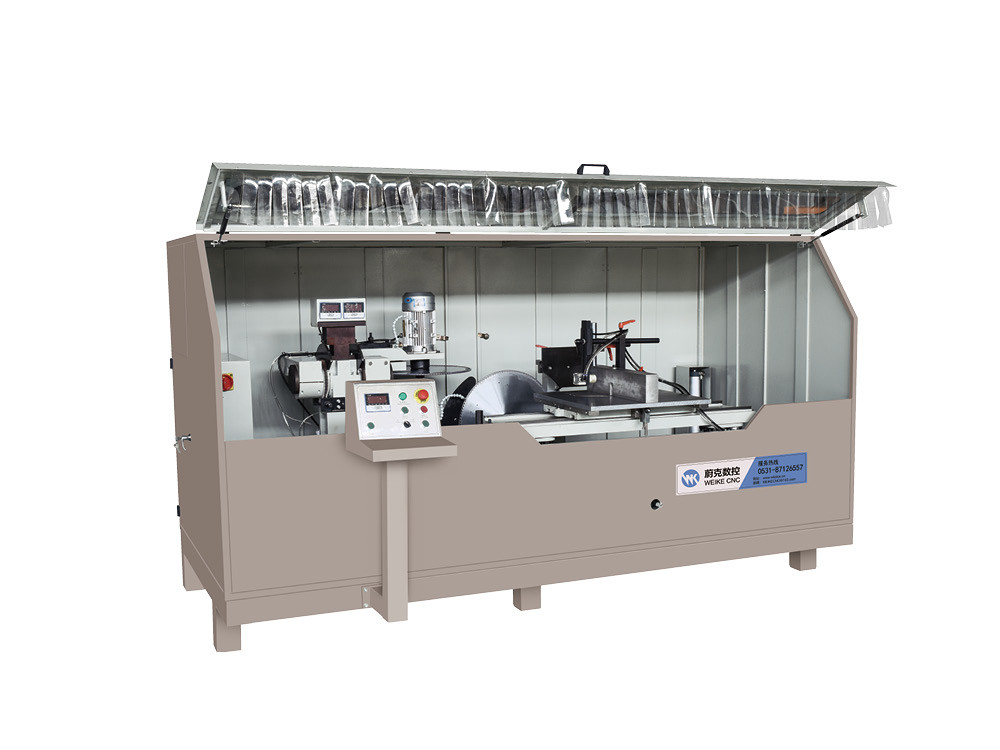

The aluminum curtain wall interface cutting saw is used for processing the end angle of aluminum curtain wall and daylighting skylight profile. It is simple to operate, reliable in performance, advanced in technology, and easy to maintain.


Aluminum Notching Saw Machine 150mm Aluminum Window Making Machine 0

Main Feature


●The aluminum curtain wall interface cutting saw adopts a spindle motor, a high-precision motor is directly connected to the saw blade, and the hard alloy saw blade is used to cut more stably, with high production efficiency and high processing accuracy.

●The aluminum curtain wall interface cutting saw is equipped with a magnetic ruler control system to realize the digital display of the cutting angle and the height of the worktable.

 Power supply

Power

Operatlcn air pressure

Sawing range

Saw blade specification



Sawing angle



Maximum speed



Dimension
380V/50HZ
2.2KW×2
 0.5-0.8MPa 150mm
Φ500×4.4×Φ30×120Tmm

-45° ~45°

2850r/min 3140x1380x1800mm



Machine Details

Aluminum Notching Saw Machine 150mm Aluminum Window Making Machine 1Aluminum Notching Saw Machine 150mm Aluminum Window Making Machine 2





Tag:

6500mm Curtain Wall Machine,

Curtain Wall Machine 0.8MPa,

RTCP Curtain Wall Machine
