Product Details:
|
| Saw Blade Specification: | Φ550 | Sawing Angle: | 45 And 90 Degree |
|---|---|---|---|
| Lubrication System: | Automatic Lubrication | Maximum Cutting Section: | 175 * 150mm |
| Highlight: | 14.6kw CNC Aluminium Window Machine,CNC Aluminium Window Machine 50Hz,50Hz cnc Aluminum Cutting Saw Machine |
||
Aluminum CNC cutting centre s suitable for high-efficiency sawing processing of aluminum door and window profiles, and can simultaneously perform 45°, 90°, and 45° and 90° combined angle sawing processing of profiles. The machine is designed for cutting PVC profiles with maximum cutting speed and highest quality. The machine performs the operation of profile loading from the bars stock, cutting and unloading of piece, in complete autonomy and without the assistance of the operator.
| Total power | 14.6kw |
| Power supply | 380V/50Hz (Can make according your voltage) |
| Air pressure | 0.6~0.8MPa |
| Motor rotary speed | 3000r/min |
| Saw blade specification | φ550 |
| Cutting angle | 90°, 45° |
| Cutting length | 300-6500mm |
| Maximum cutting section | 175 * 150mm |
| Lubrication system | automatic lubrication |
| Feeding return speed | 0~50M |
| Feeding speed | 0~50M |
| Saw blade lifting speed | 0~10M |
| Overall dimension | 13500*3000*2600mm |
| Weight about | 4900kg |
1. Feartures

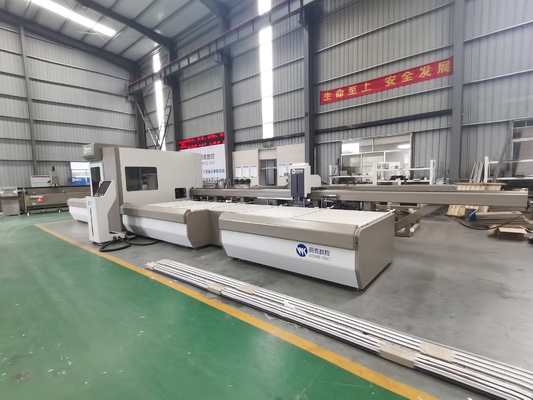

1. Aluminum cutting centre is 13.5 meters long, 3 meters wide, 2.6 meters high, and weighs 5 tons. The whole machine is divided into feeding section, manipulator feeding, sawing section and unloading section.

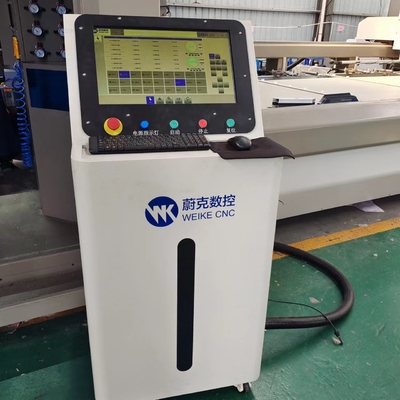

2. Adopt German industrial PA system. Support remote assistance
It can be connected with door and window software (German KLAES, Chuango, Duter, Xingel, Schüco and other domestic and foreign door and window and curtain wall software) to support connected intelligent production.
3. Cutting unit structure innovation
Saw blade eight cross design, continuous feeding without pulling Save time, improve efficiency, reduce error and wear
Feeding speed: 0~80M
Discharge speed: 10-12S/piece
Saw blade lifting speed: 0~ 60M

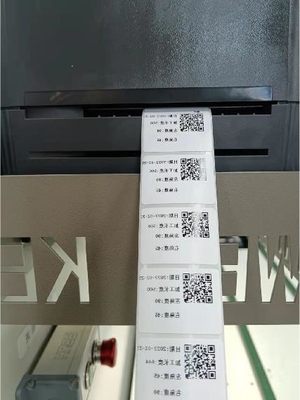

4. Equipped with barcode printer
Real-time printing of material identification
2.Other products
3.After working samples
4. Workshop showing
5. Our services
1.If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day.
2. Provide free training when come to factory study.
Because of Covid-19, we provide:
1. Before delivery: Machine operate manual, program software user manual and English videos.
2. Before delivery: Face to face video training online between your operator and our engineer.
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Machine Operate Manual Will Be Provided
Machine Operate Video Will Be Provided
6.Packaging Details
1. Inside is plastic film.
2. Under the equipment is the iron tray fixed, or choose wooden box packing
3. Can also be based on customer needs for packaging QingDao Port
7. Any Questions?
1.Are there training instructions?
2. How long is the warranty?
3. Why is it called Aluminum cutting centre machine ? What are the functions?
4. Can be customized according to my needs?
5. What brand are the accessories?
If you also have these questions, you can contact me for more details.
