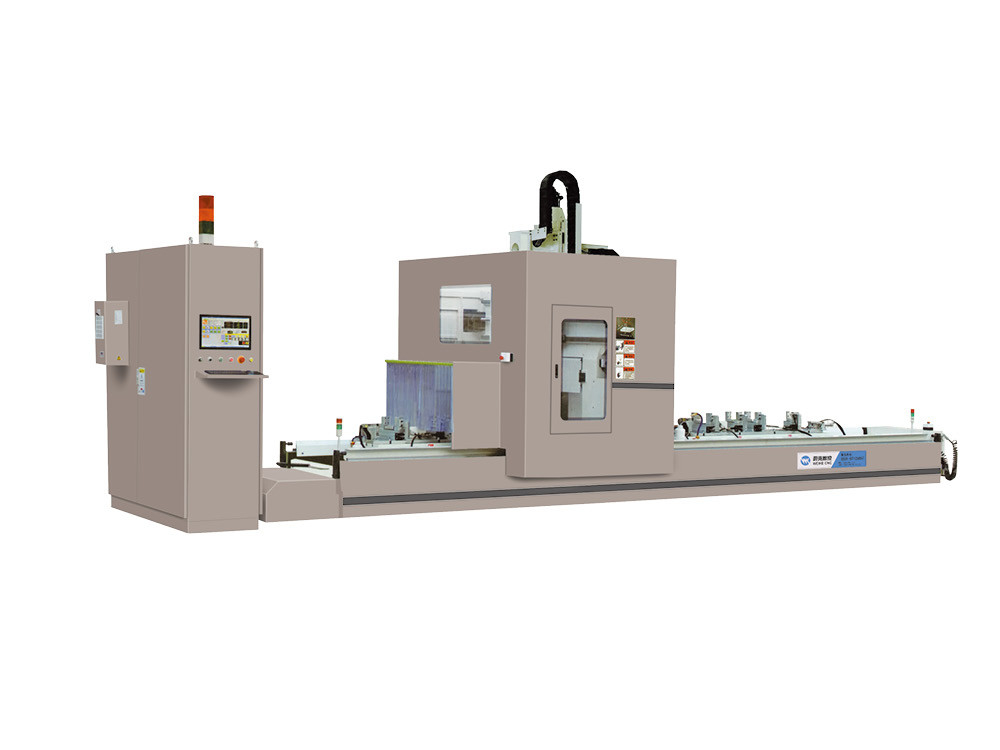

5 Axis Aluminum CNC Machining Center

5 Axis Aluminum CNC Machining Center
5 Axis Aluminum CNC Machining Center

Large Image :  5 Axis Aluminum CNC Machining Center

Product Details:
Place of Origin: China
Brand Name: WEIKE CNC
Certification: CE ISO
Model Number: WSJ5-CNC-7000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 146500USD
Packaging Details: Suitable for shipping
Delivery Time: 70 Working Days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 2 Sets / Month
Contact Now

5 Axis Aluminum CNC Machining Center

Description
Power Supply: 380V/50HZ (Customized) Power: 18KW
Air Pressure: 0.6~0.8MPa Rotating Speed: 24000/min
X Axis Journey: 7000mm Y Axis Journey: 1000mm
Z Axis Journey: 550mm B Axis Working Speed: Max. 7° /'
C Axis Working Speed: Max. 7° /' X Axis Speed: 60M/min
Y/Z Axis Speed: 40M/min Overall Dimension: 99500*3000*2600mm
Tool Magazine: 12 Automatic Tool Changer

PRODUCT DESCRIPTION



This machine is meant for automatic cutting, milling, drilling, finish face milling, projection milling, Key holes milling, slots, running trough, installation holes and alternative multi-process process to fulfill customers' needs for doors, windows, curtain walls, and sun rooms and business aluminum.

5 Axis Aluminum CNC Machining Center 0
1. Main Feature
● The machine can realize the clamping of raw materials at one time, and according to the processing needs, it can complete the cutting, milling end face tenon, milling key hole slot, running trough, air pressure balance hole, installation hole and other multi-process processing to meet customers' requirements for doors, windows, curtain walls, and sun rooms. , Personalized customization of industrial aluminum profiles.
● It is suitable for the processing of complex parts such as various aluminum, copper, PVC, and industrial profiles.
● The use of moving beam and moving column gantry frame structure makes the operation more stable and improves the processing rigidity of the machine tool.
● High-quality imported servo motors, ball screws, linear guide pairs and bearings are used to ensure that the equipment has high processing accuracy, high stability and reliability. The feed movement is pre-stretched to ensure the stability of the machining accuracy.
● This machine adopts an imported five-axis milling head, which can complete any angle processing on all surfaces except the bottom surface. Row tool type automatic tool change, optional vertical disc type tool magazine.
● The centralized automatic feed lubrication method with quantitative timing ensures the stability of the machine tool accuracy.
● The pneumatic clamping workbench is used to increase the loading and unloading speed. Optional T-shaped workbench.
● Adopt safety protection function to ensure safety
2.  Samples Holes After Working:
5 Axis Aluminum CNC Machining Center 15 Axis Aluminum CNC Machining Center 25 Axis Aluminum CNC Machining Center 35 Axis Aluminum CNC Machining Center 4



3. Provide Service:
1. Provide free training when come to factory study
2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day
Because of Covid-19, we can also provide:
1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos
2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)
3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
Contact Us For More Information:
Shandong Weike CNC Machinery Co., Ltd.
Add: Hongyu Technology Industrial Park, Changqing District, Jinan, Shandong, China
Sales Director: Emily
E-mail: info@jnfasca.com
Mobile/What's app : +86-155 5416 2658
