Product Details:
|
| PcMersuppt/: | 380V/50HZ | Power: | 12KW |
|---|---|---|---|
| Air Pressure: | 0.5-0.8/MPa | Rotating Speed: | 24000/mh |
| English Manual: | Provided | Online Training: | Provided |

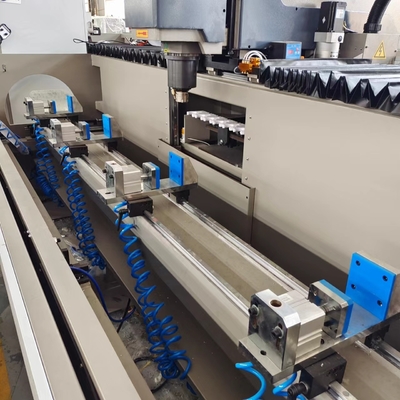

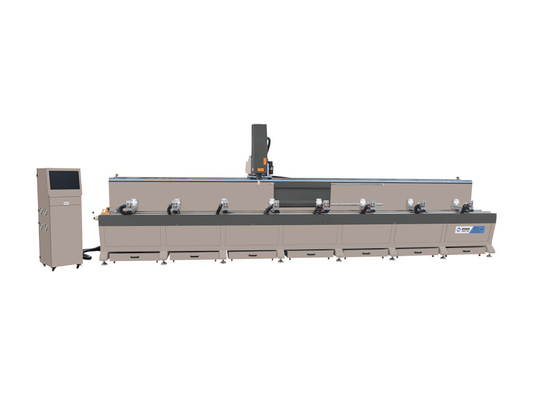

Suitable for processing of installation holes, launder slots, lock holes on aluminum alloy profiles. and Processing of all the holes and launder slots on one side after once loading, working area can reach to 7000mm
Main Feature
It is appropriate for the process of spherical holes, slot boles, key holes. speciaPshaped holes of commercial metal alloy profiles, doors and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and alternative processes.

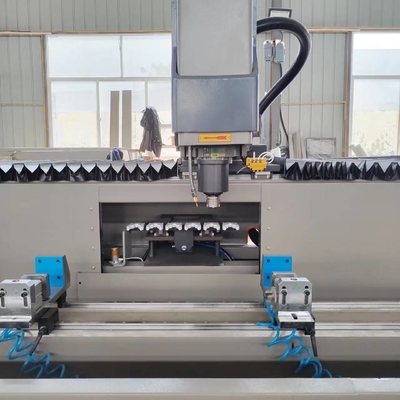

the most shaft adopts the foreign Italian air-cooted main shaft the ability is 9KW. the speed is 24000 rpm. hiji precision, sensible safety and high reiability.
• Equipped with skilled CAD-CAM programming software system for industrial numerical management system, rt will be connected to domestic and foreign door and window curtain wall software and ERP, CAD graphics import powerful functions, straightforward operation and high efficiency.
• the quality 6-bit/8-bit tool magazine will reaize continuous and uninterrupted machining.
• the automated mercury oil offer system is adopted, and also the cutter adopte a system-controled spray cooling the most components of the machine adopt steel structure, all of that have undergone vibration aging and stress relief treatment.
Main Specification and Technical Paramete
|
Power |
Power | Air pressure | Rotating speed |
X-axis speed |
Y-axis speed |
Z-axis speed |
X axis speed |
Y/Z axis speed | Ovefai dimension |
| 380V/50HZ | 12KW | 0.5-0.8/MPa | 24000/mh | 6500mm | 4000 | 300mm | 60M/mm | 40M/min | 7000x1800x26005 |
