3000mm Automatic Tool Change 3+1 Axis Aluminium Profile CNC Machining Centres

Large Image : 3000mm Automatic Tool Change 3+1 Axis Aluminium Profile CNC Machining Centres

Product Details:

Place of Origin:	China
Brand Name:	WEIKE CNC
Certification:	CE ISO
Model Number:	WSZH-CNC-3000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	30500USD
Packaging Details:	Plywood Box
Delivery Time:	10 Working Days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	20 Sets / Month

Contact Now

3000mm Automatic Tool Change 3+1 Axis Aluminium Profile CNC Machining Centres

Description

Power:	12KW	Air Pressure:	0.6~0.8MPa
X Axis Journey:	3000mm	Y Axis Journey:	400mm
Z Axis Journey:	300mm	X Axis Speed:	60M/min
Y/Z Axis Speed:	40M/min	Overall Dimension:	400020002600mm
Highlight:	3+1 Axis Aluminium Profile CNC Machining Centres , 3000mm Aluminium Profile CNC Machining Centres , 3000mm Aluminium Profile Machining Centres

3000mm ATC Aluminum Profile CNC Machining Center

Suitable for processing of installation holes, launder slots, lock holes on aluminum alloy profiles. And Processing of all the holes and launder slots on one side after once loading, high efficiency.

1. Main Feature

1CNC router Suitable for processing of installation holes, launder slots, lock holes on aluminum alloy profiles.

2Processing of all the holes and launder slots on one side after once loading, high efficiency.

3Adopts Germany PA CNC system, offers friendly operation surface.

4Adopts Italian high speed and efficiency spindle, ensures perfect performance in various kinds of processing.

5Adopts high quality AC servo motor, ball lead screws and linear guide track, ensures high precision.

2. Machine Details

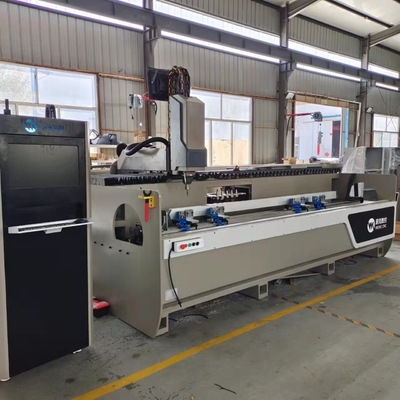

3000mm Automatic Tool Change 3+1 Axis Aluminium Profile CNC Machining Centres 1

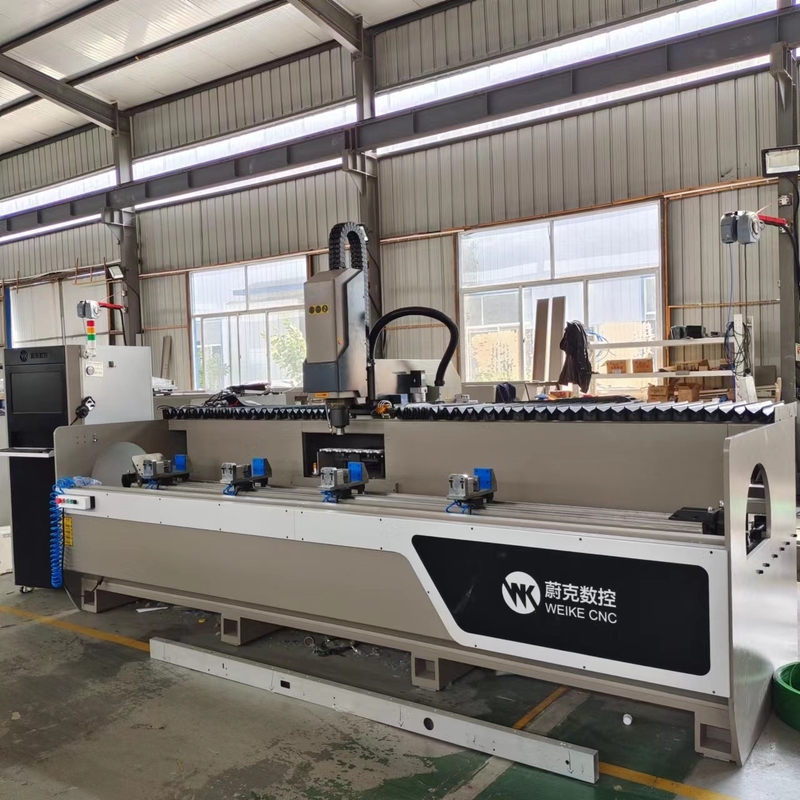

3000mm Automatic Tool Change 3+1 Axis Aluminium Profile CNC Machining Centres 2

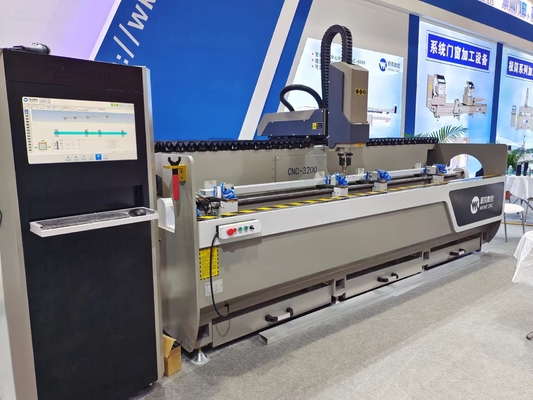

3000mm Automatic Tool Change 3+1 Axis Aluminium Profile CNC Machining Centres 3

3. Samples Holes After Working:

Tag:

Contact Person: Emily Wang

Tel: +86 155 5416 2658
