Product Details:
|
| Power Supply: | 380V/50HZ (Customized) | Power: | 12KW |
|---|---|---|---|
| Air Pressure: | 0.6~0.8MPa | Rotating Speed: | 24000/min |
| X Axis Journey: | 3000mm | Y Axis Journey: | 400mm |
| Z Axis Journey: | 300mm | X Axis Speed: | 60M/min |
| Y/Z Axis Speed: | 40M/min | Overall Dimension: | 4000*2000*2600mm |
| Tool Magazine: | 6/8 Automatic Tool Changer |

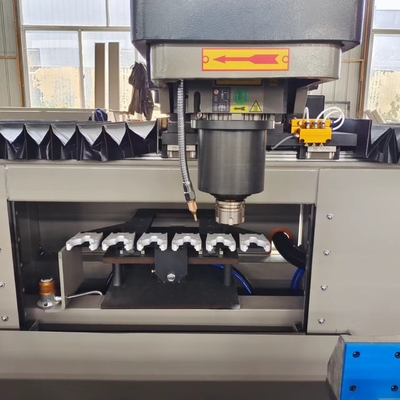

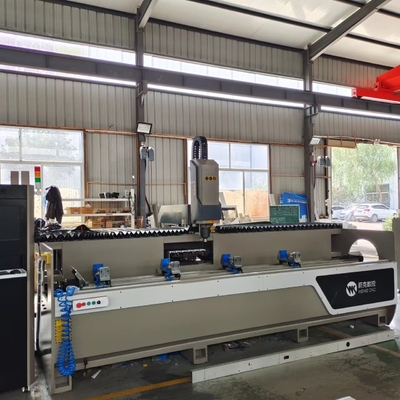

This is for drilling Millng tapping holes on window door profiles as well as curtain wall profiles. Machine can working with 3 sides on profile. and worktable turn from -90 to +90 degree, 180 degree working.
| Parameter | |
| Model: | WSZ-CNC |
| X-Axis stroke | 2500-7000mm |
| Y-Axis stroke: | 400 mm |
| Z-Axis stroke: | 300 mm |
| SPINDLE | |
| Spindle speed: | 24000 r.p.m |
| Spindle taper: | ISO-30 |
| TOOLS | ER-32 |
| Tool changer format: | Linear Type |
| Tool capacity: | 6 Sets |
| MOVING SPEED | |
| X-Axis moving speed: | 60 m/min |
| Y-Axis moving speed: | 20 m/min |
| Z-Axis moving speed: | 13.5 m/min |
| Feeding Speed: | 15000mm/min |
| POWER OF MOTOR | |
| Spindle driven motor: | 9.6 kw |
| X/Y/Z driven motor: | 1.0/1.0/0.75 kw |
| LUBRICATING SYSTEM | |
| Cooling system: | Spraying cooling system |
| Lubricating system: | Grease |
| PRECISION | |
| Position precisionof X Axis: | 0.05 mm |
| Position precisionof Y Axis: | 0.03 mm |
| Position precisionof Z Axis: | 0.02 mm |
| Repeating precision(X/Y/Z): | 0.03mm |
| SIZE OF MACHINE | |
| Air pressure: | 0.6~0.8MPa |
| Operation system: | Germany PA Automation System |
| Height: | 1700 mm |
| Area: | 4000-7500MM |
| Weight: | 2500-4500 kg |
