Product Details:
|
| Power Supply: | 380V/50HZ (Customized) | Power: | 12KW |
|---|---|---|---|
| Air Pressure: | 0.6~0.8MPa | X Axis Journey: | 3000mm |
| Y Axis Journey: | 400mm | Z Axis Journey: | 300mm |
| X Axis Speed: | 60M/min | Y/Z Axis Speed: | 40M/min |
| Tool Magazine: | 6/8 Automatic Tool Changer | English And Online Training: | Provided |

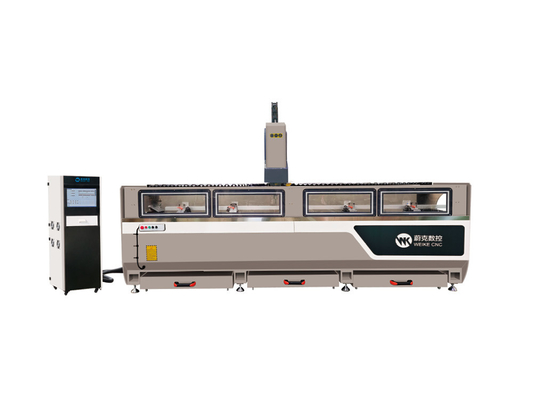

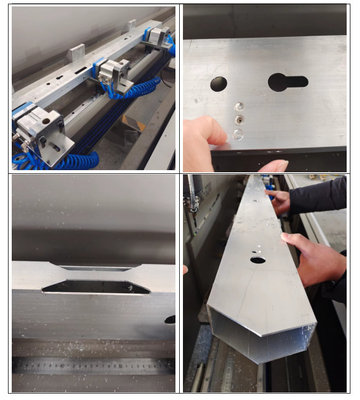

This machine is designed for drilling milling round holes, oblong holes, keyholes, water slots, special-shaped holes, etc. Special suitable for window door profile section, curtain wall profile material.
● Equipped with professional CAD-CAM programming software for industrial numerical control system, it can be connected to domestic and foreign door and window curtain wall software and ERP, CAD graphics import, powerful functions, simple operation and high efficiency.
● The worktable is turned 180°, -90°~0°~+90°, the profile can be processed on three sides at one time. When processing deep through holes (shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality. .
● The standard 6-bit/8-bit tool magazine can realize continuous and uninterrupted machining.
● The automatic mercury oil supply system is adopted, and the cutter adopts a system-controlled spray cooling device.
● The main parts of the machine tool adopt steel structure, all of which have undergone vibration aging and stress relief treatment.
| Parameter | |
| Model: | WSZ-CNC |
| X-Axis stroke | 2500-7000mm |
| Y-Axis stroke: | 400 mm |
| Z-Axis stroke: | 300 mm |
| SPINDLE | |
| Spindle speed: | 24000 r.p.m |
| Spindle taper: | ISO-30 |
| TOOLS | ER-32 |
| Tool changer format: | Linear Type |
| Tool capacity: | 6 Sets |
| MOVING SPEED | |
| X-Axis moving speed: | 60 m/min |
| Y-Axis moving speed: | 20 m/min |
| Z-Axis moving speed: | 13.5 m/min |
| Feeding Speed: | 15000mm/min |
| POWER OF MOTOR | |
| Spindle driven motor: | 9.6 kw |
| X/Y/Z driven motor: | 1.0/1.0/0.75 kw |
| LUBRICATING SYSTEM | |
| Cooling system: | Spraying cooling system |
| Lubricating system: | Grease |
| PRECISION | |
| Position precisionof X Axis: | 0.05 mm |
| Position precisionof Y Axis: | 0.03 mm |
| Position precisionof Z Axis: | 0.02 mm |
| Repeating precision(X/Y/Z): | 0.03mm |
| SIZE OF MACHINE | |
| Air pressure: | 0.6~0.8MPa |
| Operation system: | Germany PA Automation System |
| Height: | 1700 mm |
| Area: | 4000-7500MM |
| Weight: | 2500-4500 kg |
Standard Equipment
Processing tools (6 pieces)
Cabinet offering safety in processing zone
Chips Collect Box
Automatic Lubrication
