Performing Milling, Drain Channel Opening, Drilling, Marking And Milling Processes On Aluminum And PVC Profile

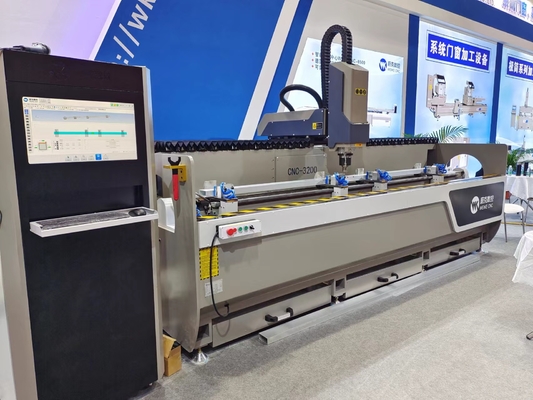

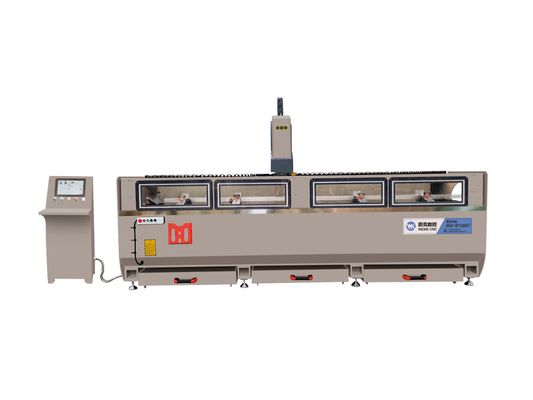

                                 3200mm ATC Aluminum Profile CNC Machining Center

For processing round holes, slot holes, key holes, water slot, special-shaped holes etc.

1. Main Feature For Aluminium Drilling Milling Machines

● It is relevant to the technique of round hole, oblong hole, keyhole, special shaped hole of aluminum alloy profile of trading company, door, stepped window, aluminum alloy profile for curtain wall and milling, chamfering, engraving and absolutely extraordinary processing of aluminum profile.
● The front axle adopts an Italian front axle with a fresh electric drive with an output of 9 kW and a speed of 24000 revolutions/minute. it's over-precision, over-safety, and over-reliability.
● Equipped with expert enterprise numerical management equipment CADCAM programming system, ready to be home and abroad ERP and computer code programs for doors and windows, CAD photo import, effective functions, simple operation and high performance.
● Working table rotated 180°, 90°~0°~+90°, the profile is also processed in 3 directions at the same time.After the deep holes (shaped holes) are processed, the deep hole process can also be distinguished by rotating the table to improve performance and high quality. .
● The popular 6-bit/8-bit device loader can recognize continuous and uninterrupted processing.
● A machine-driven mercury oil supply device is adopted, and therefore the cutter adopts a spray cooling device managed by an apparatus.
● The dominant elements of the device are bi-metallic structures, all treated by skillful vibration aging and pressure relief.

Standard Equipment

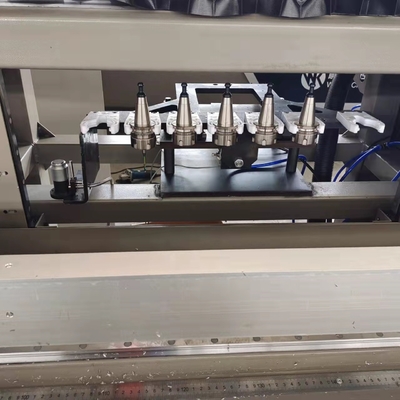

• Processing tools (6 pieces)

• Cabinet providing protection in processing zone

• Chips Collect Box

• Automatic Lubrication

​

Optional Equipment

• Automatic Moving Fixture

• Optional length on X-axis can working with 2500mm 3200mm 5500mm 6000mm etc

• Barcode reader

2. Specification and Parameter

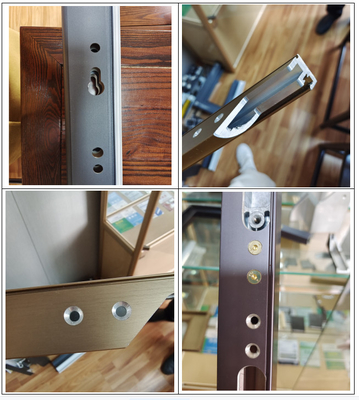

3. Sample Holes After Working:
