3 axes Profile Machining Center Is For Mill, Drill, And Tap Aluminum And Other Non-Ferrous Materials (

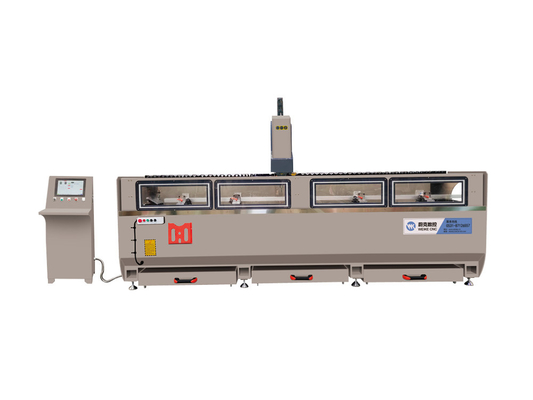

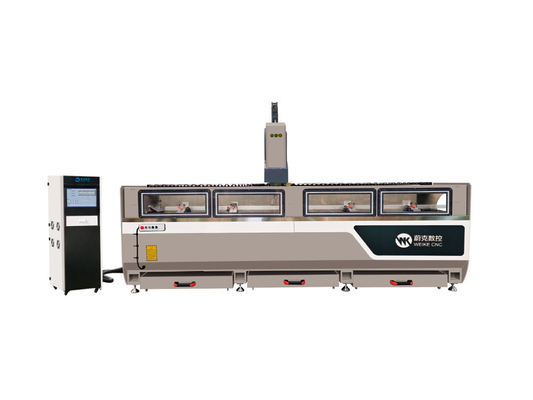

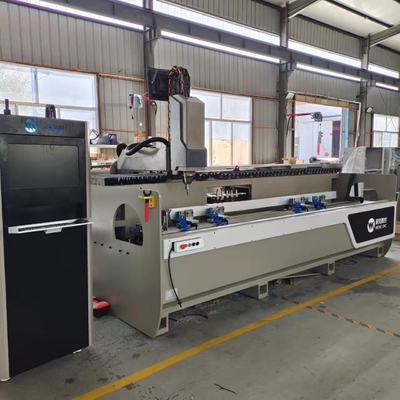

                                 3200mm ATC Aluminum Profile CNC Machining Center

3-Axis Profile Machining Center is built and designed to mill, drill, and tap Aluminum and
                     other non-ferrous materials (copper, brass, plastics)

1. Main Feature For Aluminium Drilling Milling Machines

● it is relevant for the technique of round holes, slot holes, key holes, special-shaped holes of commercial enterprise aluminium alloy profiles, doors companion degreed windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, craft engraving and absolutely exceptional processes.
● The foremost shaft adopts an Italian cool electric power-pushed foremost shaft with a energy of 9KW and a rotation tempo of 24000 revolutions/min. it is immoderate precision, excessive safety and immoderate reliability.
● Equipped with knowledgeable CAD-CAM programming coding system program for business numerical manage gadget, it's ready to be concerning home and overseas door and window curtain wall computer code program and ERP, CAD photos import, effective functions, easy operation and excessive performance.
● The work table is became 180°, -90°~0°~+90°, the profile is additionally methoded on 3 aspects at one time. once process deep via holes (formed holes), deep hollow process could also be distinguished through turning the table to spice up performance and high quality. .

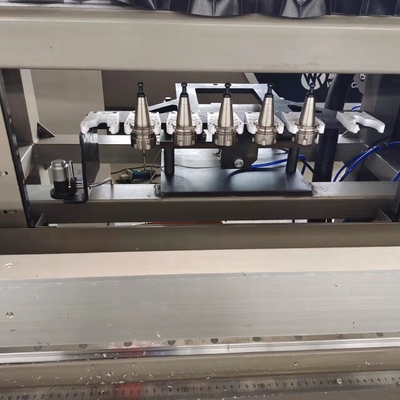

● the popular 6-bit/8-bit device magazine can recognise non-stop and uninterrupted machining.
● The machine-driven mercury oil deliver device is adopted, and therefore the cutter adopts a gadget-managed spray cooling device.
● The predominant elements of the gadget device undertake bimetallic structure, all of that have skillful vibration growing old and pressure alleviation treatment.

Standard Features & Equipment:

• Working lengths X axis 3 m (118 inch) possibility
• Y axis tour 3 hundred millimeter (11.eighty one inch)
• Spindle pace 24,000 rate
• Spindle motor 9 kW
• Tool holder ER32

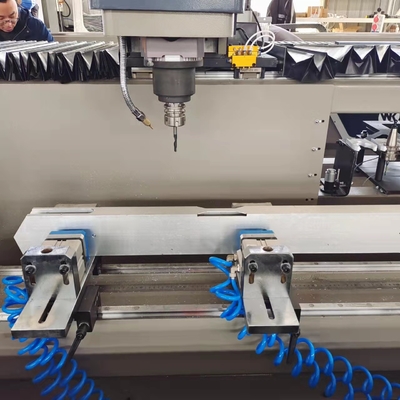

• Equipped with air clamps
• Waylube automatic lubrication system
• Mist Lubrication System
• Mitsubishi Servo Drives/
• Motors X, Y and Z axis are servo controlled​​

Optional Equipment

• Automatic Moving Fixture

• Optional length on X-axis can working with 2500mm 3200mm 5500mm 6000mm etc

• Barcode reader

2. Specification and Parameter

3. Sample Holes After Working:
