                                 3200mm ATC Aluminum Profile CNC Machining Center

Working center for aluminium profiles with 3 or 4 axes controlled, fully automatic management of machining

                                       such as drilling, milling and tapping

1. Main Feature For Aluminium Drilling Milling Machines

● It is suitable for the processing of round holes, slot holes, key holes, special-shaped holes of industrial aluminum alloy profiles, doors and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and other processes.

● The main shaft adopts an Italian air-cooled electric main shaft with a power of 9KW and a rotation speed of 24000 revolutions/min. It has high precision, good safety and high reliability.

● Equipped with professional CAD-CAM programming software for industrial numerical control system, it can be connected to domestic and foreign door and window curtain wall software and ERP, CAD graphics import, powerful functions, simple operation and high efficiency.

● The worktable is turned 180°, -90°~0°~+90°, the profile can be processed on three sides at one time. When processing deep through holes (shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality. .

● The popular 6bit/8bit device magazine recognizes continuous and uninterrupted processing.

● A machine-driven mercury oil supply device is adopted, and therefore the cutter adopts a spray cooling device managed by an apparatus.

● The dominant elements of the device are bi-metallic structures, all treated by skillful vibration aging and pressure relief.

Standard Features & Equipment:

• X-axis working lengths 118 Inches (3m) Option
• Y-axis Travel 11.81 Inches (300mm)
• Spindle speed 24,000 rate
• Spindle motor nine kW
• ER32 tool holder
• Fitted with pneumatic clamps
• Waylube automatic lubrication system
• Mist lubrication system
• Mitsubishi Servo Drives/Motors
• X, Y, and Z-axes are servo controlled​

Optional Equipment

• Automatic Moving Fixture

• Optional length on X-axis can working with 2500mm 3200mm 5500mm 6000mm etc

• Barcode reader

2. Specification and Parameter

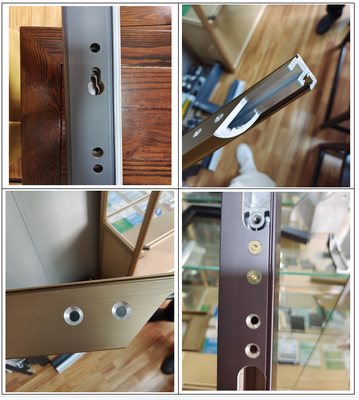

3. Sample Holes After Working:
