Drilling Milling Tapping Grooving Notching Sawing Milling On Aluminum Profile for curtain wall making

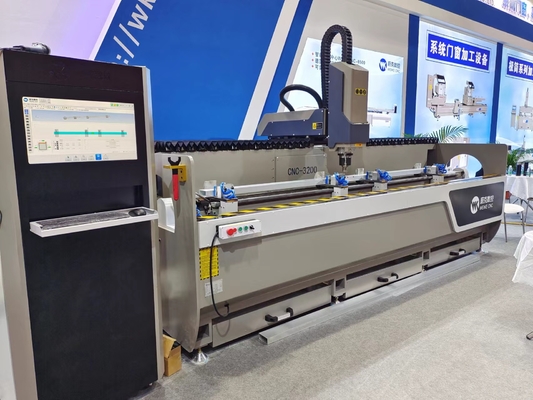

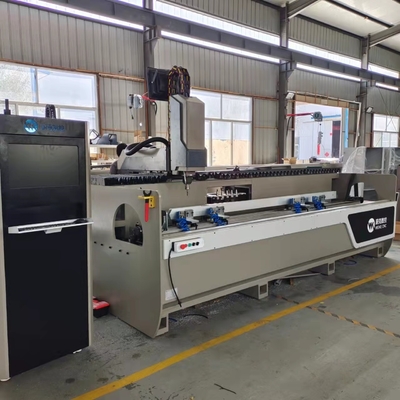

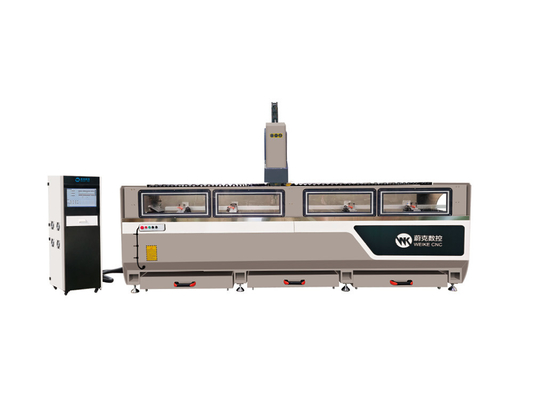

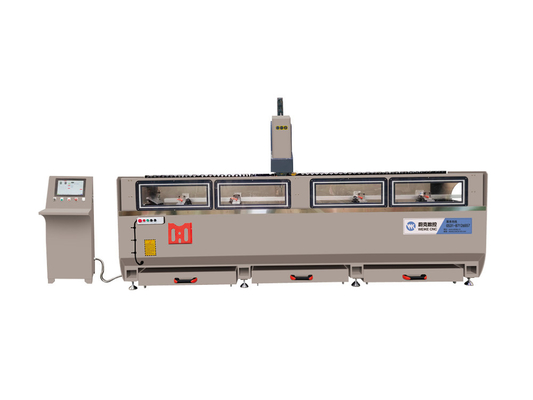

                                 3200mm ATC Aluminum Profile CNC Machining Center

Machining center for Al profiles with 3 controlled and absolutely automatic machining operations love drilling, milling, thread cutting, grooving, notching, sawing, and so forth

1. Main Feature For Aluminium Drilling Milling Machines

● it's applicable for the process of spherical holes, slot holes, key holes, special-formed holes of business aluminium alloy profiles, doorways associate degreed windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, craft engraving and completely different processes.

● The predominant shaft adopts an Italian cool electrical power-driven predominant shaft with a electricity of 9KW and a rotation pace of 24000 revolutions/min. it's excessive precision, high protection and excessive reliability.

● Equipped with knowledgeable CAD-CAM programming computer code program for commercial numerical manage gadget, it is able to be relating to home and overseas door and window curtain wall computer code program and ERP, CAD photos import, effective functions, simple operation and excessive performance.

● The work table is became 180°, -90°~0°~+90°, the profile is also processed on three aspects at one time. once process deep via holes (formed holes), deep hollow processing may be distinguished through turning the worktable to boost performance and high quality. .

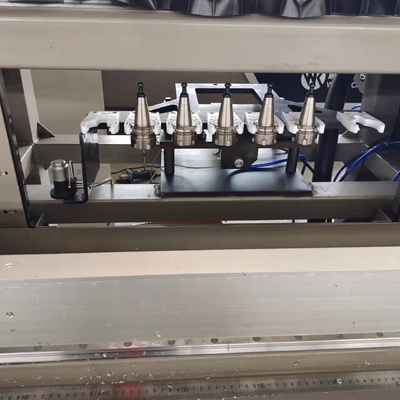

● the popular 6-bit/8-bit device magazine will recognise non-stop and uninterrupted machining.

● The machine-driven mercury oil deliver device is adopted, and therefore the cutter adopts a gadget-managed spray cooling device.

● The predominant elements of the gadget device undertake bimetallic structure, all of that have skillful vibration growing old and pressure alleviation treatment.

Standard Features & Equipment:

• Working lengths X axis three m (118 inch) possibility
• Y axis travel three hundred millimeter (11.81 inch)
• Spindle speed 24,000 rate
• Spindle motor nine kW
• Tool holder ER32

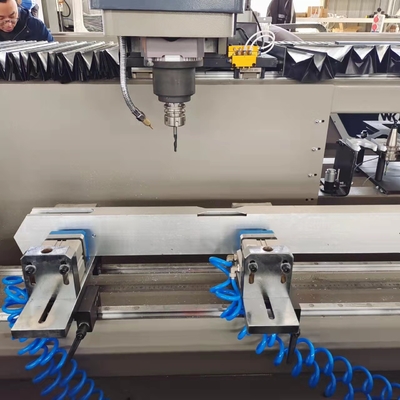

• Equipped with air clamps
• Waylube automatic lubrication system
• Mist lubrication system
• Mitsubishi servo drives /Motors
• X, Y and Z axes are servo controlled​

Optional Equipment

• Automatic Moving Fixture

• optional length on axis can in operation with 2500mm 3200mm 5500mm 6000mm etc

• Barcode reader

2. Specification and Parameter

3. Sample Holes After Working:
