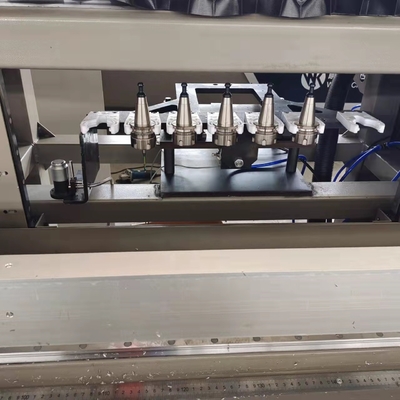

Aluminium Window Door Machine For CNC Drilling Milling Holes With ATC Function

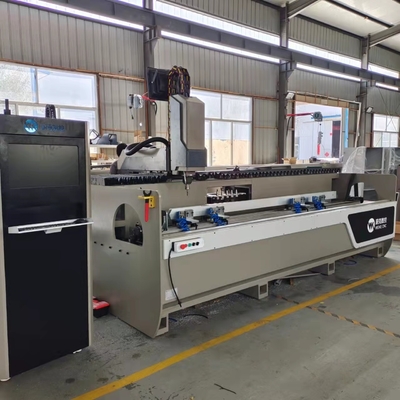

                                 3200mm ATC Alloy Section CNC Machining Center

3 +1 axis Aluminium Profile CNC Machining Center is suitable for aluminum doors and windows and curtain wall installation hole, water tank, and the keyhole shaped hole, tapping and end milling. This machine worktable can turn from -90 to 0 to +90 degree, so can drilling and milliing profile 3 sides.

1. Main Feature For Aluminium Drilling Milling Machines

● It is suitable for the processing of round holes, slot holes, key holes, special-fashioned holes of industrial aluminum alloy profiles, doors and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and one of a kind processes.

● Equipped with professional CAD-CAM programming software program application for industrial numerical control system, it may be associated with domestic and distant places door and window curtain wall software program application and ERP, CAD photos import, powerful functions, smooth operation and immoderate overall performance.

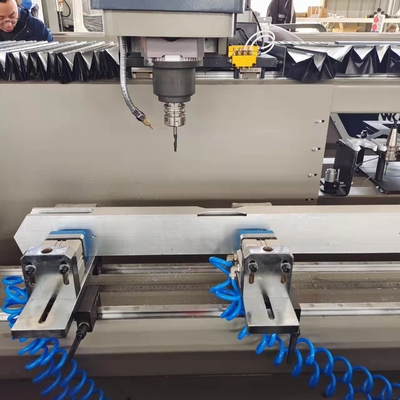

● The worktable is have become 180°, -90°~0°~+90°, the profile can be processed on three aspects at one time. When processing deep through holes (fashioned holes), deep hole processing can be located out via turning the worktable to beautify overall performance and pinnacle quality. .

Optional:

• Automatic Moving Clamps

•
• Optional length on coordinate axis will running with 2500mm 3200mm 5500mm 6000mm etc
•

• Barcode reader

2. Specification and Parameter

3. Sample After processing:

Q1: How to work with aluminum machining center?

Q2: How to set up XYZ start position?

Q3: How to adjust aluminum machining center after got machine?

Q4: How does the aluminum machining center work?

Answers: Pls contact me for details, Will sent you detailed videos for aluminum cnc machining center.
