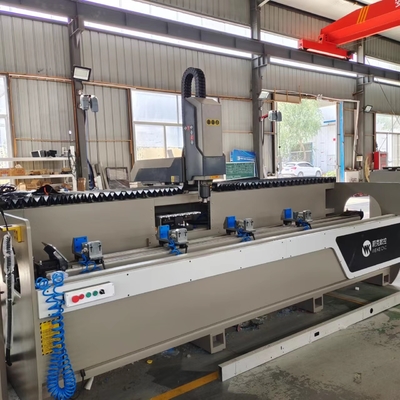

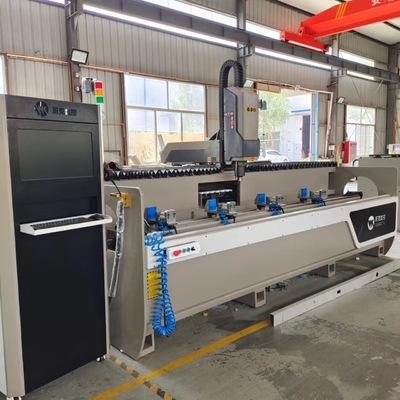

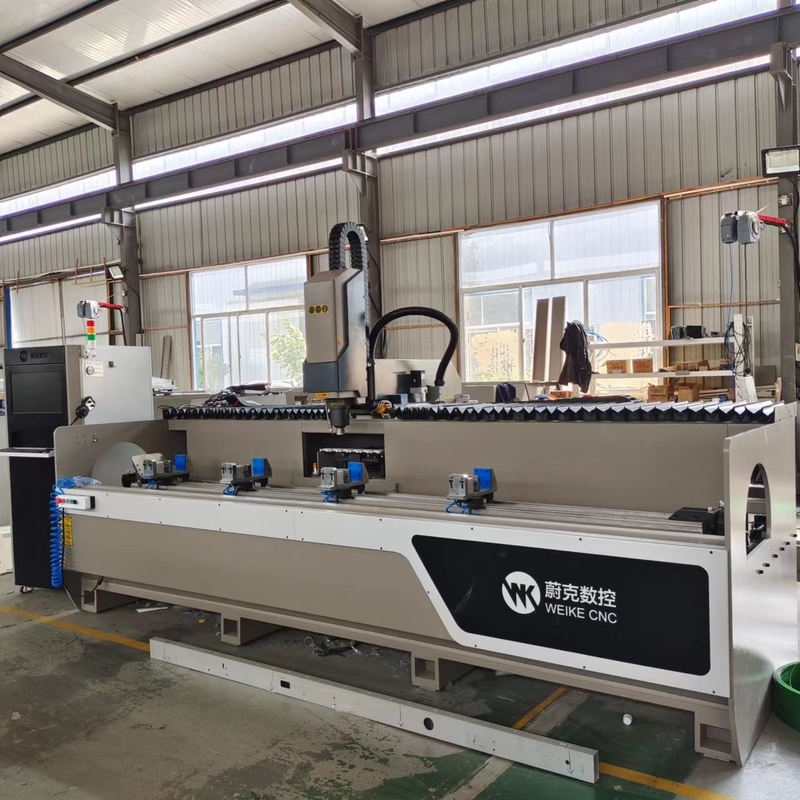

CNC Machine For Aluminium Windows And Doors

                                 3200mm ATC Aluminum Profile CNC Machining Center

Working center for aluminium profiles with 3 controlled, fully automatic management of machining such as drilling, milling,tapping, grooving, notching,saw milling etc.

1. Main Feature For Aluminium Drilling Milling Machines

● The working table is rotated 180°, 90°~0°~+90°, the profile can be processed on three sides at the same time.When processing deep through holes (shaped holes), deep hole processing can be performed by rotating the work table to improve efficiency and good quality. .

● Standard 6-bit/8-bit tool magazine can realize continuous and uninterrupted machining.

● An automatic mercury oil supply system is introduced, and the tailor adopts a spray cooling device controlled by the system.

● The main parts of the machine tool are of steel construction, all of which have undergone vibration aging and stress relief treatment.

● It is suitable for processing round hole, oblong hole, keyhole, special shape hole of industrial aluminum alloy profile, door and window, curtain wall aluminum alloy profile and aluminum profile milling, chamfering, flat engraving and other processes.

● The main shaft uses an Italian air-cooled electric main shaft with a power of 9 kW and a speed of 24000 rpm. It has high precision, good security and high reliability.

● Equipped with professional industrial numerical control system CADCAM programming software, can be connected to domestic and foreign window and door curtain wall software and ERP, import CAD graphics, powerful functions, simple operation and high efficiency.

Standard Features & Equipment:

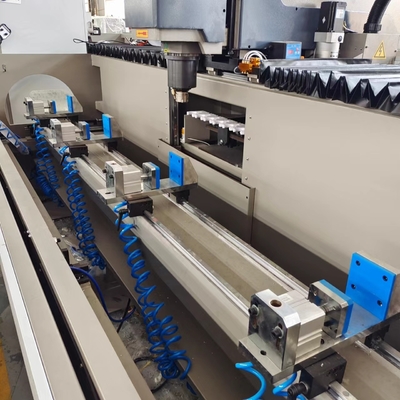

• Equipped with Air Clamps
• Automatic Waylube Lubrication System
• Mist Lubrication System
• Mitsubishi Servo Drives/Motors
• X, Y, and Z-axes are servo controlled
• X-axis working lengths 118 Inches (3m) Option
• Y-axis Travel 11.81 Inches (300mm)
• Spindle Speed 24,000 RPM
• Spindle Motor 9KW
• Tool Holder ER32​

Optional Equipment

• Automatic Moving Fixture

• Optional length on X-axis can working with 2500mm 3200mm 5500mm 6000mm etc

• Barcode reader

2. Specification and Parameter

3. Sample Holes After Working:

Q1: How to work with aluminum machining center?

Q2: How to set up XYZ start position?

Q3: How to adjust aluminum machining center after got machine?

Q4: How does the aluminum machining center work?

Answers: Pls contact me for details, Will sent you detailed videos for aluminum cnc machining center.
