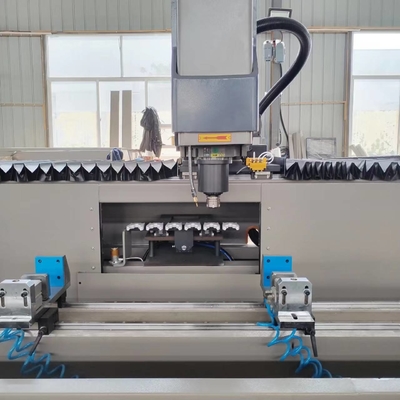

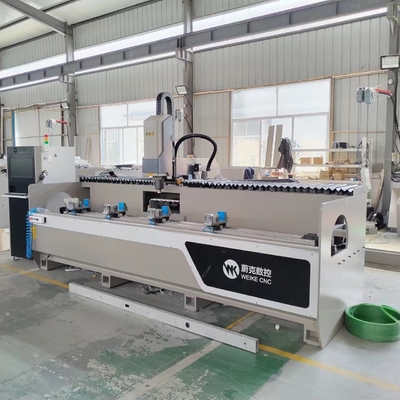

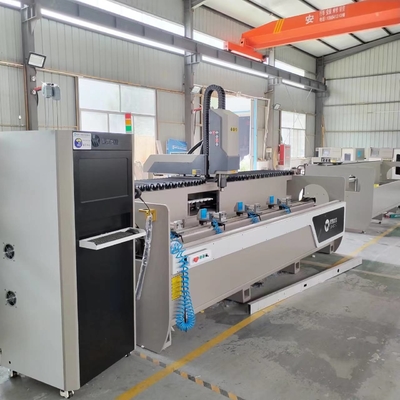

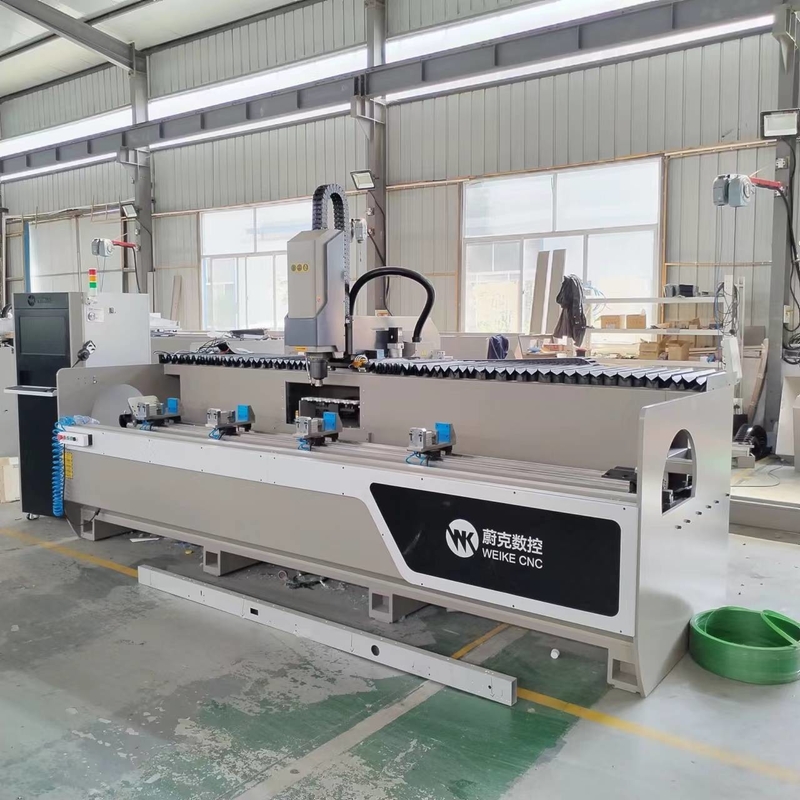

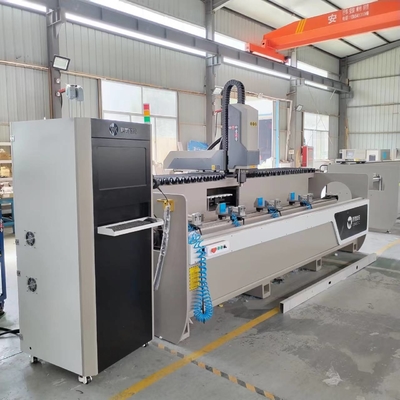

Aluminum Profile Machining Center CNC Automatic Aluminum Drilling Milling Machine

                  3200mm/3000mm ATC Aluminum Profile CNC Machining Center

Working center for aluminium profiles with 3 controlled, fully automatic management of machining such as drilling, milling,tapping, grooving, notching,saw milling etc.

1. Main Feature For Aluminium Drilling Milling Machines

● It is suitable for processing round hole, oblong hole, keyhole, special shape hole of industrial aluminum alloy profile, door and window, curtain wall aluminum alloy profile and aluminum profile milling, chamfering, flat engraving and other processes.

● The main shaft uses an Italian air-cooled electric main shaft with a power of 9 kW and a speed of 24000 rpm. It has high precision, good security and high reliability.

● Equipped with professional industrial numerical control system CADCAM programming software, can be connected to domestic and foreign window and door curtain wall software and ERP, import CAD graphics, powerful functions, simple operation and high efficiency.

● The working table is rotated 180°, 90°~0°~+90°, the profile can be processed on three sides at the same time.When processing deep through holes (shaped holes), deep hole processing can be performed by rotating the work table to improve efficiency and good quality. .

● The wellknown 6-bit/8-bit device mag can recognize non-stop and uninterrupted machining.

● The computerized mercury oil deliver device is adopted, and the cutter adopts a device-managed spray cooling device.

● The foremost components of the gadget device undertake metal structure, all of that have passed through vibration growing old and pressure alleviation treatment.

Standard Features & Equipment:

• Working lengths X axis 3 m (118 inch) Option
• Travel Y axis 300 mm (11.81 inch)
• Spindle speed 24,000 rpm
• Spindle motor 9 KW
• Tool holder ER32
• Equipped with air clamps
• Waylube Auto Lube System
• Mist lubrication system
• Mitsubishi Servo drives/motors
• X, Y and Zaxe are servo controlled​

Optional Equipment

• Automatic Moving Fixture

• elective length on coordinate axis will operating with 2500mm 3200mm 5500mm 6000mm etc

• Barcode reader

2. Specification and Parameter

3. Sample Holes After Working:

Q1: How to work with aluminum machining center?

Q2: How to set the XYZ home position?

Q3: How to adjust the aluminum machining center after receiving the machine?

Q4: How does the aluminum machining center work?



replies: Please contact me for details, Will send you aluminum CNC machining center detailed videos.
