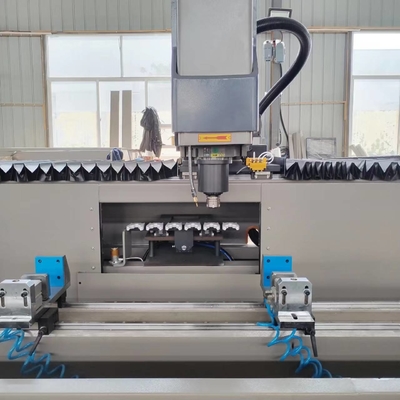

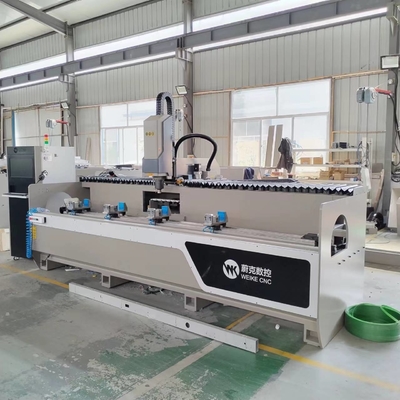

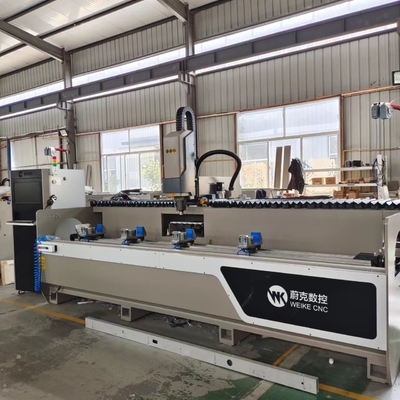

Aluminum Profile 3+1 CNC Machining Centres working length is 3200mm with automatic tool changer

                  3200mm/3000mm ATC Aluminum Profile CNC Machining Center

Working center for metal profiles with 3 controlled, totally automatic management of machining cherish drilling, edge,tapping, grooving, notching,saw milling etcetera

1. Main Feature For Aluminium Drilling Milling Machines

● Equipped with skilled CAD-CAM programming code for industrial numerical management system, it will be connected to domestic and foreign door and window curtain wall software and ERP, CAD graphics import, powerful functions, straightforward operation and high potency.

● it's appropriate for the process of spherical holes, slot holes, key holes, special-shaped holes of commercial aluminium alloy profiles, doors associate degreed windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and alternative processes.

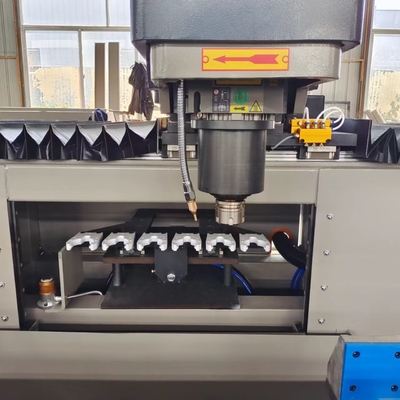

● the most shaft adopts an Italian cool main shaft with an influence of 9KW and a rotation speed of 24000 revolutions/min. it's high precision, smart safety and high reliability.

● The table is turned 180°, -90°~0°~+90°, the profile will be processed on 3 sides at one time. once process deep through holes (shaped holes), deep hole processing will be realised by turning the worktable to enhance efficiency and smart quality. .

● the most elements of the machine adopt steel structure, all of which have undergone vibration aging and stress relief treatment.

● the automated mercury oil offer system is adopted, and therefore the cutter adopts a system-controlled spray cooling device. the quality 6-bit/8-bit tool magazine can notice continuous and uninterrupted machining.

Standard Features & Equipment:

• X-axis working lengths 118 Inches (3m) Option
• Y-axis Travel 11.81 Inches (300mm)
• Spindle Speed 24,000 RPM
• Spindle Motor 9KW
• Tool Holder ER32
• Equipped with Air Clamps
• Automatic Waylube Lubrication System
• Mist Lubrication System
• Mitsubishi Servo Drives/Motors
• X, Y, and Z-axes are servo controlled​

Optional Equipment

• Automatic Moving Fixture

• Optional length on X-axis can working with 2500mm 3200mm 5500mm 6000mm etc

• Barcode reader

2. Specification and Parameter

3. Sample Holes After Working:

Q1: How to work with aluminum machining center?

Q2: How to set up XYZ start position?

Q3: How to adjust aluminum machining center after got machine?

Q4: How does the aluminum machining center work?

Answers: Pls contact me for details, Will sent you detailed videos for aluminum cnc machining center.
