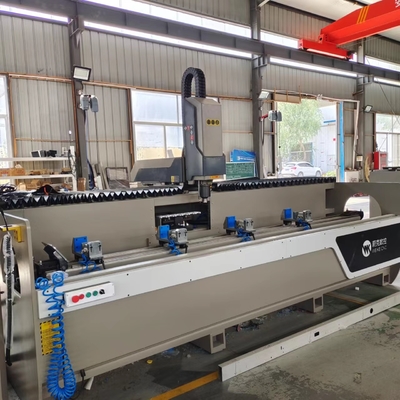

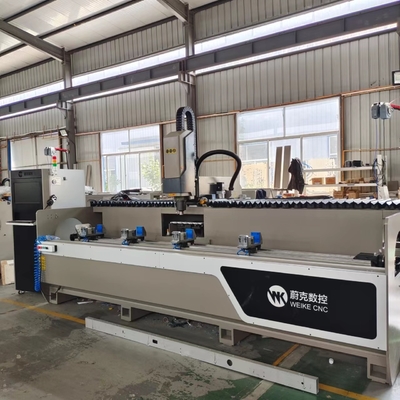

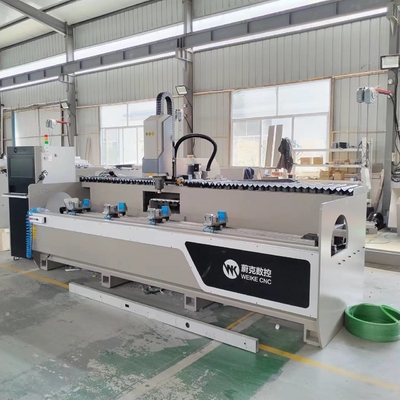

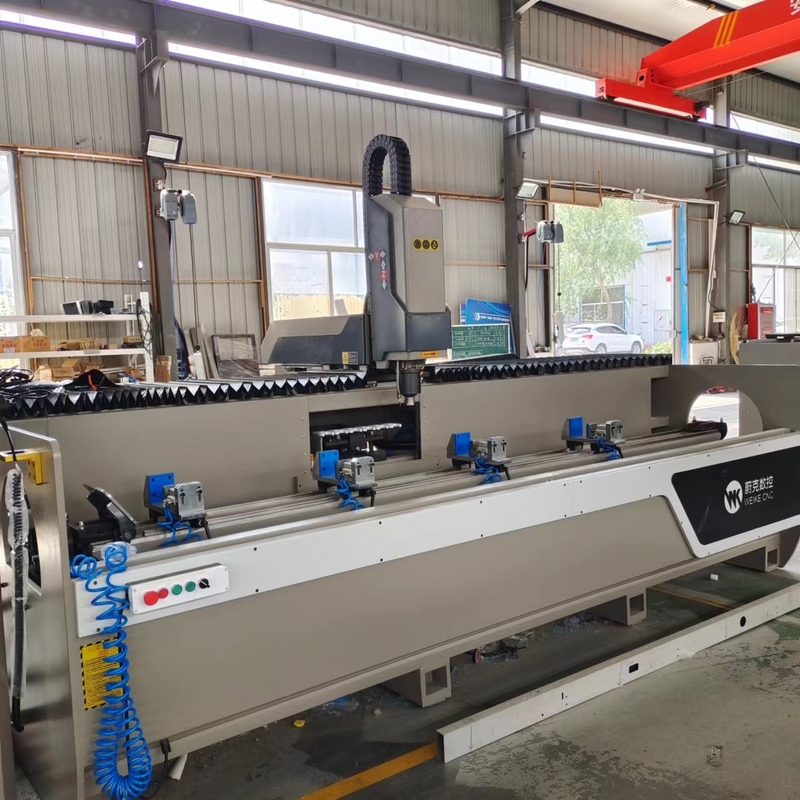

Automatic Curtain Wall Machine Aluminium Grooving Machine

                   3200mm/3000mm ATC Aluminum Profile CNC Machining Center

Working middle for aluminium profiles with three controlled, absolutely automated control of machining together with drilling, milling,tapping, grooving, notching,noticed milling etc.

1. Main Feature For Aluminium Drilling Milling Machines

● It is appropriate for the processing of spherical holes, slot holes, key holes, special-fashioned holes of commercial aluminum alloy profiles, doorways and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, aircraft engraving and different processes.

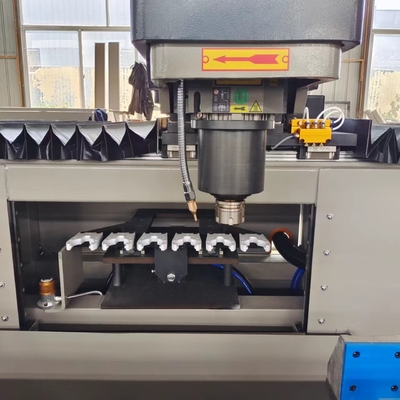

● The fundamental shaft adopts an Italian air-cooled electric powered fundamental shaft with a strength of 9KW and a rotation pace of 24000 revolutions/min. It has excessive precision, true protection and excessive reliability.

● Equipped with expert CAD-CAM programming software program for commercial numerical manipulate gadget, it is able to be linked to home and overseas door and window curtain wall software program and ERP, CAD images import, effective functions, easy operation and excessive performance.

● The worktable is grew to become 180°, -90°~0°~+90°, the profile may be processed on 3 aspects at one time. When processing deep via holes (fashioned holes), deep hollow processing may be found out via way of means of turning the worktable to enhance performance and true quality. .

● The wellknown 6-bit/8-bit device mag can recognize non-stop and uninterrupted machining.

● The automated mercury oil deliver gadget is adopted, and the cutter adopts a gadget-managed spray cooling device.

● The fundamental elements of the device device undertake metallic structure, all of that have gone through vibration ageing and strain alleviation treatment. Standard Features & Equipment: X-axis operating lengths 118 Inches (3m) Option Y-axis Travel 11.eighty one Inches (300mm) Spindle Speed 24,000 RPM Spindle Motor 9KW Tool Holder ER32 Equipped with Air Clamps Automatic Waylube Lubrication System Mist Lubrication System Mitsubishi Servo Drives/Motors X, Y, and Z-axes are servo managed

​

Optional Equipment

• Automatic Moving Fixture

• Optional period on X-axis can running with 2500mm 3200mm 5500mm 6000mm etc

• Barcode reader

2. Specification and Parameter

3. Sample Holes After Working:

Q1: How to paintings with aluminum machining middle?

Q2: How to installation XYZ begin position?

Q3: How to regulate aluminum machining middle after were given machine?

Q4: How does the aluminum machining middle paintings?

Answers: Pls touch me for details, Will despatched you certain films for aluminum cnc machining middle.
