Aluminum Automatic CNC Drilling Milling Cutting Tapping Machine For Industry Aluminium Material

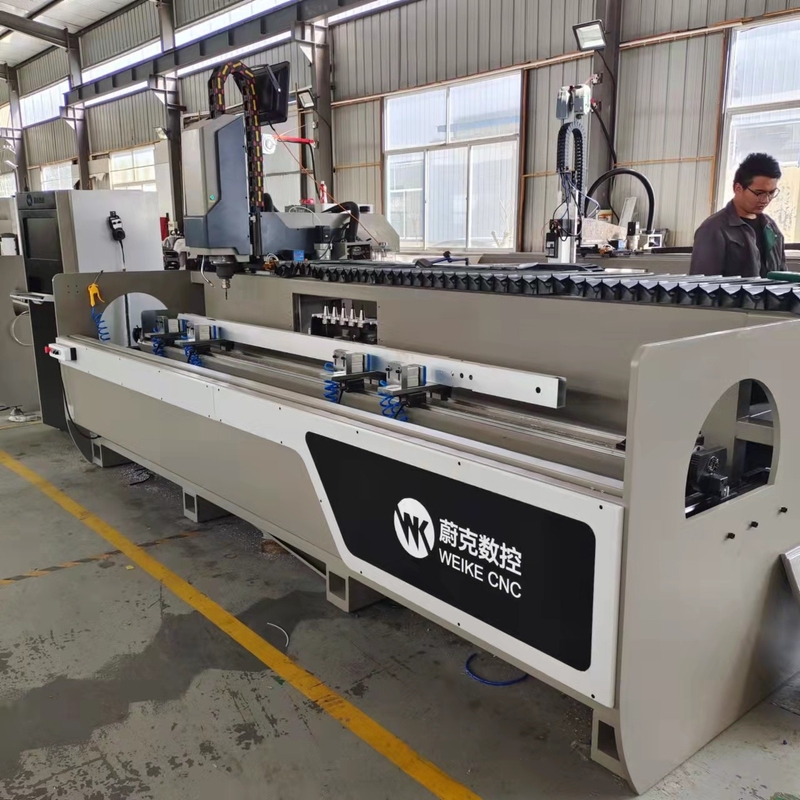

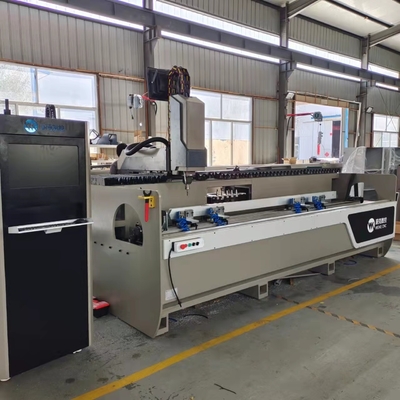

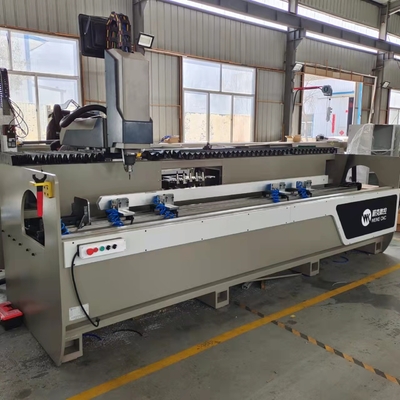

                  3200mm/3000mm ATC Aluminum Profile CNC Machining Center

Working center for aluminium profiles with 3 controlled, fully automatic management of machining such as drilling, milling,tapping, grooving, notching,saw milling etc.

1. Main Feature For Aluminium Drilling Milling Machines

● It is suitable for the processing of round holes, slot holes, key holes, special-shaped holes of industrial aluminum alloy profiles, doors and windows, curtain wall aluminum alloy profiles, and aluminum profile milling, chamfering, plane engraving and other processes.

● The main shaft adopts an Italian air-cooled electric main shaft with a power of 9KW and a rotation speed of 24000 revolutions/min. It has high precision, good safety and high reliability.

● Equipped with professional CAD-CAM programming software for industrial numerical control system, it can be connected to domestic and foreign door and window curtain wall software and ERP, CAD graphics import, powerful functions, simple operation and high efficiency.

● The worktable is turned 180°, -90°~0°~+90°, the profile can be processed on three sides at one time. When processing deep through holes (shaped holes), deep hole processing can be realized by turning the worktable to improve efficiency and good quality. .

● The standard 6-bit/8-bit tool magazine can realize continuous and uninterrupted machining.

● The automatic mercury oil supply system is adopted, and the cutter adopts a system-controlled spray cooling device.

● The main parts of the machine tool adopt steel structure, all of which have undergone vibration aging and stress relief treatment.

Standard Features & Equipment:

• X-axis working lengths 118 Inches (3m) Option
• Y-axis Travel 11.81 Inches (300mm)
• Spindle Speed 24,000 RPM
• Spindle Motor 9KW
• Tool Holder ER32
• Equipped with Air Clamps
• Automatic Waylube Lubrication System
• Mist Lubrication System
• Mitsubishi Servo Drives/Motors
• X, Y, and Z-axes are servo controlled​

Optional Equipment

• Automatic Moving Fixture

• Optional length on X-axis can working with 2500mm 3200mm 5500mm 6000mm etc

• Barcode reader

2. Specification and Parameter

3. Sample Holes After Working:

Q1: How to work with aluminum machining center?

Q2: How to set up XYZ start position?

Q3: How to adjust aluminum machining center after got machine?

Q4: How does the aluminum machining center work?

Answers: Pls contact me for details, Will sent you detailed videos for aluminum cnc machining center.
