Product Details:
|
| X-way Range: | 7000mm | Y-way Range: | 1000mm |
|---|---|---|---|
| Z-way Range: | 550mm | B Axis Rotatio±185°n Range: | +-185 Degree |
| C Axis Rotation Range: | +- 320 Degree | ||
| Highlight: | Aluminium 5 Axis Cnc Machining Center OSAI,550mm Aluminium 5 Axis Cnc Machining Center,550mm Aluminium Multi Axis Machining Center |
||
PRODUCT DESCRIPTION
This system is designed for computerized cutting, milling, drilling, cease face milling, tenon milling, Key holes milling, slots, walking trough, set up holes and different multi-method processing to meet customers' necessities for doors, windows, curtain walls, and solar rooms and enterprise aluminum.
Have RTCP function
Main Feature
●The pneumatic clamping workbench is used to boom the loading and unloading speed. Optional T-formed workbench.
●Adopt protection safety feature to make certain protection.
●The use of transferring beam and transferring column gantry body shape makes the operation extra solid and improves the processing stress of the device device.
●High-best imported servo motors, ball screws, linear manual pairs and bearings are used to make certain that the gadget has excessive processing accuracy, excessive balance and reliability. The feed motion is pre-stretched to make certain the stableness of the machining accuracy.

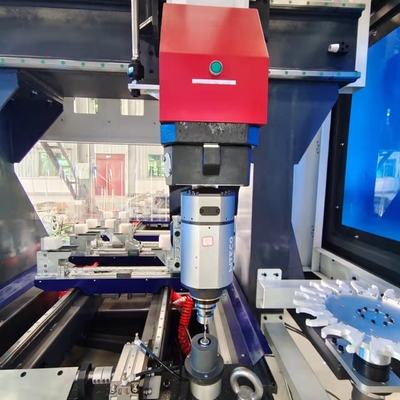

●This device adopts an imported five-axis milling head, that may entire any perspective processing on all surfaces besides the lowest surface. Row device kind computerized device change, elective vertical disc kind device magazine.
●The centralized computerized feed lubrication approach with quantitative timing guarantees the stableness of the device device accuracy.
●The device can comprehend the clamping of uncooked substances at one time, and in keeping with the processing needs, it may entire the cutting, milling quit face tenon, milling key hollow slot, strolling trough, air strain stability hollow, installation hollow and different multi-manner processing to fulfill customers' necessities for doors, windows, curtain walls, and solar rooms. , Personalized customization of commercial aluminum profiles.
●It is appropriate for the processing of complicated components inclusive of diverse aluminum, copper, PVC, and commercial profiles.
| X-way range | 7000mm (Option) |
| Y-way range | 1000mm |
| Z-way range | 550mm |
| B axis rotation range | +-185 |
| C axis rotation range | +-320 |
| Spindle speed | 24000r/mln |
| Power | 12KW |
| SptitSe taper | HSK-63F |
| Tool storerocm type | ESS |
| Tool magazine capacity | 12 |
| Lubricating system | Automatic |
| X-way moving speed | O~60n/mln |
| Y/Z-way moving speed | 0~30m/mln |
| B axis working speed | Max. 7 |
| C axis working speed | Max. 7 |
| Voltage | 380V/50HZ |
| Air pressure | 0.5~0.8MPa |
| Ftoor space | 9500x3000mm |

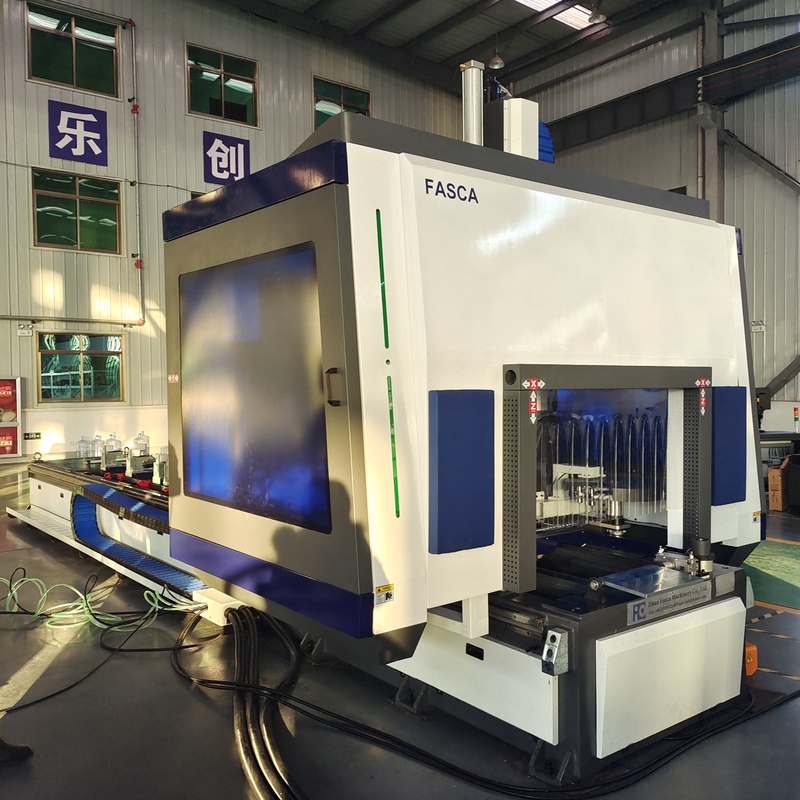

Machine Details:
