7000mm Aluminum Profile 4 Axis CNC Machining Center Automatic Drilling Milling Holes On Aluminum Profile

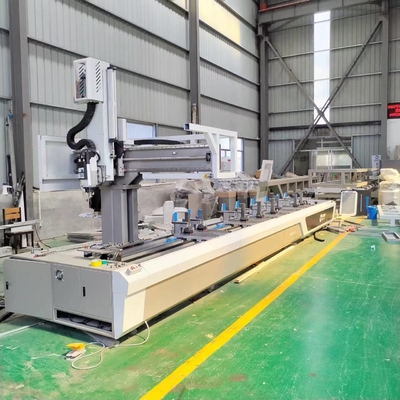

             Aluminum Profile 4 Axis CNC Machining Center

 The 4 machining centre with 4 axes has been designed to carry out drilling and milling operations on aluminium or steel profiles. Because of the solutions used in its construction, WSJ4 is suitable to machine large section profiles. The 24,000 rpm, 9.6 kW electrospindle allows removal of a significant amount of chips and high machining speeds.

1. Main Feature

● The machine can realize the clamping of raw materials at one time, and according to the processing needs, it can complete the cutting, milling end face tenon, milling key hole slot, running trough, air pressure balance hole, installation hole and other multi-process processing to meet customers' requirements for doors, windows, curtain walls, and sun rooms. , Personalized customization of industrial aluminum profiles.For a variety of aluminum, copper, PVC, industrial profiles and other complex parts processing.

● The machine is equipped with an industrial numerical control system, dedicated CAD-CAM editing software for three-dimensional modeling display, automatic tool setting, which can optimize the travel path. It can complete continuous automatic milling of different specifications and sizes of profiles, with powerful functions. CAD drawings can be imported into the system for convenient and simple, and can be equivalent to domestic and foreign doors, windows, and curtain wall system software.

● High-quality bus servo motors, ball screws, linear guides and bearings are used to ensure that the equipment has high processing accuracy, high stability and reliability. The feed movement is pre-stretched to ensure the stability of the machining accuracy.

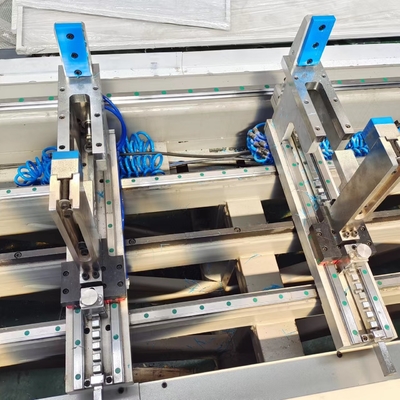

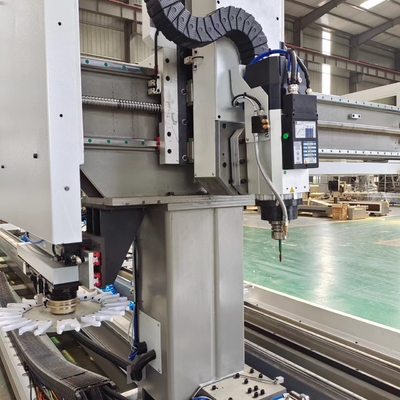

●Fixture automatic optimisation function, automatic dodging or early warning process once the clamping position interferes with the processing position.  The left and right divided layout, with 2 positioning plates on the left and right, can complete interactive feeding no end the machine and improve processing efficiency. This machine adopts high-speed electrical spindle foreign from Italy, which may complete the processing of any angle on the opposite 3 sides except the bottom. Vertical disc sort tool magazine (12 positions).

● The centralized automatic feed lubrication methodology with quantitative temporal arrangement ensures the steadiness of the machine accuracy and automatic small atomization cooling. The gas clamping worktable is adopted to extend the loading and unloading speed.cessing position.

2.  Samples Holes After Working:

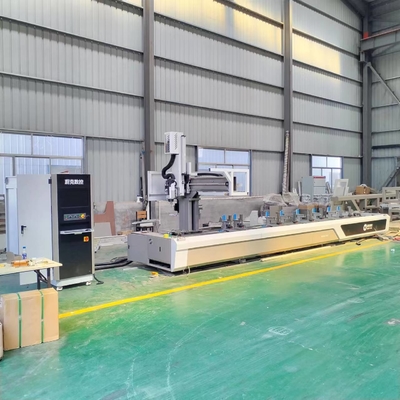

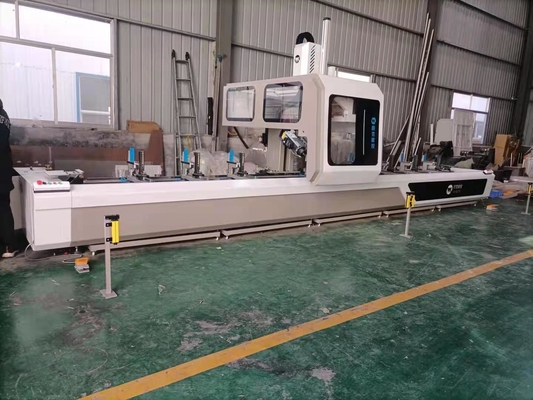

3.  Machine Details

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.
