Aluminium Profile 4 Axis CNC Machining Centre Automatic controlled with 4 axes for curtain wall factory

             Aluminum Profile 4 Axis CNC Machining Center

The 4 machining centre with 4 axes has been designed to carry out drilling and milling operations on aluminium or steel profiles. Because of the solutions used in its construction, WSJ4 is suitable to machine large section profiles. The 24,000 rpm, 9.6 kW electrospindle allows removal of a significant amount of chips and high machining speeds.

1. Main Feature

● The single-arm frame structure with moving beam and moving column is adopted, which makes the operation more stable and improves the processing rigidity of the machine tool.

● High-pleasant bus servo motors, ball screws, linear courses and bearings are used to make sure that the device has excessive processing accuracy, excessive balance and reliability. The feed motion is pre-stretched to make sure the stableness of the machining accuracy.

●Fixture automated optimization function, automated avoidance or early caution processing whilst the clamping function interferes with the processing function.

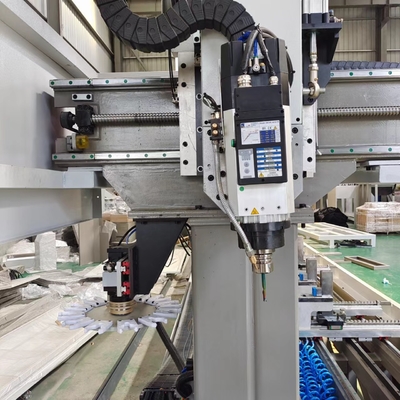

● This device adopts excessive-velocity electric powered spindle imported from Italy, that could entire the processing of any attitude on the opposite 3 facets besides the bottom. Vertical disc kind device magazine (12 positions).

● The centralized automated feed lubrication technique with quantitative timing guarantees the stableness of the device device accuracy and automated micro atomization cooling. The pneumatic clamping workbench is followed to growth the loading and unloading velocity.

● The fuselage adopts grating safety protection function to ensure safe operation.

2.  Samples Holes After Working:

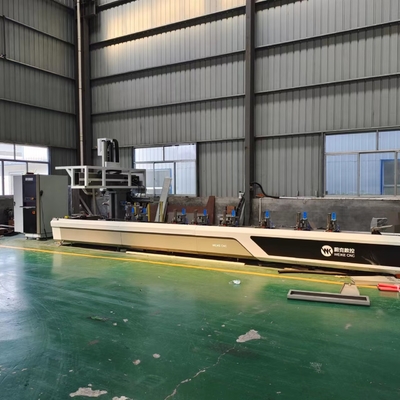

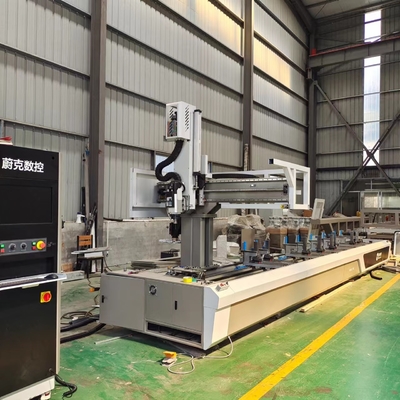

3.  Machine Details

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Contact Us For More Information:

4. Questions:

4.1 Why called 4 Axis CNC Machining Center?

4.2 How this 4 Axis CNC Machining Center working?

4.3 Why have to match RTCP function?

4.4 Have any other machines?

Answers: For all those answers, pls contact us, We will sent you machine videos. Thanks
