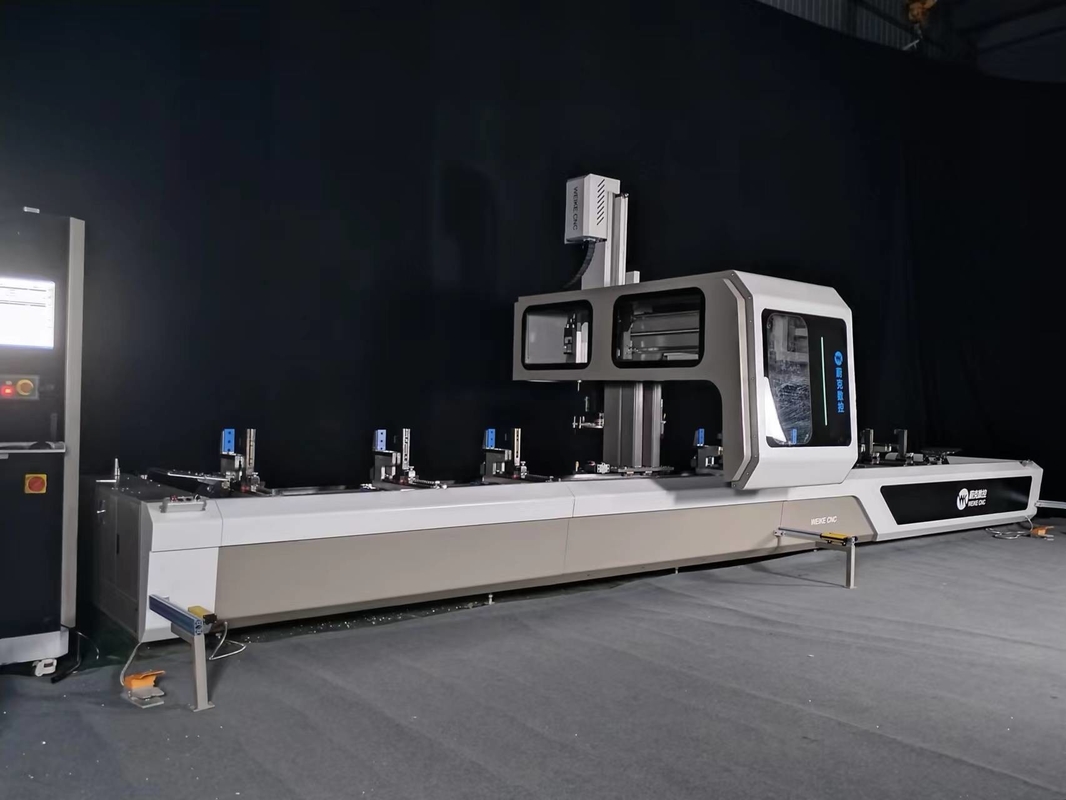

7000mm Cnc Aluminum Cutting Saw Machine RTCP Curtain Wall Machine

             Aluminum Profile 4 Axis CNC Machining Center

                        Drilling Milling Tapping Cutting End Milling on Alu Profile

                              Automatic Tool Changer with 12 sets tools

                            Spindle turn to -90 to +90 degree any angle

                                          With RTCP Function

                                         Double Working Area

1. Main Feature

● The machine can realize the clamping of raw materials at one time, and according to the processing needs, it can complete the cutting, milling end face tenon, milling key hole slot, running trough, air pressure balance hole, installation hole and other multi-process processing to meet customers' requirements for doors, windows, curtain walls, and sun rooms. , Personalized customization of industrial aluminum profiles.For a variety of aluminum, copper, PVC, industrial profiles and other complex parts processing.

● The machine is supplied with an industrial numerical management system, dedicated CAD-CAM piece of writing software package for three-dimensional modeling display, automatic tool setting, which might optimize the travel path. It can complete continuous automatic edge varied} specifications and sizes of profiles, with powerful functions. CAD drawings may be foreign into the system for convenient and simple, and might be such as domestic and foreign doors, windows, and curtain wall system software. It is appropriate for the process of advanced elements such as various aluminum, copper, PVC, industrial profiles, building curtain walls, and sun rooms.

● The single-arm frame structure with moving beam and moving column is adopted, that makes the operation additional stable and improves the process rigidity of the machine tool.  High-quality bus servo motors, ball screws, linear guides and bearings are wont to make sure that the instrumentality has high processing accuracy, high stability and reliability. The feed movement is pre-stretched to confirm the soundness of the machining accuracy.

●Fixture automatic optimization function, automatic avoidance or early warning processing when the clamping position interferes with the processing position.

● The left and right partitioned layout, with two positioning plates on the left and right, can complete interactive feeding without stopping the machine and improve processing efficiency.

● This machine adopts high-speed electric spindle imported from Italy, which can complete the processing of any angle on the other three sides except the bottom. Vertical disc type tool magazine (12 positions).

● The centralized automatic feed lubrication method with quantitative timing ensures the stability of the machine tool accuracy and automatic micro atomization cooling.

2.  Samples Holes After Working:

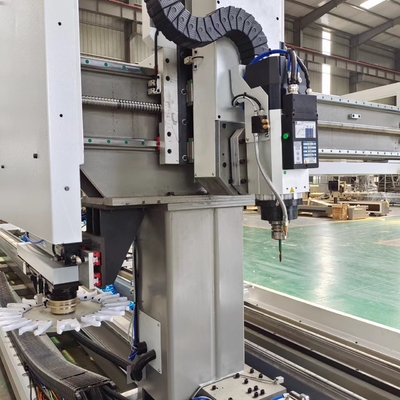

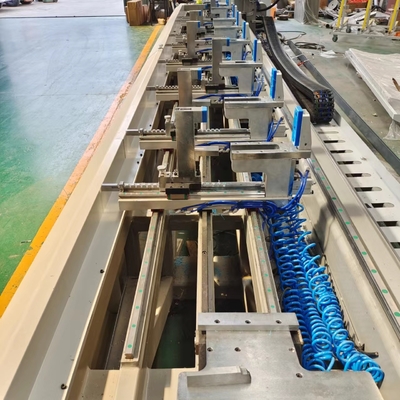

3.  Machine Details

4. Provide Service:

1. Provide free training when come to factory study

2. If need engineer go to oversea training: Client afford transportation and accommodation, Engineer salary is 100USD/Day

Because of Covid-19, we can also provide:

1. Before delivery: Machine operate manual, program software user manual as well as Chinese and English videos

2. Before delivery: Face to face video training online between your operator and our engineer (Can speak English)

3. After delivery: Will video guild you how to install and adjust machine. Also we can online control your machine to show you how to work.

Contact Us For More Information:

4. Questions:

4.1 Why called 4 Axis CNC Machining Center?

4.2 How this 4 Axis CNC Machining Center working?

4.3 Why have to match RTCP function?

Answers: For all those answers, pls contact us, We will sent you machine videos. Thanks
